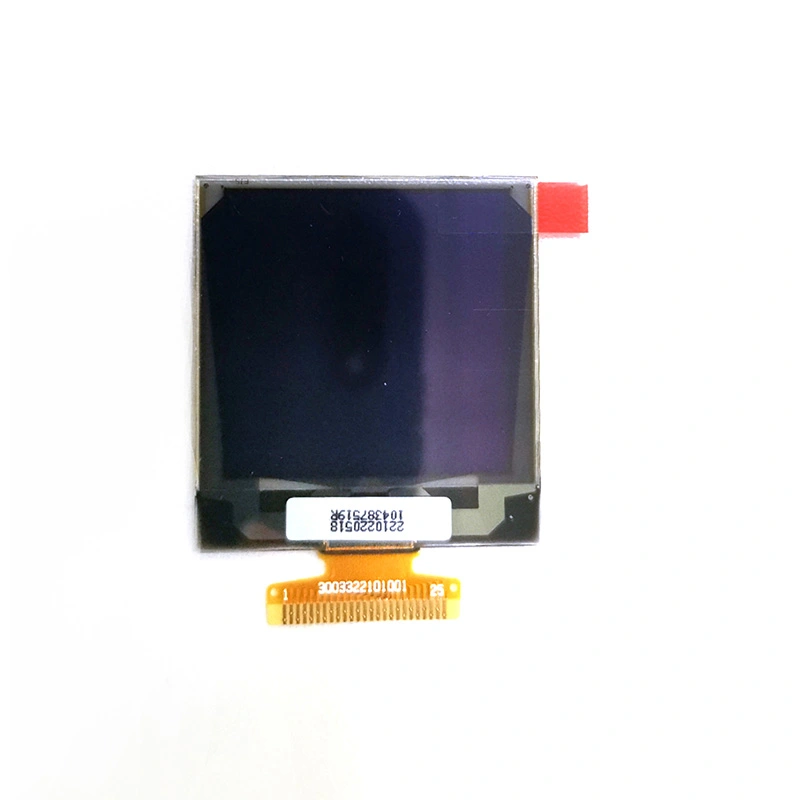

1.5 Inch 128*128 IPS OLED Display Module

Kingtech 1.5 inch 128*128 IPS OLED display module supply very stable. This 1.5 inch supports 8-bits 68XX/80XX Parallel, 3-/4-wire SPI. In addition, the 1.5inch OLED display module brightness is 90nits, and this 1.5 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, we can also be customized capacitive touch according to customer.


  • All/Free/Wide viewing angle/IPS

  • OLED display

  • 128*128

  • Stable supply

  • small / tiny display

  • 8-bits 68XX/80XX Parallel, 3-/4-wire SPI

  • Smart watch/wearable

  • Can custom capacitive

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

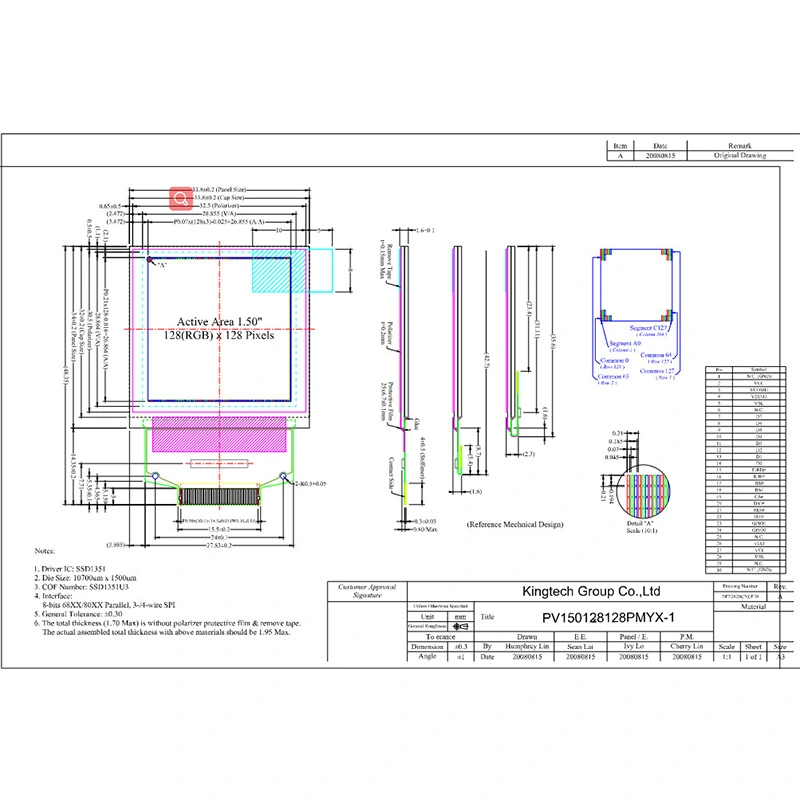

Specification of 1.5 Inch 128*128 IPS OLED Display Module

Item1.5 inch 128*128 OLED display module
Model NoPV150128128PMYX-1
Resolution128*128
Outline Dimension33.80*34.00*1.60
Active Area(mm)26.855 26.864
Driving ICSSD1351
Operating Temperature-30℃~70℃
Storage Temperature-40℃~80℃
Viewing angleALL
Brightness90 nits
Interface8-bits 68XX/80XX Parallel, 3-/4-wire SPI
PIN30
Touch panelCan custom capacitive touch


Application of 1.5 Inch 128*128 IPS OLED Display Module

  • The 1.5 inches 128*128 IPS OLED display module can be used for Smart watch and wearable.
