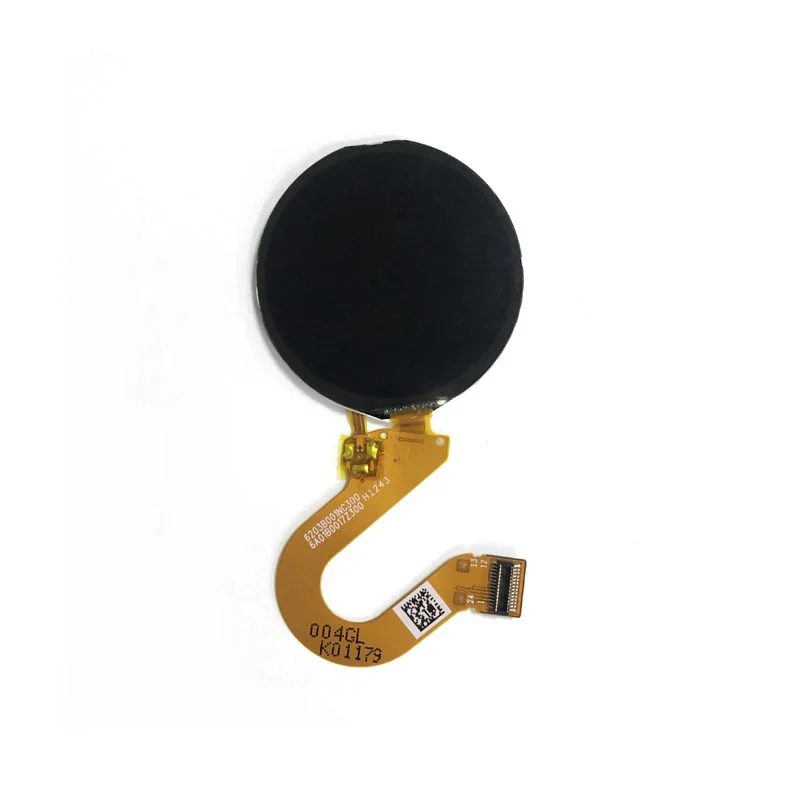

Kingtech 1.19 inch 240*240 IPS round TFT display supply very stable. This 1.19 inch supports RGB Interface. In addition, the 1.19 inch TFT module brightness is 12 nits and LTPS (Memory in Pixel type) technology, and this 1.19 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the display for capacitive touch, can also be customized according to customer.
All/Free/Wide viewing angle/IPS
Round/ circular display
240*240
LTPS (Memory in Pixel type) technology
Stable supply
small / tiny display
RGB Interface
Smart watch/wearable
Can custom capacitive touch
Get a Quote
Documentation
| Item | 1.19 inch 240*240 round display |
| Model No | PV012QT-IEA2401 |
| Resolution | 240 x 240 |
| Display mode | MIP ECB normally black mode |
| Outline Dimension | 33.0*34.47*1.592 |
| Active Area(mm) | φ30.24 |
| Viewing Angle | All |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 12nits |
| Interface | RGB |
| PIN | 24 |
| Touch panel | Can custom capacitive touch |
The 1.19 inch 240*240 IPS TFT Round LCD display can be used for Smart watch and wearable.
