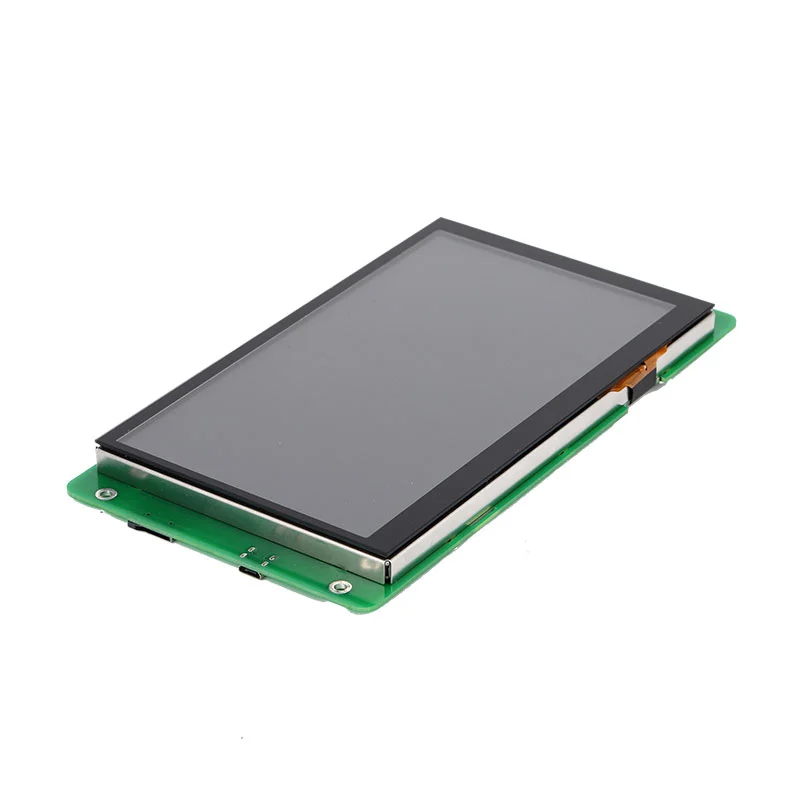

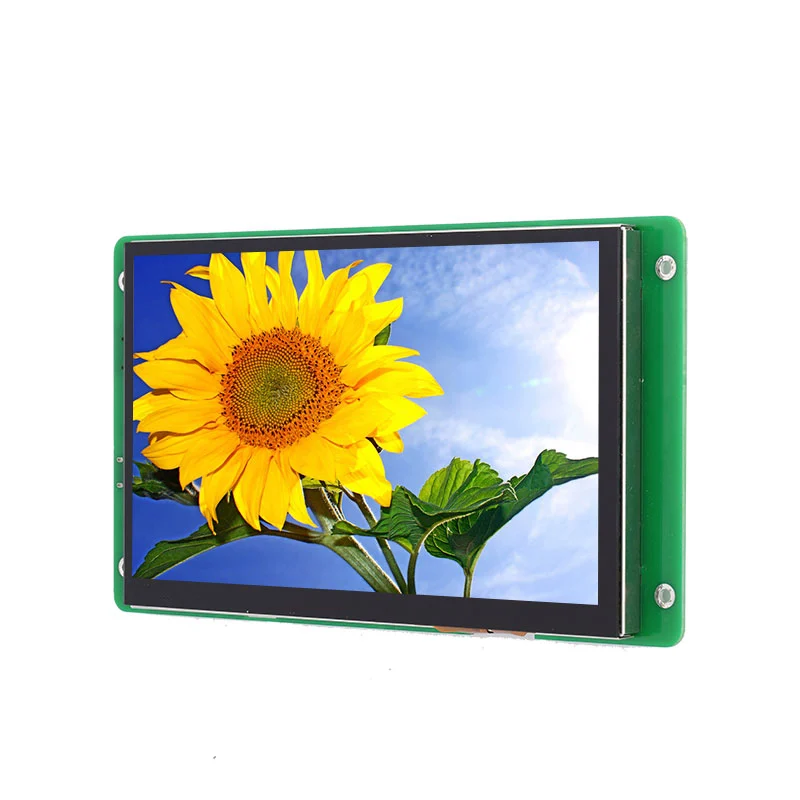

7 inch 800*480 Uart Serial Hmi Displayl Module

Kingtech 7 inch 800*480 Uart Serial Hmi Displayl Module supply very stable. This 7inch WVGA LCD supports RS232 (TTL UART) interface, LT7689 Driver IC. In addition, the 7 inch TFT module brightness is 500nits, and this 7 inch screen is TN Viewing Angle / 6 O’ CLOCK Viewing Angle type. For the touch part, can provide capacitive and resistive touch .


Features of 7 inch 800*480 Uart Serial Hmi Displayl Module

1. Landscape / Horizontal

2. 800*480 / WVGA

3. Stable supply

4. RS232 (TTL UART) interface

5. 500nits brightness/ High brightness / Sunlight readable

6. Provide capacitive touch and resistive touch


Specification of 7 inch 800*480 Uart Serial Hmi Displayl Module


Item7 inch 800*480 Uart Serial Displayl Module
Model NoPVS070800480R001C
Resolution800x480

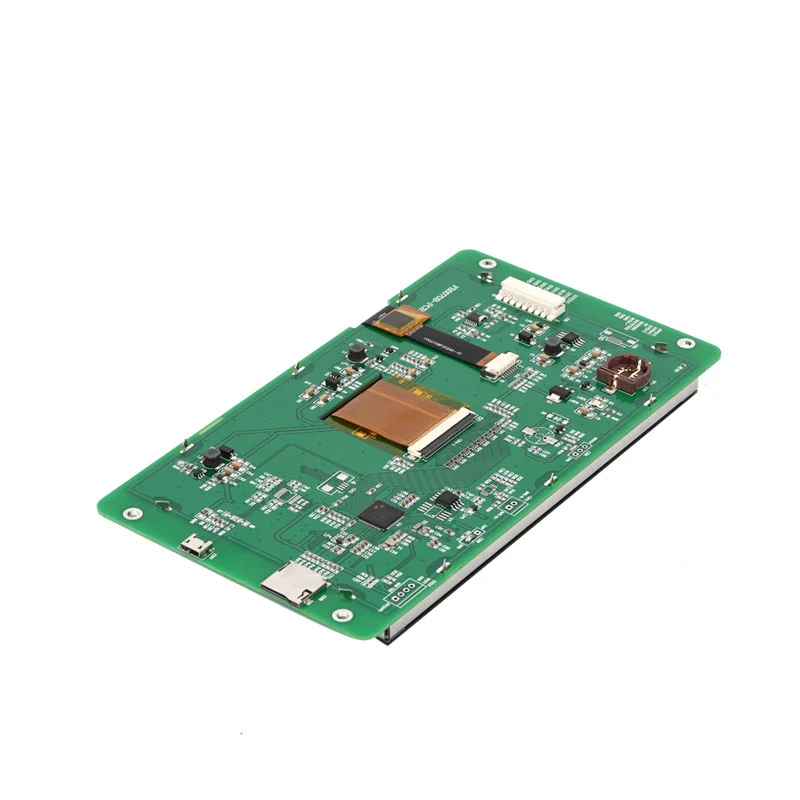

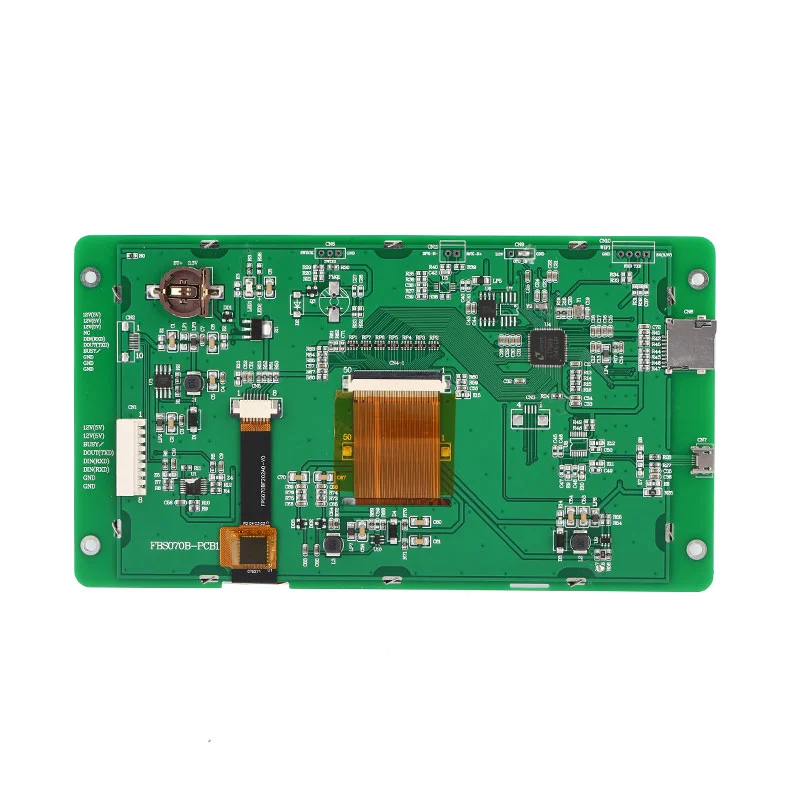

PCBA Outside190.5(W)*105.4(H)*16(T)
Outline Dimension165(W)*100(H)*3.50(T)mm
Active Area(mm)154.08(W)*85.92(H)mm
Viewing Angle6.0' CLOCK/ TN
Driver ICLT7689
InterfaceRS232 (TTL UART)
Input Voltage5.0V or 12V(VDD)
Backlight Luminance500
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenCapacitive touch



Application of 7 inch 800*480 Uart Serial Hmi Displayl Module

The 7 inch 800*480 /WVGA Uart Serial Displayl Module can be used for agricultural equipment, medical device, and smart home etc.



Leave a Message

If you have any questions, please contact us. We’ll do our best to help.

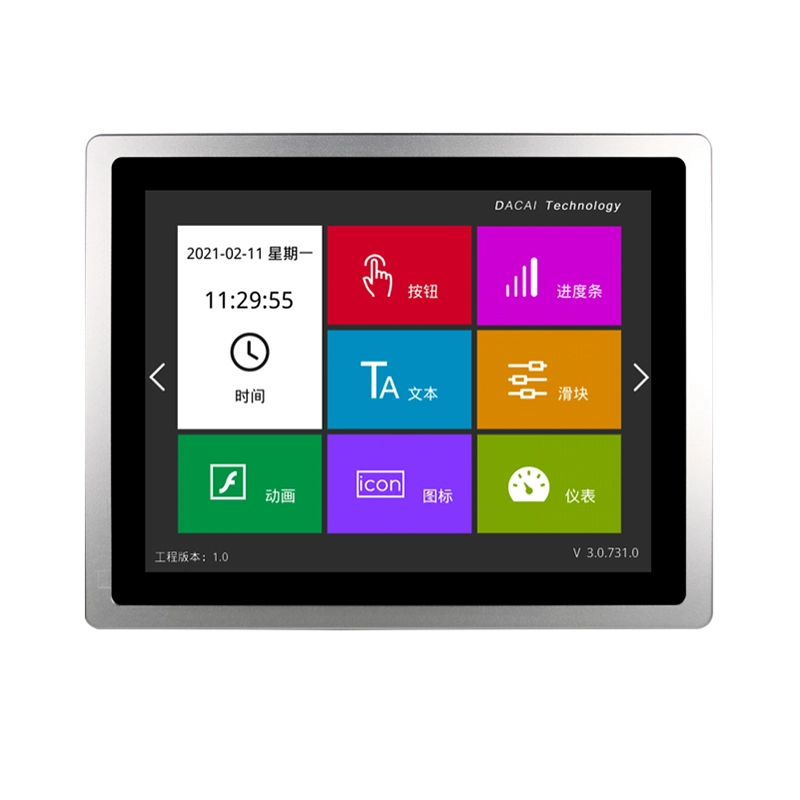

Other Types of UART Serial LCD Module
