Kingtech 2.06 inch 410*502 resolution AMOLED display with stable production. This 2.06 inch AMOLED display supports SPI interface, 500nits high brightness for outdoor, CO5300 driver IC. It is IPS, full/wide/all viewing angle, with better display effect. For the touch part, it with existing capacitive touch panel, we can also customize capacitive and resistive touch according to the customer requirements.
AMOLED
Stable supply
IPS/Full/All/wide view angle
High brightness/Sunlight readable/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation
| Item | 2.06 inch AMOLED LCD display for smart watch |
| Model No. | PV020600J0124A-CO |
| Resolution | 410*502 |

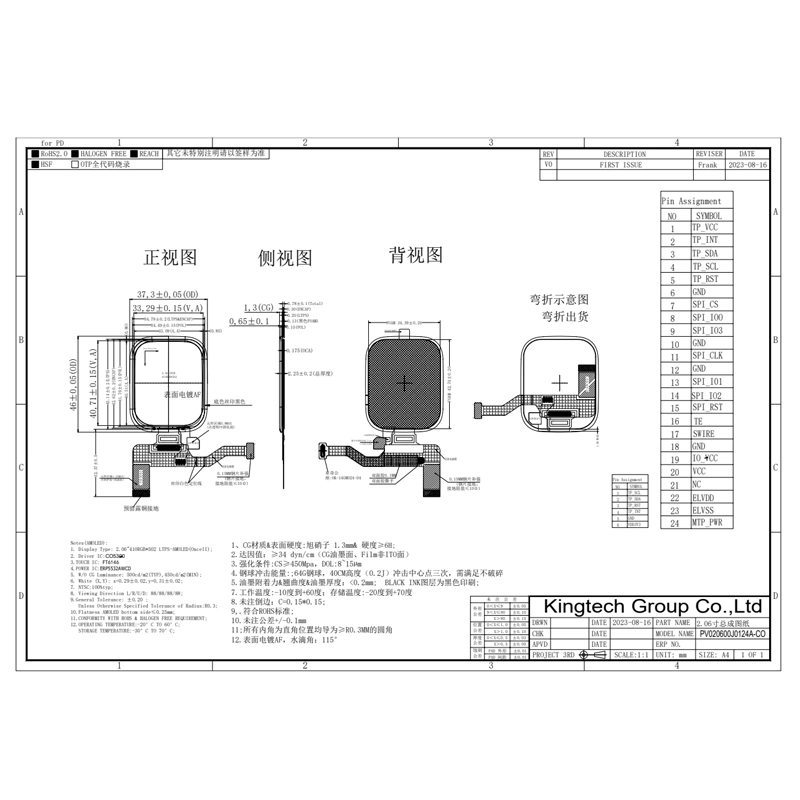

| Outline Dimension (mm) | 37.3*46.0*2.25 |
| Active Area (mm) | 33.09*40.51 |
| Viewing Angle | IPS |
| Brightness | 500nits |
| Interface | SPI |
| Backlight | / |
| Driving IC | CO5300 |
| PIN No. | 24 |
| Operating Temperature | -20~60C |
| Storage Temperature | -30~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, industrial, smart watch |
The 2.06 inch AMOLED can be used for Medical, smart hme, hand-held device, industrial or outdoor device.
