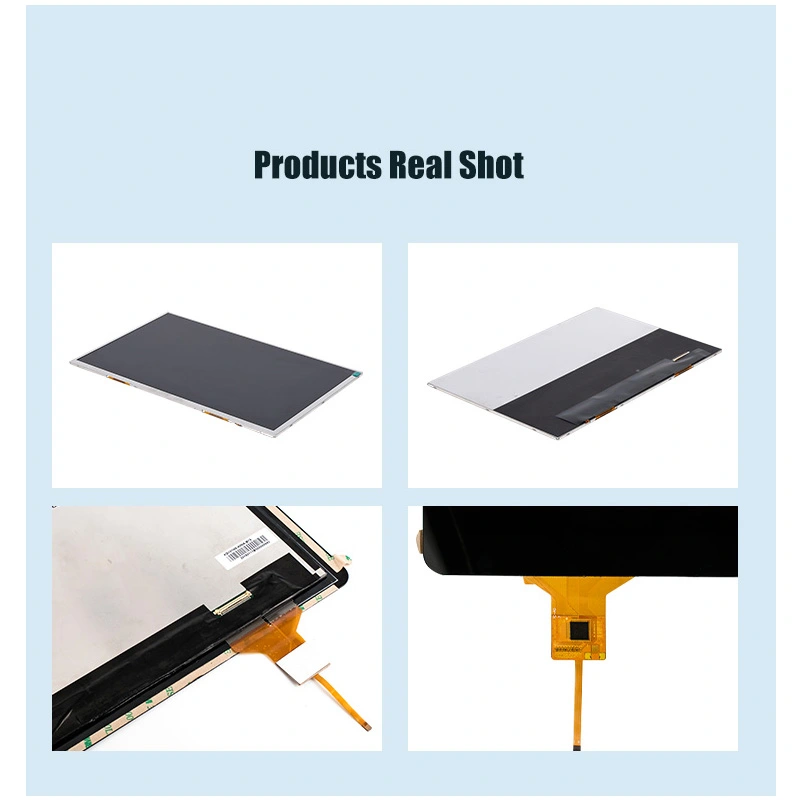

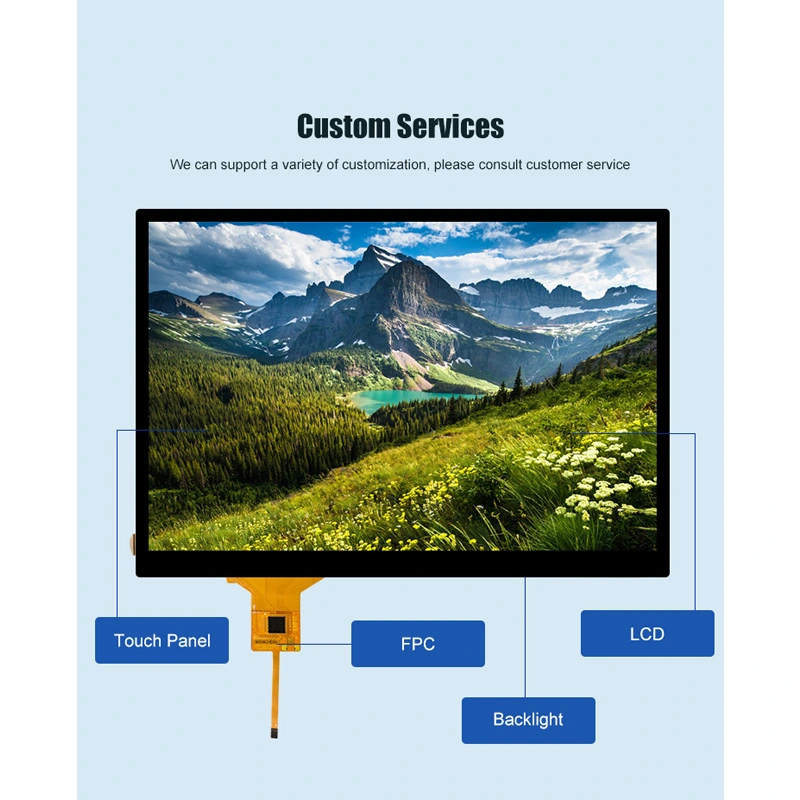

Kingtech PV08415D0120Q is a wide temperature 8.4 inch LCD module using IPS TFT LCD technology. Its LCD panel is with wide temperature special crystal, can work under -30-80 degree. Its resolution is 1024*768dots, providing a very clear and vivid image. With Full Viewing angle, you can see clearly the display from different direction. It support LVDS interface. Its brightness can reach 500nits. The 8inch XGA LCD module designed for harsh environment. Kingtech supports stable supply. And we support LCD display related customization, such as FPC, Backlight, Touch, driver board, etc.
Wide working temperature, -30-80C
Special Size-8.4inch
Landscape, Horizontal
LVDS interface
Full/All/Free/Wide/IPS Viewing angle
Designed for harsh environment
High reliable
Life-time 20000h
Get a Quote
Documentation
| Item | 7.0inch TN 800*480 TFT display |
| Model No. | PV07073D0140A-R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 164.90*100.00*4.95 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | 12 O'clock |
| Brightness | 330nits |
| Interface | RGB |
| Backlight | 7*3LED |
| Driving IC | HX8264E &HX8664B |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |

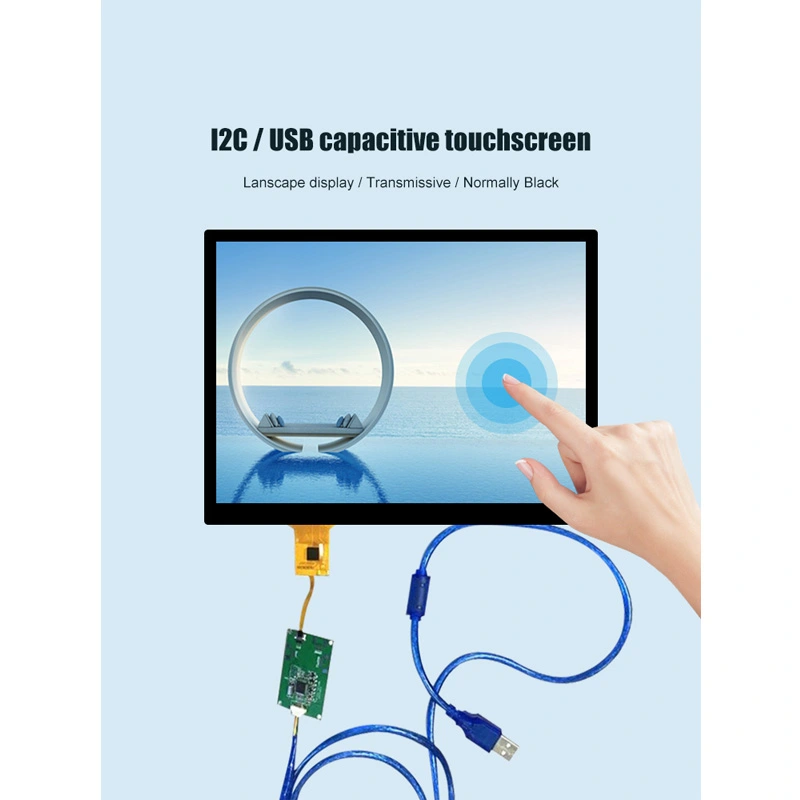

| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
It is applicable for Outdoor application, Surveillance video, Transportation Camera, Automotive, Harsh environment.
