Kingtech 2.4 inch 240*320 resolution TFT LCD display. It with stable production. This 2.4 inch TFT LCD module supports 4 Line SPI interface, ST7789V driver IC and 280nits. The 2.4inch QVGA LCD module with 12 O'clock viewing angle. Mainly application for Smart home, medical, industrial. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD DISPLAY
240*320/QVGA
Stable supply
12 O'clock viewing angle
4 Line SPI interface
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation

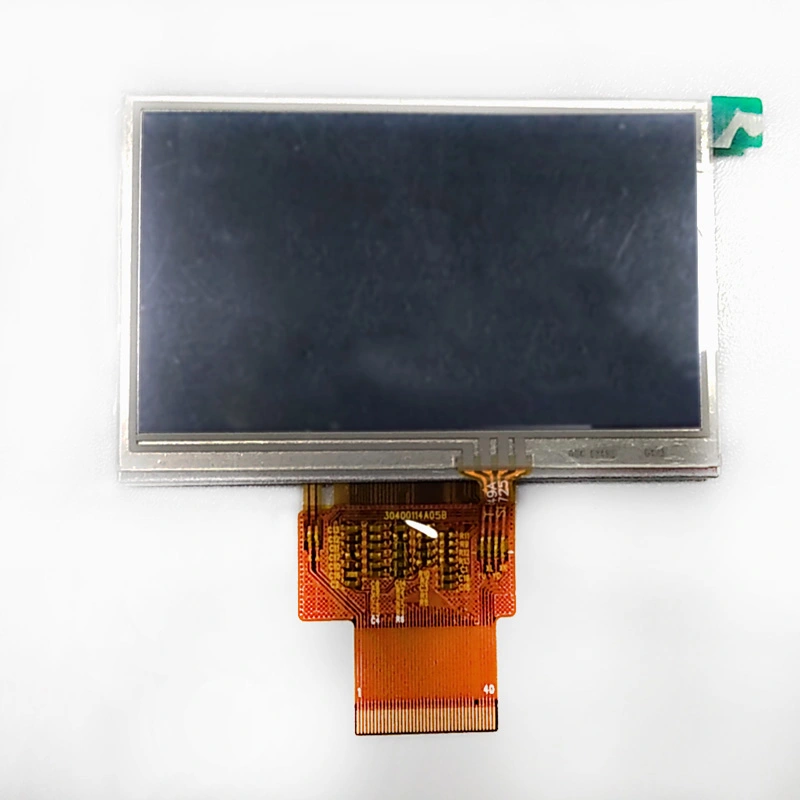

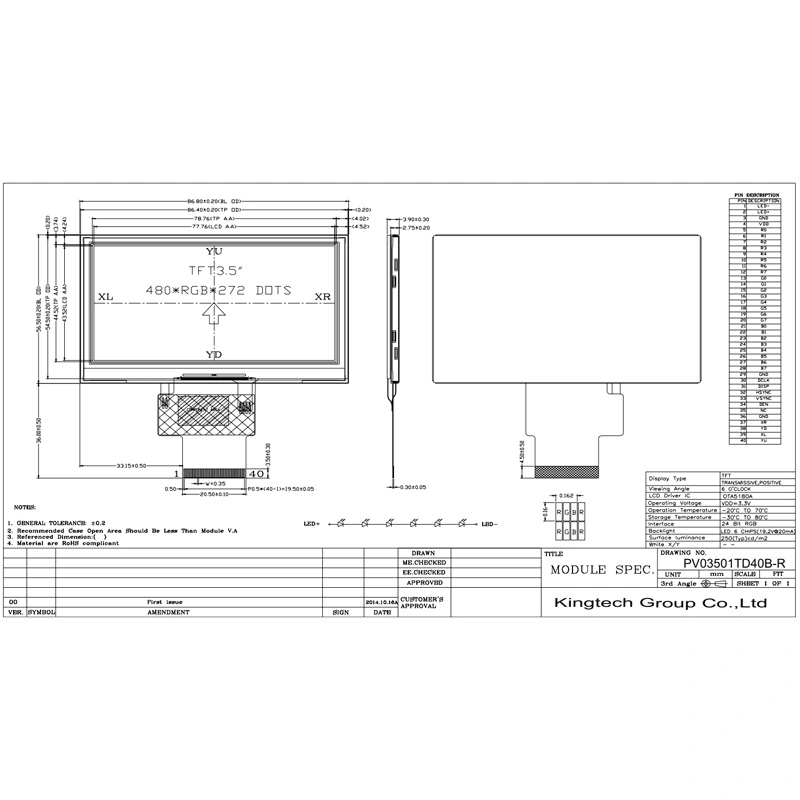

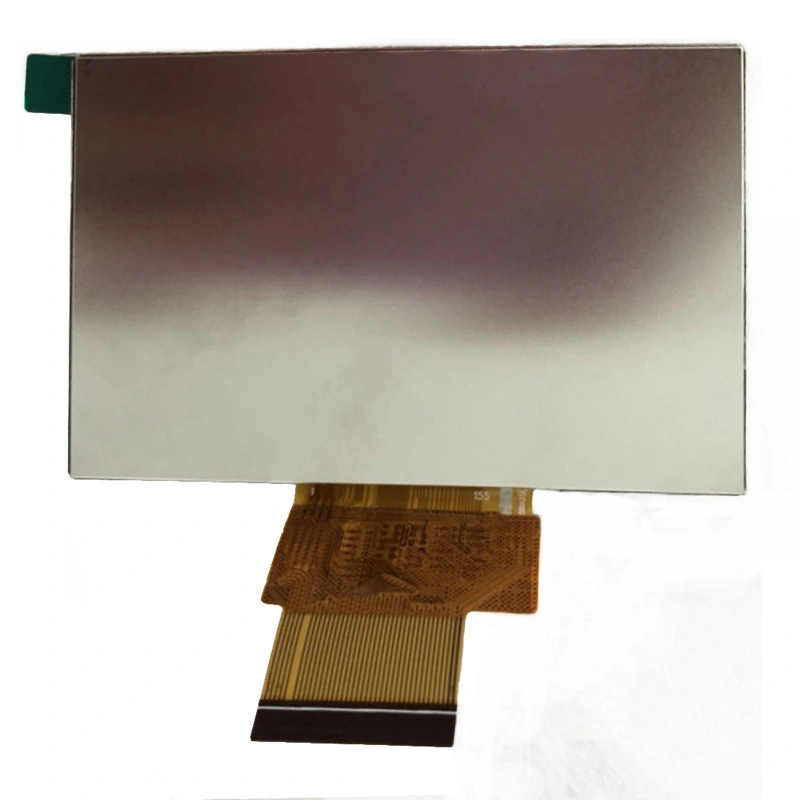

| Item | 3.5inch 480x272 TFT touch screen |
| Model No | PV03501TD40B-R |
| Resolution | 480x272 |
| Outline Dimension | 86.80(W)x56.50(H)x3.90(T) |
| Active Area(mm) | 77.79(W)x43.52(H) |
| Interface | 24bit RGB interface |
| Brightness | 250nits |
| Viewing Angle | 6 O'clock |
| Driving IC | OTA5180A |
| Display Mode | TFT / Transmissive / Normally White |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Resistive touch screen |
The 2.4 inch 240*320/QVGA TFT LCD module can be used for Smart home, Medical, hand-held device, industrial or others.
