2.0 Inch 240*320 TFT Round Module Display

Kingtech 2.0 inch 240*320 TFT round module display supply is very stable. This 2.0 inch supports SPI/ MCU 8 BIT Interface. In addition, the 2.0 inch TFT display module brightness is 600 nits high brightness, and this 2.0-inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, we can also customize capacitive touch according to the customer's requirements.


  • TFT display

  • 240*320

  • Stable supply

  • All/Free/Wide viewing angle/IPS

  • small/tiny display

  • High brightness/Outdoor/Sunlight readable/600nits

  • SPI/MCU8BIT

  • Smartwatch/wearable/medical

  • Can custom resistive touch and capacitive touch

Get a Quote Get a Quote Get a Quote

Specification of 2.0 Inch 240*320 TFT Round Module Display

Item2 inch TFT module display
Model NoPV02008HZ24L
Resolution240*320

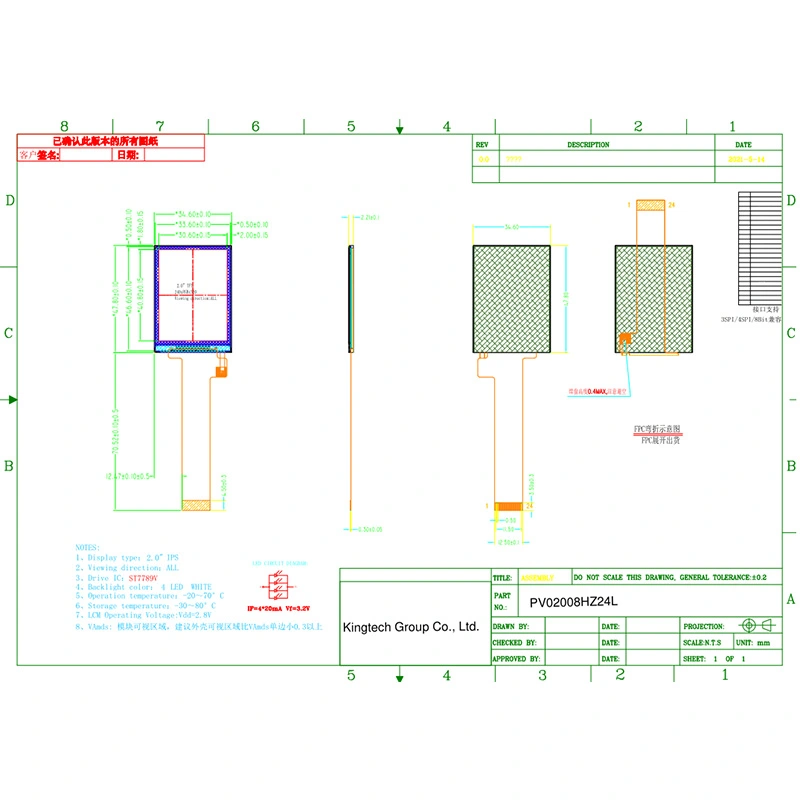

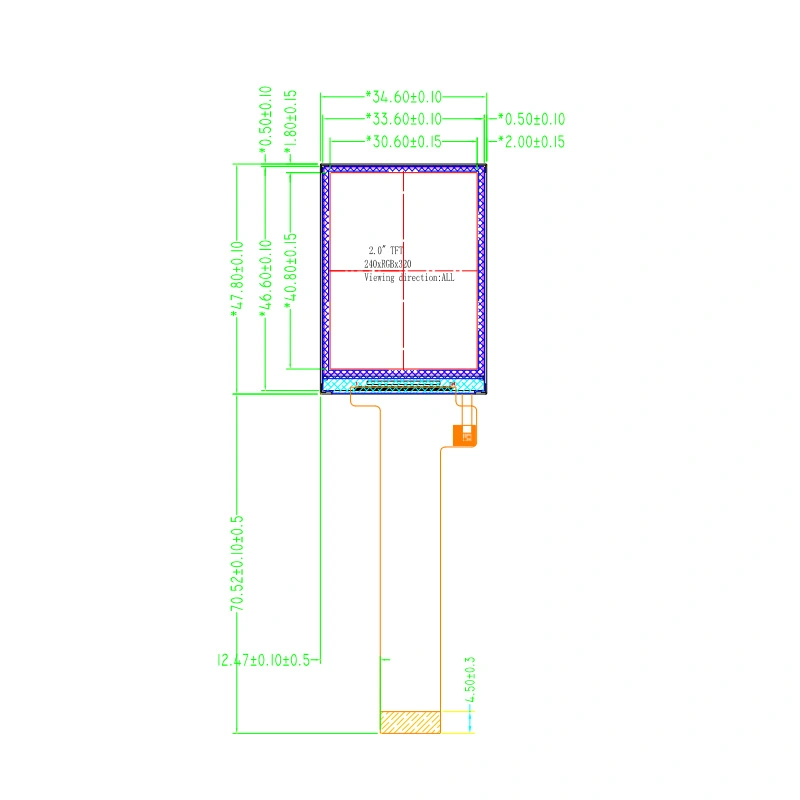

Outline Dimension34.6(H ) x47.8(V) x2.21(T)
Active Area(mm)30.60(H) x40.80(V)
Brightness600nits
Viewing AngleAll
InterfaceSPI/MCU8BIT
Driving ICST7789V
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Touch screenCan custom resistive and capacitive touch screen


Application of 2.0 Inch 240*320 TFT Round Module Display

  • The 2.0 inch 240*320 TFT display module can be used for smartwatches, wearable, medical and hand-held devices.
