2.7 Inch 960*240 TFT Bar Module Display

Kingtech 2.7 inch 960*240 TFT bar module display supply very stable. This 2.7 inch supports RGB 18bit interface. In addition, the 2.7 inch TFT display module brightness is 180 nits , and this 2.7 inch screen is TN /9 O'clock viewing angle type. For the touch part, this is resistive touch screen and we also can customize touch screen according to the customer requirements.


  • TFT display

  • 960*240 / Bar type

  • Stable supply

  • small display

  • Bar display

  • RGB interface

  • Medical / industrial / the barcode / hand-held device

  • Resistive touch screen

Get a Quote Get a Quote Get a Quote

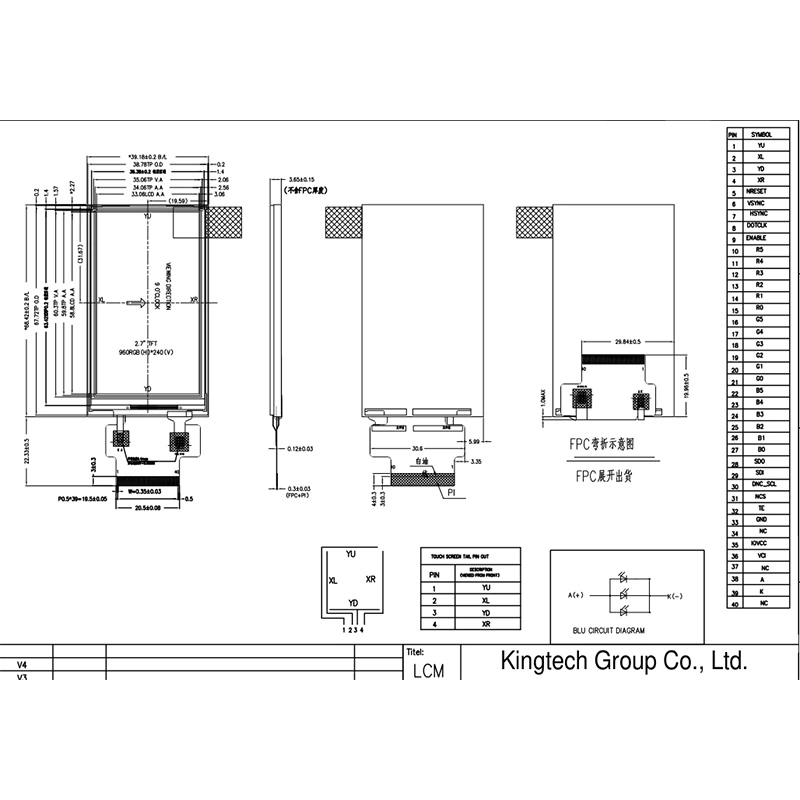

Specification of  2.7 Inch 960*240 Tft Bar Module Display

Item2.7 inch TFT bar display module
Model NoPV02701TD40A-R
Resolution960*240
Outline Dimension39.18*68.42*3.6540
Active Area(mm)33.06*58.8
Brightness180 nits
Viewing Angle9 O'clock/ TN
InterfaceRGB 18bit interface
Driving ICILI8961
Operating Temperature-10℃~60℃
Storage Temperature-20℃~70℃
Touch screenResistive touch


Application of  2.7 Inch 960*240 Tft Bar Module Display

  • The 2.7 inch 960*240 TFT display module can be used for medical, industrial the barcode and hand-held device.
