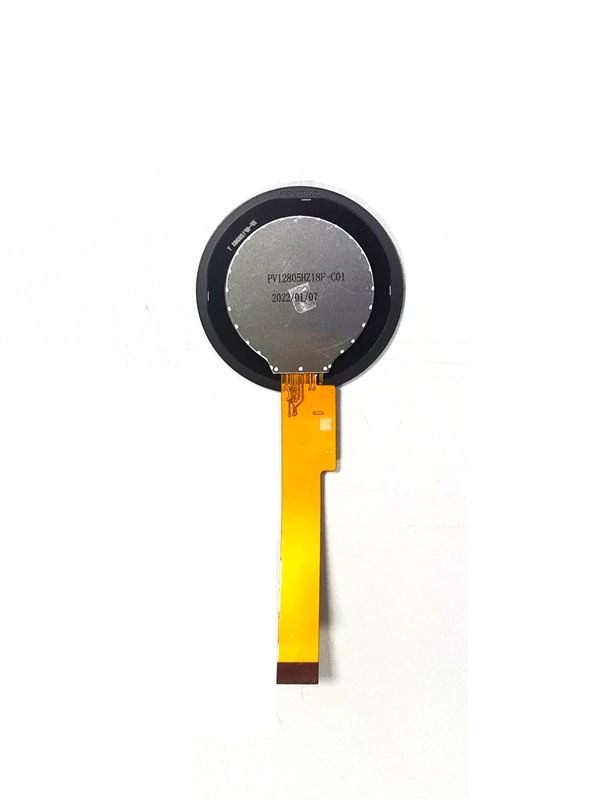

1.28 Inch 240*240 IPS Round TFT Display

Kingtech 1.28 inch 240*240 IPS Round TFT display supply very stable. This 1.28 inch supports SPI Interface. In addition, the 1.28 inch TFT module brightness is 350nits, and this 1.28 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the display for capacitive touch optical bonding, can also be customized according to customer.


  • All/Free/Wide viewing angle/IPS

  • Round/ circular display

  • 240*240

  • Stable supply

  • small / tiny display

  • SPI Interface

  • Smart watch/wearable

  • Capacitive touch panel

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

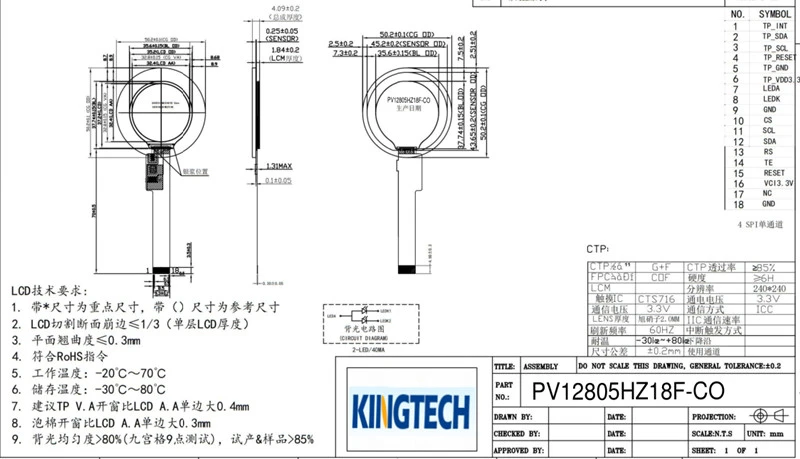

Specification of 1.28 Inch 240*240 IPS Round TFT Display


Item1.28 inch 240*240 round display
Model NoPV12805HZ18F-CO
Resolution240RGB x 240 dots
Outline Dimension50.2(H ) x50.2(V)x3.99(T)
Active Area(mm)32.4(H) x32.4(V)
Viewing AngleAll
Connection TypeCOG + FPC+BL+CTP
Driving ICGC9A01
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Brightness350nits
InterfaceSPI
Touch panelCapacitive touch



Application of 1.28 Inch 240*240 IPS Round TFT Display

  • The 1.28 inch 240*240 IPS TFT Round LCD display can be used for Smart watch and wearable.
