Kingtech 10.4 inch 800*600 TFT display supply very stable. This 10.4 inch supports LVDS interface. In addition, the 10.4 inch 800*600 TFT display module brightness is 350 nits, and this 10.4 inch SVGA display is 12 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
10.4 inchTFT display
800*600/SVGA
Stable supply
12 O'clock
LVDS interface
350nits brightness/Sunlight readable/High brightness

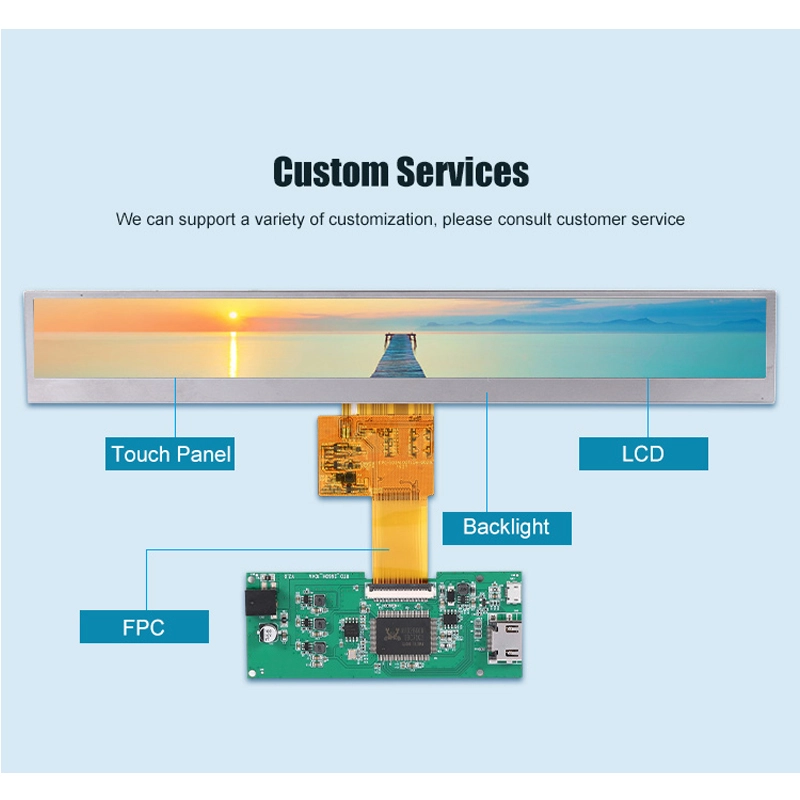

Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 10.4 inch TN 800*600 TFT display |
| Model No. | PV104008S0120J |
| Resolution | 800*600/SVGA |
| Outline Dimension (mm) | 236.0*176.9*5.6 |
| Active Area (mm) | 211.2*158.4 |
| Viewing Angle | 12 O'clock |
| Brightness | 350nits |
| Interface | LVDS |
| Backlight | 6*4LED |
| Driving IC | / |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 10.4 inch 800*600/SVGA TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
