Kingtech 7inch 1024x600 50pin IPS RGB interface 900nits capacitive touch screen supply is very stable. This 7inch WSVGA display supports RGB interface and HDMI convert board. It can connect to the raspberry pi directly. The lifetime is 30000h, the brightness is 900nits, and can be sunlight readable. For the touch part, Kingtech can custom the touch according to customer's requirements.
1024x600/WSVGA
IPS free viewing angle
50pin
RGB interface
Stable supply
HDMI board/Convert board
High brightness/Sunlight readable/outdoor/900nits
Capacitive touch screen
| Item | 7inch 1024x600 50pin IPS RGB interface Capacitive touch screen |
| Model No | PV07025LZR50A-CT |
| Resolution | 1024x600 |

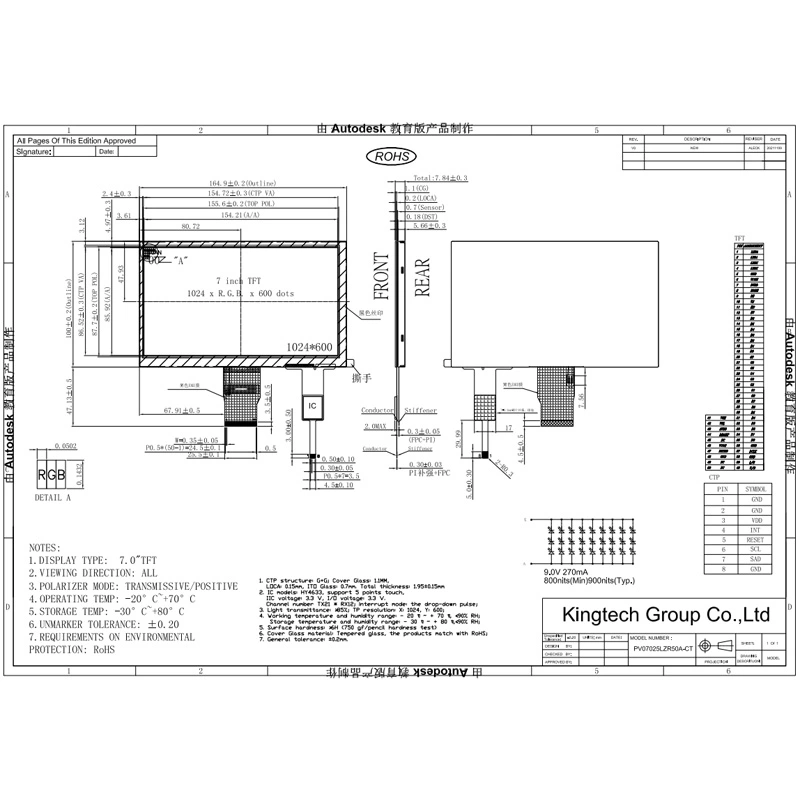

| Outline Dimension | 164.90*100.10*7.84 |
| Active Area(mm) | 154.21*85.92 |
| Interface | RGB |
| Brightness | 900nits |
| Touch driver IC | HY4633 |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 50 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Board | Convert Board |
| Touchscreen | Capacitive touchscreen |
The 7inch 1024x600 IPS 50pin RGB interface 900nits capacitive touch screen can be used for agricultural equipment, medical device, game console and smart home, etc.
