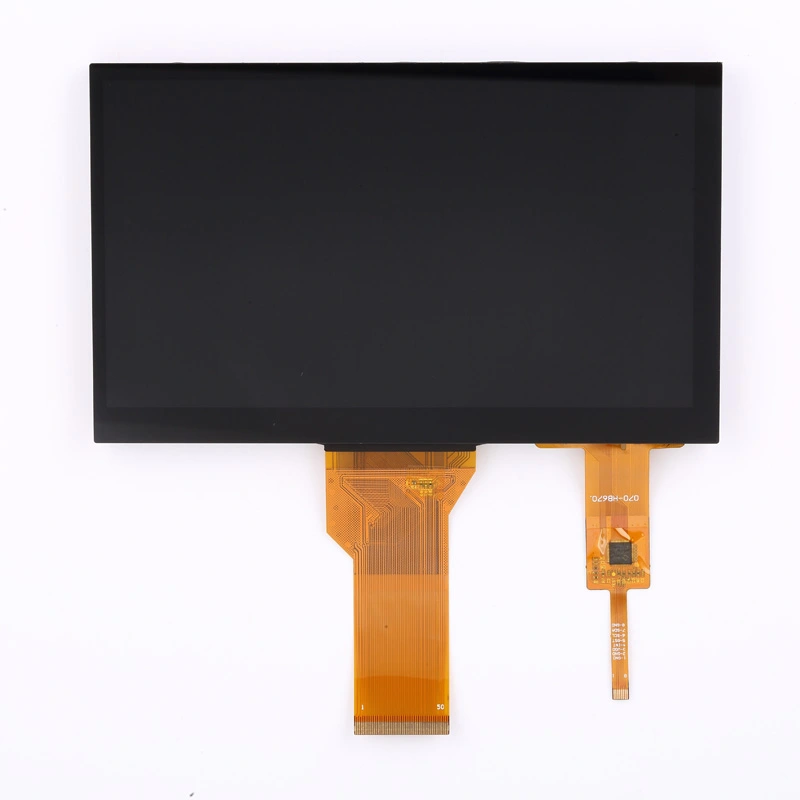

Kingtech 7inch 800x480 50 pins long FPC capacitive touch screen supply is very stable. This 7inch WVGA display supports RGB interface and HDMI convert board. It has HDMI board and can connect to the raspberry pi. The life-time is 30000h, and the brightness is 500nits. It can be used at outdoor and is sunlight readable. For the touch part, Kingtech can custom the touch according to the customer's requirements.

Features of 7-PV0705YX50E-CO

  • 800x480 / WVGA resolution

  • 50pin

  • Stable supply

  • HDMI board / Convert board

  • High brightness/Sunlight readable/outdoor/ 500nits /1000nits

  • Support resistive touch and capacitive touch

  • Can custom capacitive touch screen

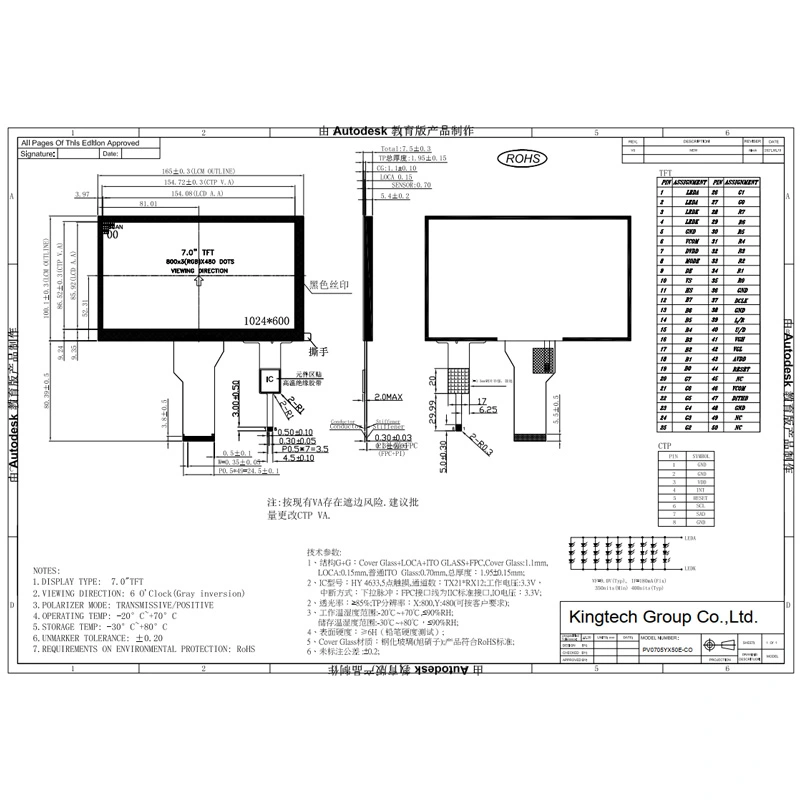

Specification of 7-PV0705YX50E-CO

Item7inch 800x480 50pin capacitive touch screen
Model NoPV0705YX50E-CO
Outline Dimension165*100.1*7.5 mm
Active Area(mm)154.08*85.92 mm
Viewing Angle12 O'clock
LED life30000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
TouchscreenCan custom capacitive touchscreen

Application of 7-PV0705YX50E-CO

  • The 7inch 800x480 50pin TN capacitive touch display can be used for agricultural equipment, medical device, game console, outdoor, E-bike and smart homes, etc.
