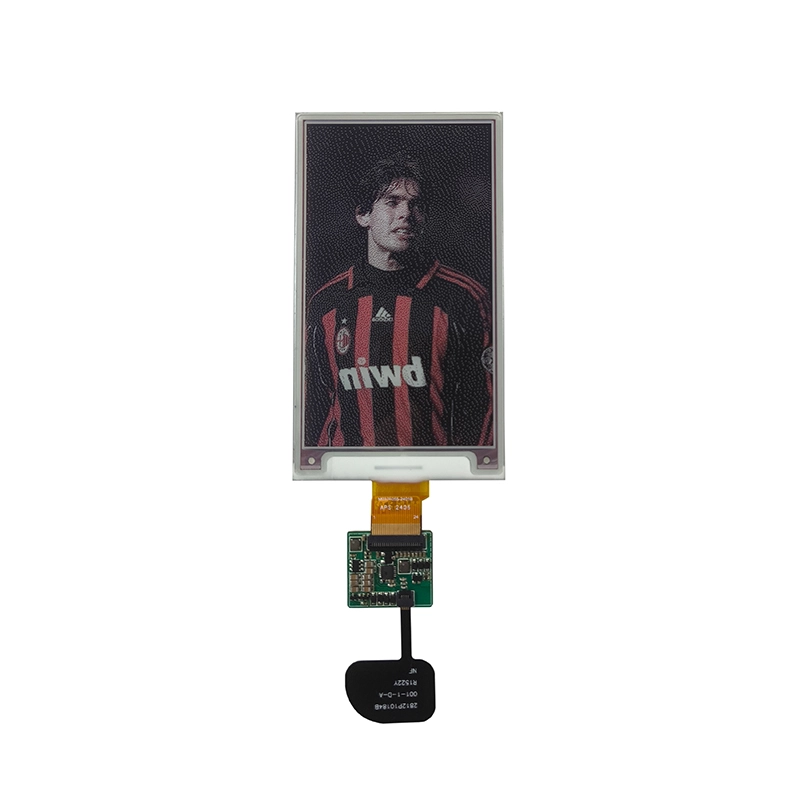

Introducing the Kingtech Ink Phone Case, a revolutionary blend of style and technology. Featuring a 3.7-inch electrophoretic bitmap display with 240(H) x 416(V) pixels, this case offers a vibrant 4-color display (Black, White, Red, Yellow) for dynamic customization. With a pixel pitch of 196(H) x 196(V) um and 130 PPI, every detail is rendered with precision. The display operates via a 3-wire SPI/4-wire SP interface and is powered by the JD79663AA driver IC. Remarkably, it maintains a bi-stable state, requiring no power to retain the image. Lightweight at just 8.9g, the Kingtech Ink Phone Case is designed for both functionality and durability, operating efficiently between 0°C and +40°C. Elevate your smartphone experience with Kingtech’s innovative design.
Get a Quote
Documentation
| No. | Item | Specification |
| 1 | Panel Size | 3.7”inch |
| 2 | Number of Pixels | 240(H)*416(V) |
| 3 | Panel Size | 53(H)x92.99(V) x0.9(D) mm |
| 4 | Border | 48.04(H)x82. 54(\V) mm |
| 5 | Active Area | 47.04(H)x81.536(V) mm |
| 6 | Pixel Pitch | 196(H)x196(V) um |
| 7 | PPI | 130 |
| 8 | Dispaly Colors | 4-Color(BlackWhite/Red/Yellow) |
| 9 | Dispaly Mode | Electrophoretic Bitmap Display |
| 10 | Interface | 3-wire SPI/ 4-wire SP |
| 11 | Driver IC | JD79663AA |
| 12 | Bi-stable State | No power supply is required for the end of image refresh |
| 13 | Operation Temperature | 0°C ~ +40°C |
| 14 | Storage Temperature | -25°C ~ +60°C |
| 15 | Weight | 8.9g士0.2g |
