Kingtech 12.3 inch 1920*720 IPS LCD display supply is very stable. This 12.3inch supports the LVDS interface. With a wide work temperature of -30℃~+85℃. In addition, the 12.3 inch TFT module lifetime is 20000h, the brightness is 750nits sunlight-readable, and this 12.3-inch screen is All/Free/Full/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Full/Wide viewing angle/IPS
1920*720
Stable supply
Wide temperature/-30℃~+85℃
High brightness/Sunlight readable/outdoor/750nits
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 12.3nch 1920*720 LCD display |
| Model No | PV012302YH50D |
| Resolution | 1920*720 |

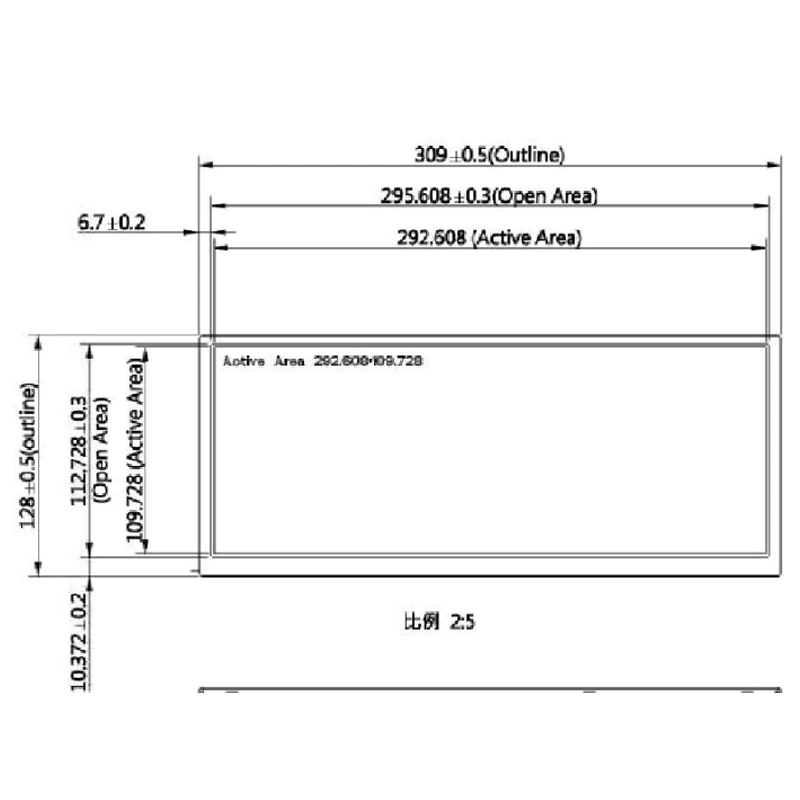

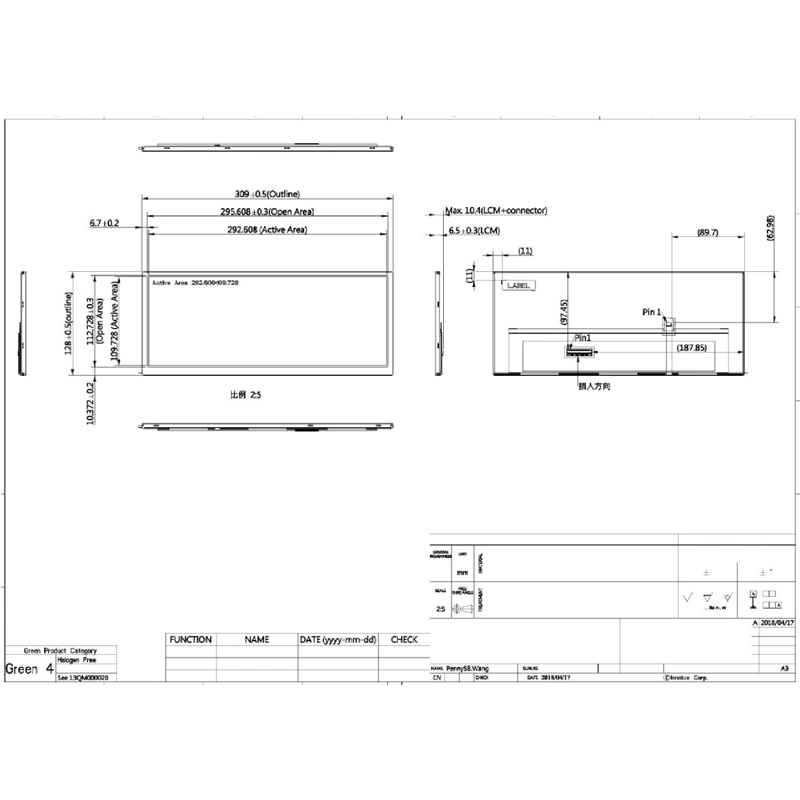

| Outline Dimension | 309.0*128.0*6.5 |
| Active Area(mm) | 292.608*109.728 |
| Interface | 2 Port LVDS (DE Only) |
| Brightness | 750nits |
| Viewing Angle | All |
| LED life | 20000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 30 |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -40℃~90℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 12.3inch 1920*720 IPS TFT LCD display can be used for industrial control, agricultural equipment, medical device, game console, outdoor and smart homes, etc.
