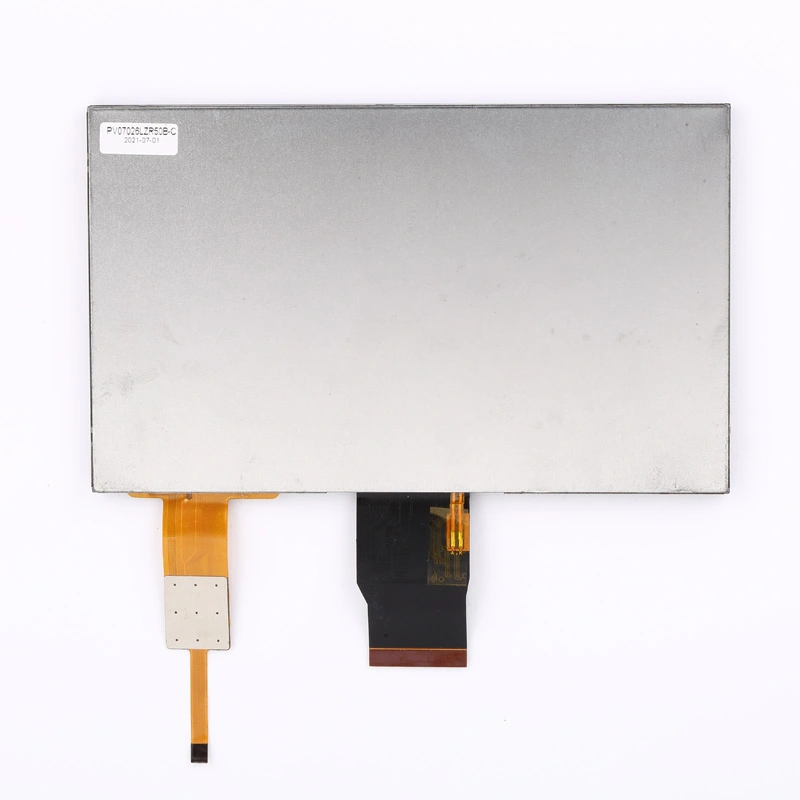

Kingtech 7inch 1024x600 50pin IPS RGB interface capacitive touch screen supply is very stable. This 7inch WSVGA display supports RGB /TTL interface and HDMI convert board. The HDMI board can connect to the raspberry pi directly. The 7inch module lifetime is 50000h, and the brightness is 400nits. The 7inch screen has the existing capacitive touch and Kingtech can also custom the touch according to the customer's requirements.

Features of 7-PV07026LZR50B-C

  • 1024x600/WSVGA

  • IPS/Free/All/Wide/Full viewing angle

  • 50pin

  • RGB/TTL interface

  • Stable supply

  • HDMI board/Convert board

  • High brightness/Sunlight readable/outdoor/1000nits

  • Support resistive and capacitive touch screen

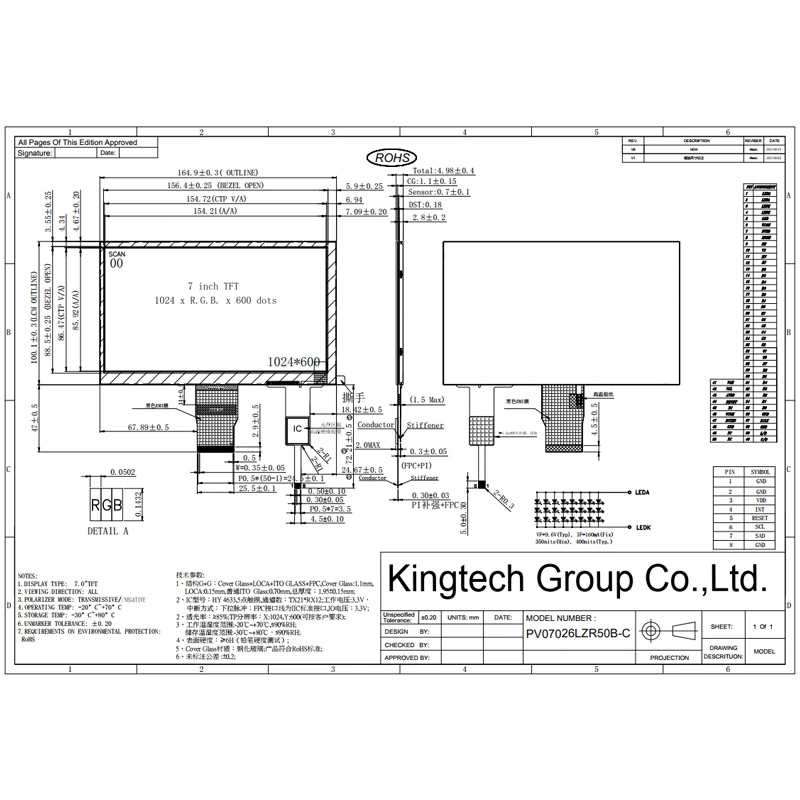

Specification of 7-PV07026LZR50B-C

Item7inch 1024x600 50pin IPS RGB interface
Capacitive touch screen
Model NoPV07026LZR50B-C
Outline Dimension164.90*100.10*4.98
Active Area(mm)154.21*85.92
InterfaceRGB /TTL
Touch driver ICHY4633
Viewing AngleAll
LED life50000h
Display ModeTN / Transmissive / Normally Black
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
TouchscreenCan custom capacitive touchscreen

Application of 7-PV07026LZR50B-C

  • The 7inch 1024x600 IPS 50pin RGB interface capacitive touch screen can be used for agricultural equipment, medical device, game console and smart home, etc.
