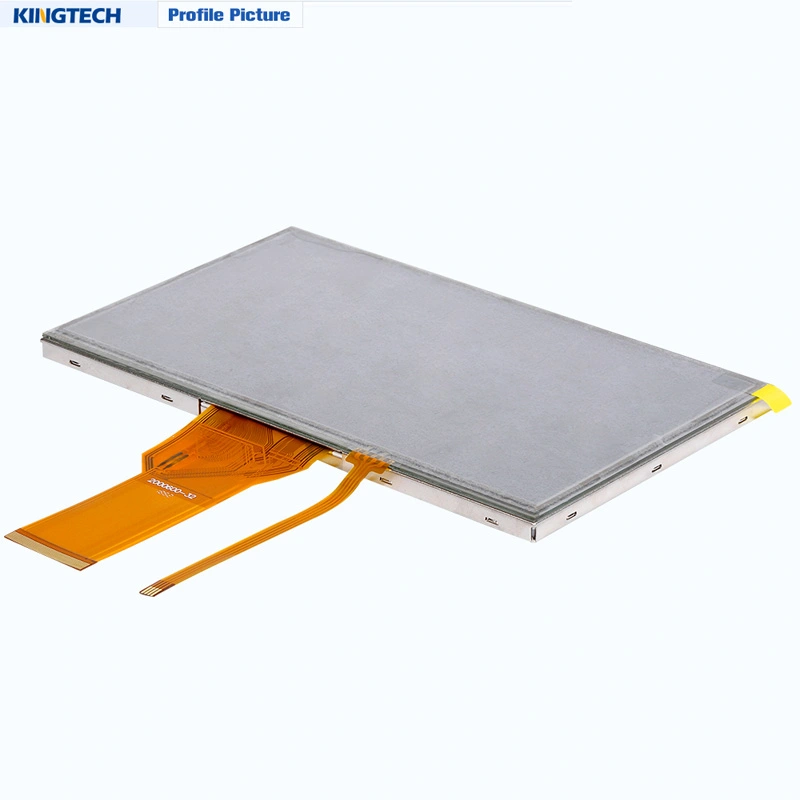

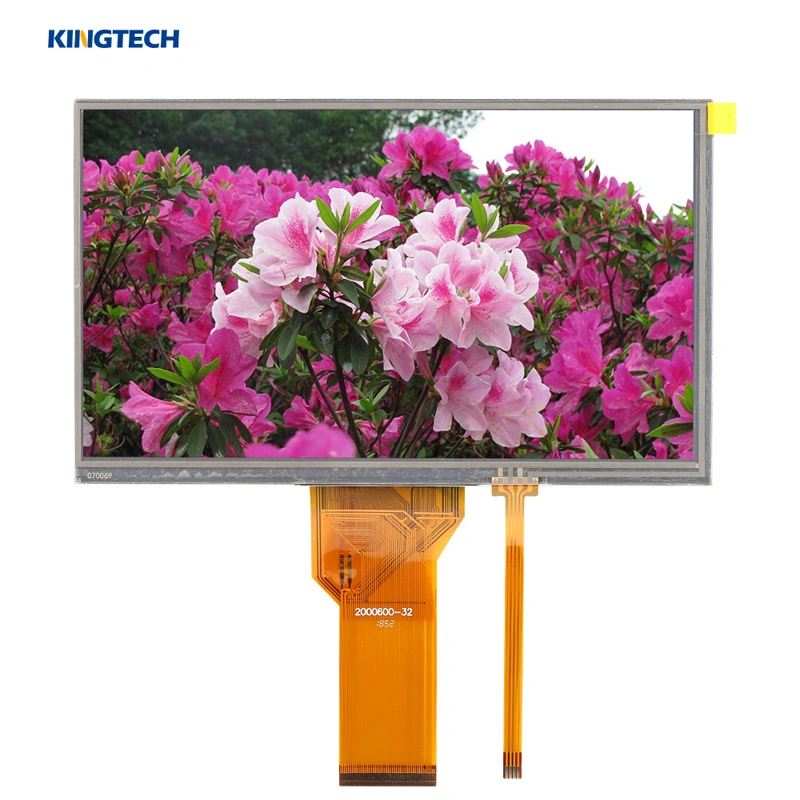

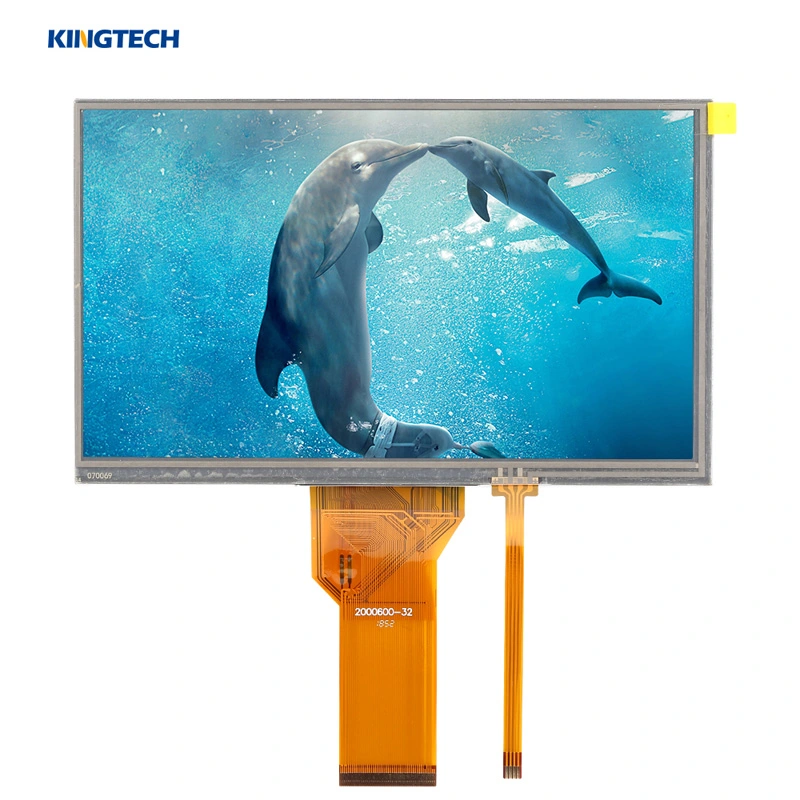

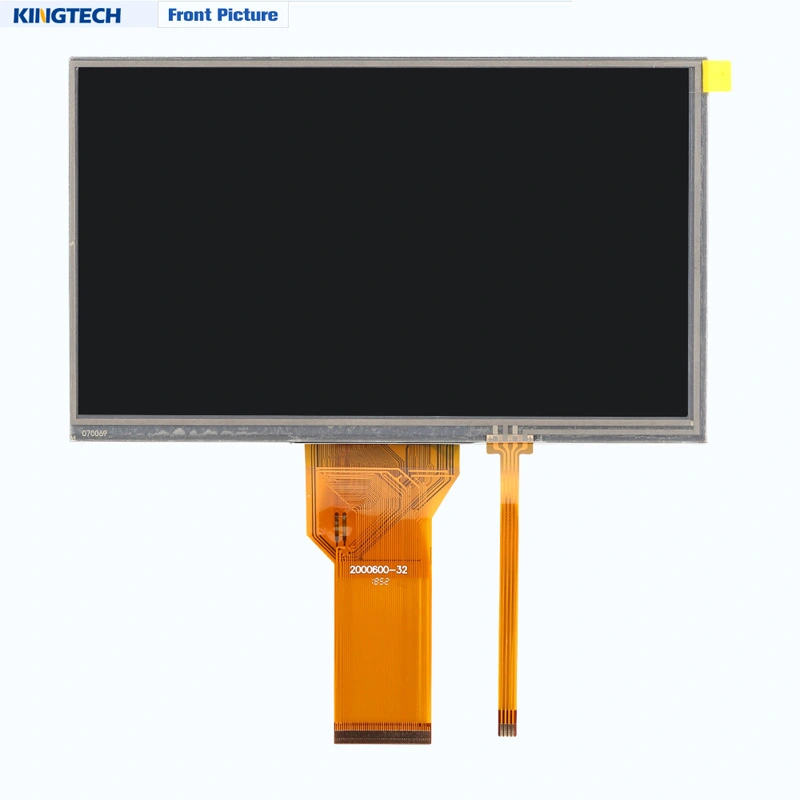

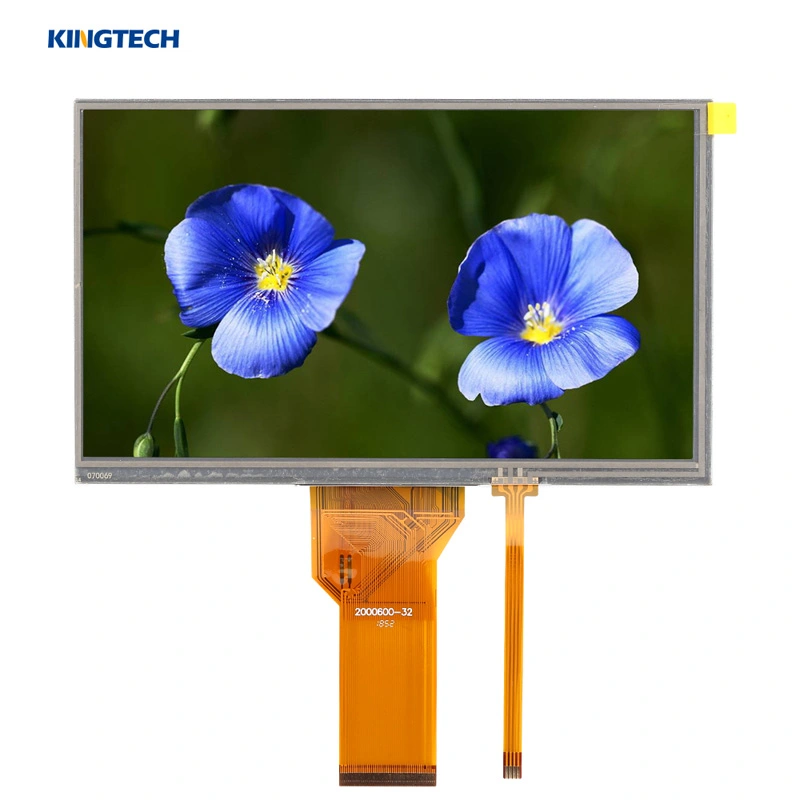

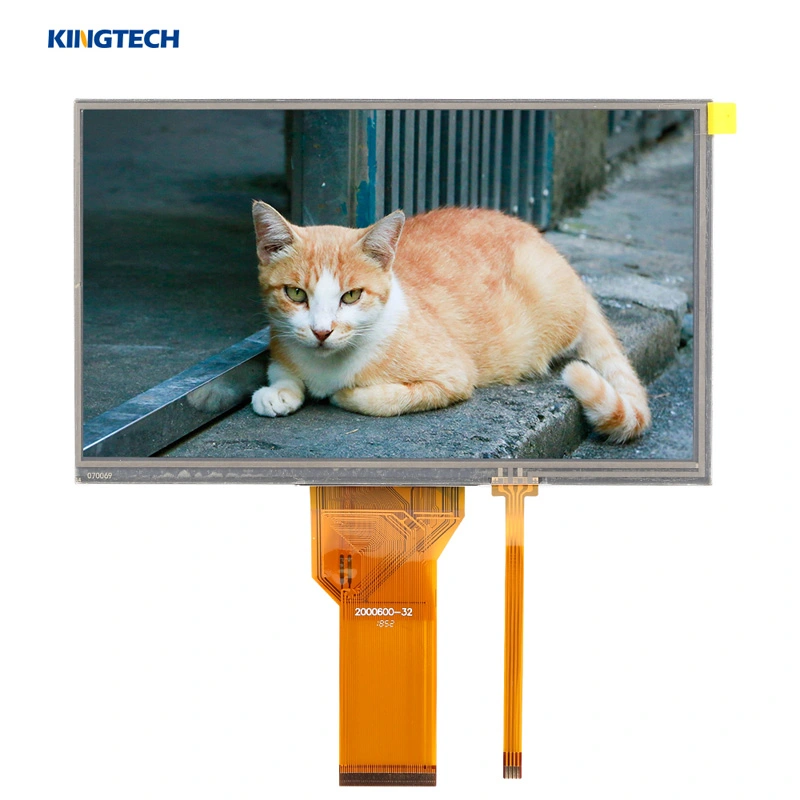

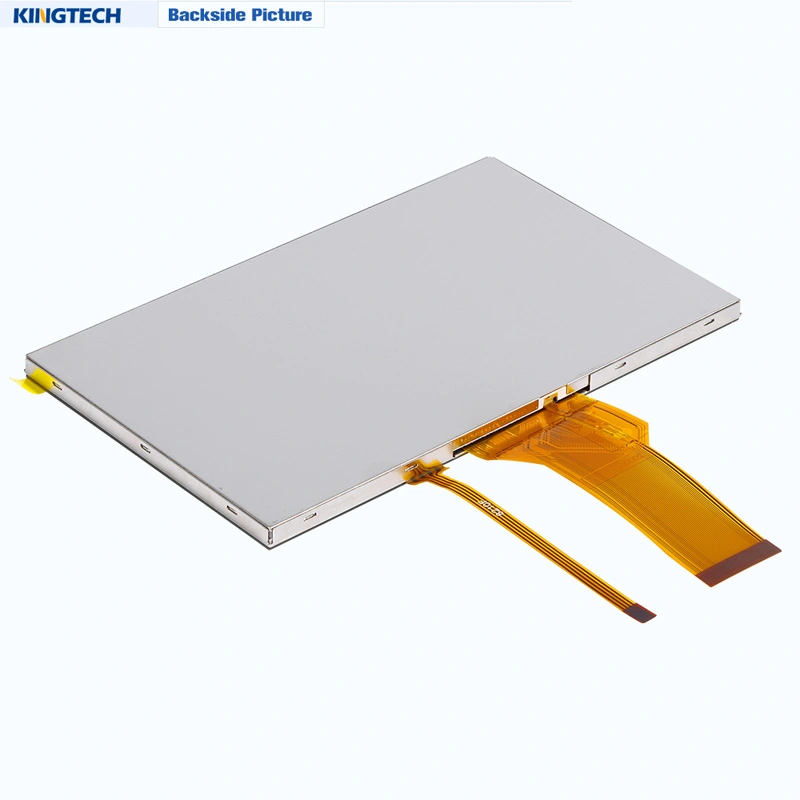

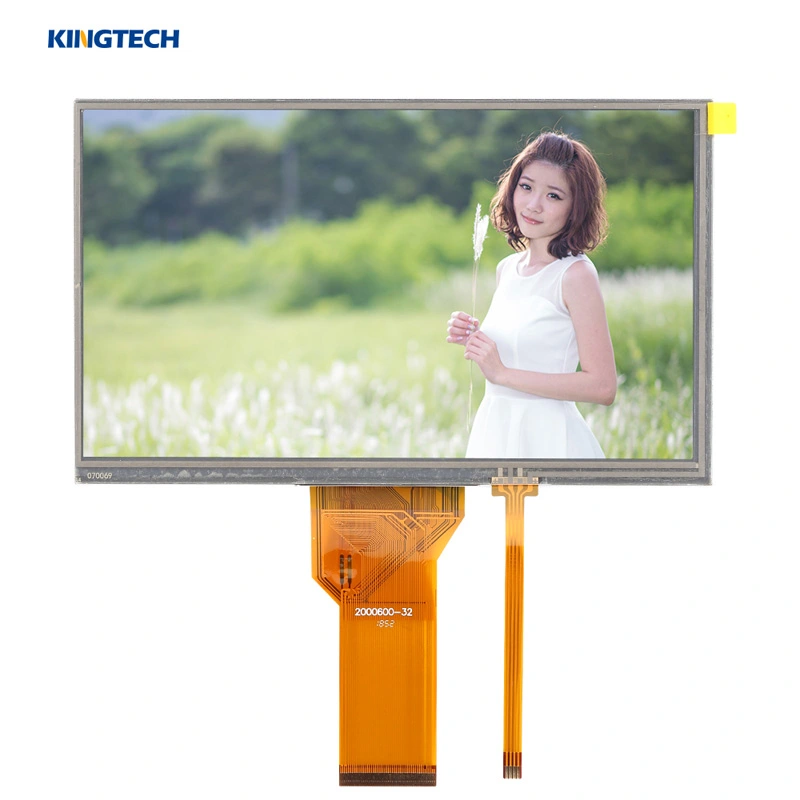

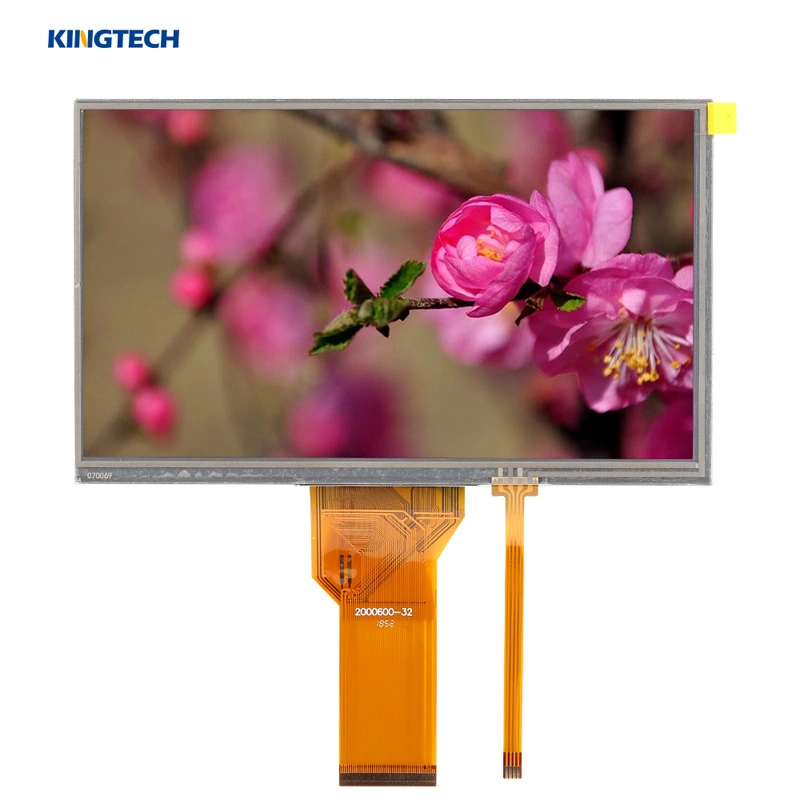

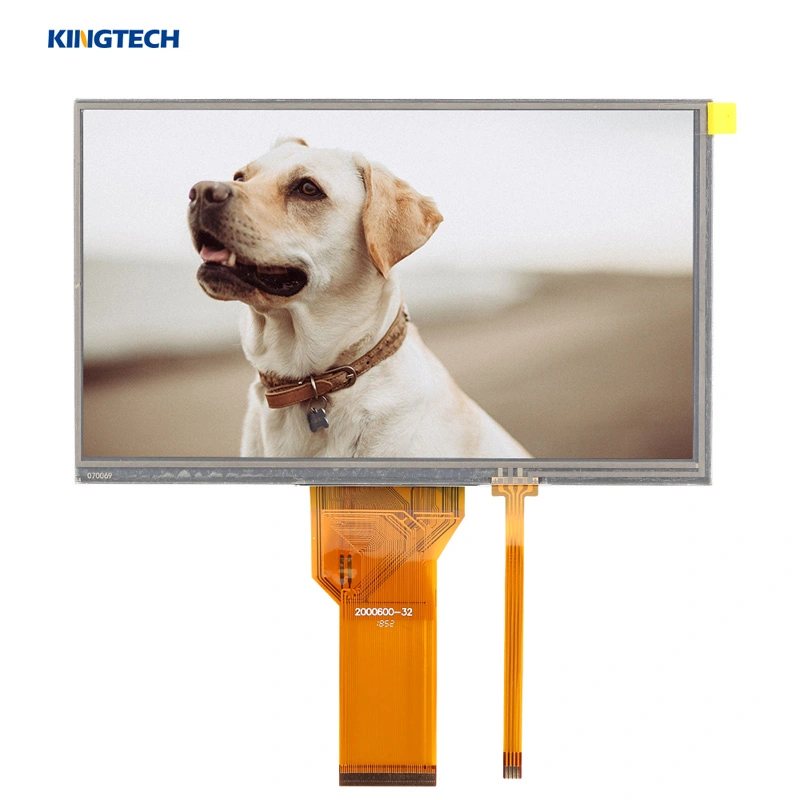

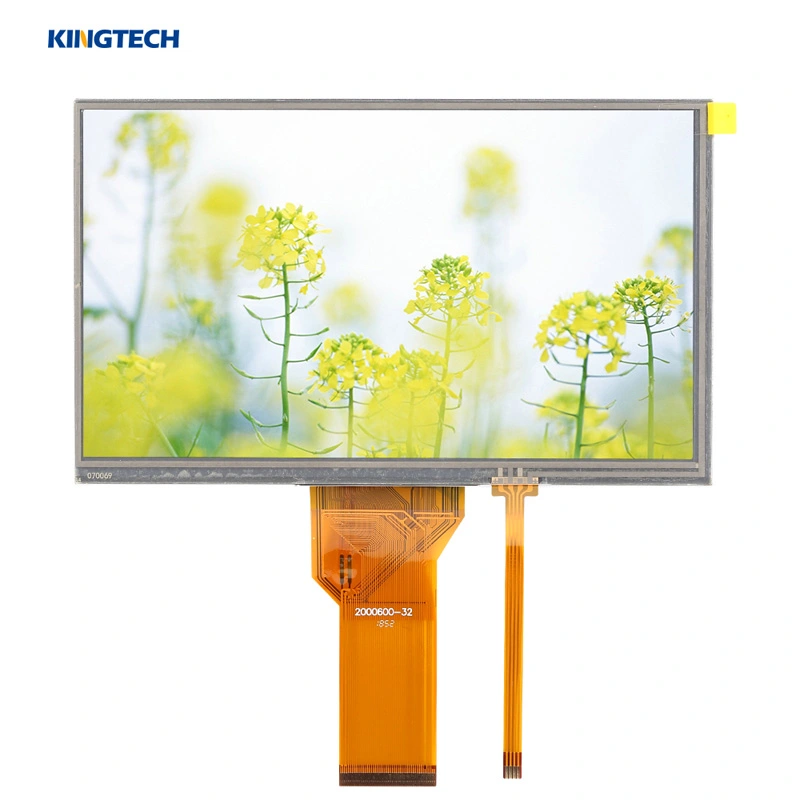

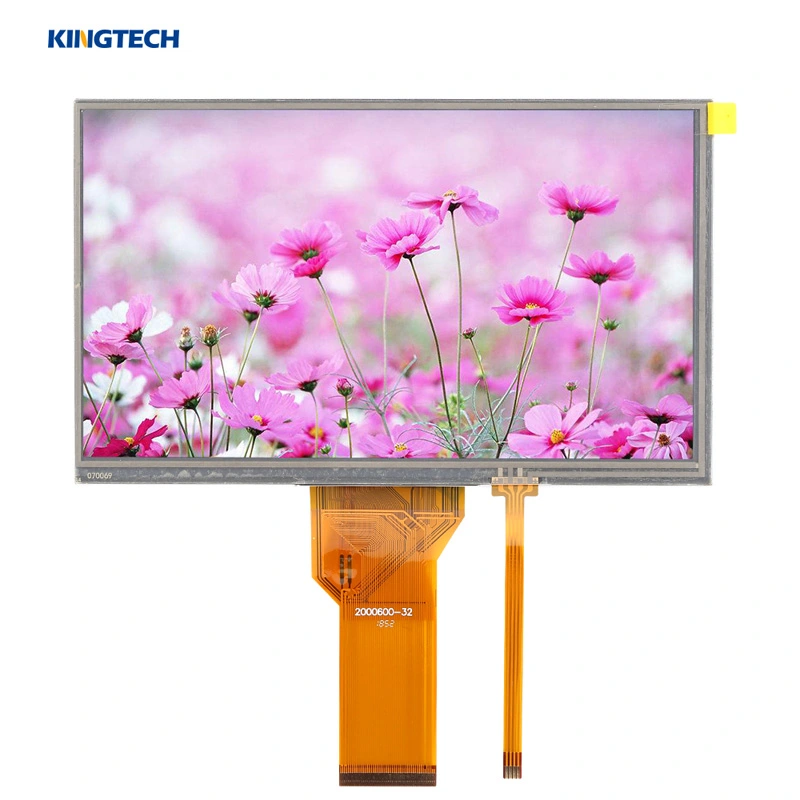

RGB Interface 7 Inch 800x480 TFT Module

Name: RGB Interface 7 Inch 800x480 TFT Module
Brand: Kingtech Group Co., Ltd.
Price: $2.5-100 USD

Kingtech 7inch 800x480 /WVGA TFT LCD display is a common size in the market, the supply of 7 inch LCD display is very long and stable.

The 7 inch LCD screen has the existing resistive touch and capacitive touch. The touch can be customized according to customer requirements.

This LCD 7 inch display can reach 1000nits and can be used for outdoor devices. The LCD display 7 inch 1024x600 has HDMI Board. We, as a profesional LCD display supplier, promise to offer qualified 7 inch TFT screens for customers.

Features of RGB Interface 7 Inch 800x480 TFT Module

The 7 Inch RGB interface LCD has many features, as following:

800x480 / WVGA resolution
Landscape
High brightness/sunlight readable LCD display/1000nits
Support resistive touch and capacitive touch
HDMI Board
INNOLUX 50PIN FOG

Specification of RGB Interface 7 Inch 800x480 TFT Module

Item	7 inch 800x480 TFT module display
Model No	PV0705YX50E
Resolution	800x480
Outline Dimension	164.9(W)100(H)5.7(T)
Active Area(mm)	154.08(W)*85.92(H)
Interface	24-bit Parallel RGB Interface
Brightness	400nits / 1000nits
Viewing Angle	12 O'clock
LED life	50000h
Display Mode	TN / Transmissive / Normally white
PIN	50
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Touchscreen	Resistive / capacitive touchscreen
Board	HDMI board

Application of RGB Interface 7 Inch 800x480 TFT Module

The 7 inch TFT LCD display can be aaplied in many industries, as following:

The 7inch 800x480 / WVGA TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and a black box.
The 7 inch TFT LCD touch screen also can be used in sunlight-readable such as advertising machines, automotive devices.
