Kingtech 5.0 inch 720x1280 LCD display supply is very stable. This 5.0 inch supports the MIPI interface. In addition, the 5inch module used ILI9881D driver IC and its full/all/wide IPS viewing angle. For the touch part, Kingtech can custom the 5inch 720x1280 LCD touch panel according to the customer's requirements.

Features of 5-PV05013H0139Q

  • IPS/All/Full/Wide viewing angle/Normally black

  • 720x1280 resolution

  • ILI9881D IC

  • Support capacitive touch

  • Can custom capacitive touchscreen

  • MIPI interface

Specification of 5-PV05013H0139Q

Item5.0 inch 720x1280 LCD module
Model NoPV05013H0139Q

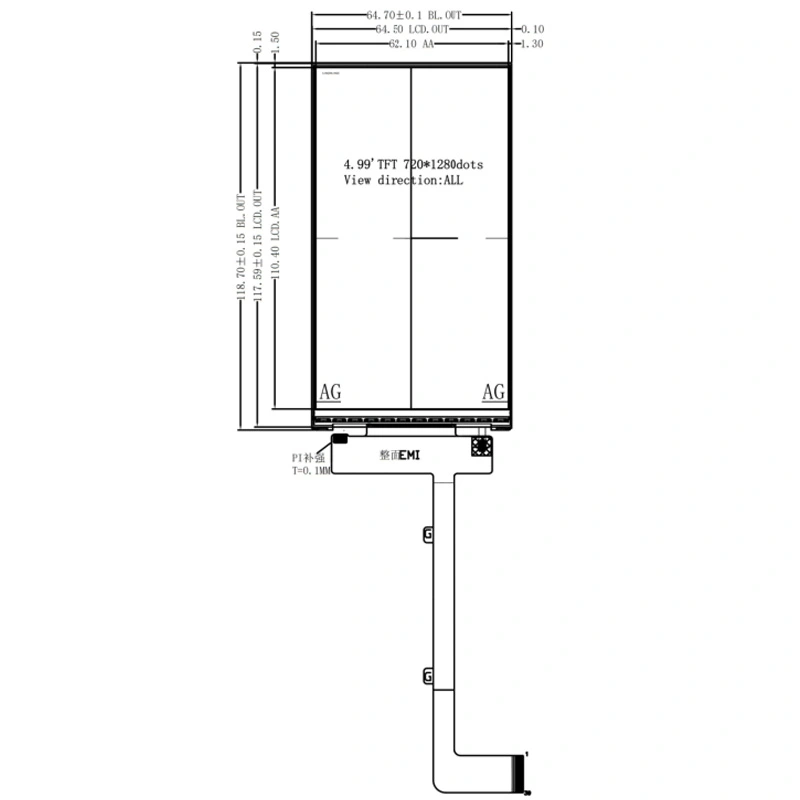

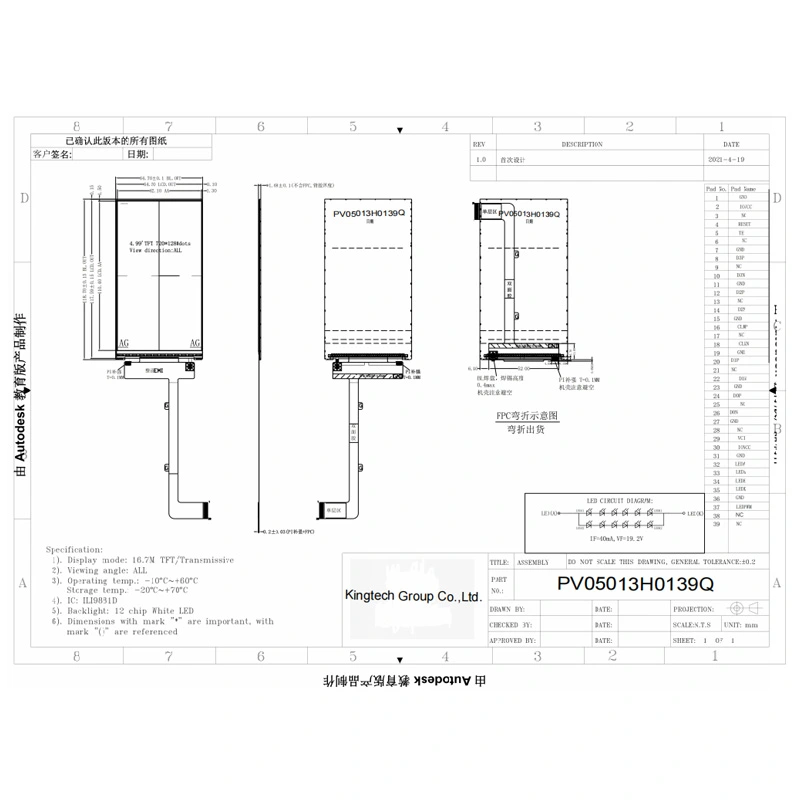

Outline Dimension64.70(H ) x118.70(V) x1.68(T)
Active Area(mm)62.10(H) x110.40(V)
Driver ICILI9881D
Viewing AngleAll
LED life30000h
Display ModeTransmissive / Normally black
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Touch panelSupport capacitive touch
TouchscreenCan custom capacitive/resistive touchscreen

Application of 5-PV05013H0139Q

  • The 5.0 inch 720x1280 IPS MIPI LCD module can be used for agricultural equipment, medical device, game console, smart home, etc.
