Kingtech 7inch 800x480 IPS interface 800nits display, it supports LVDS interface. People can control it directly via FFC. The lifetime is 50000h, the brightness is 800nits sunlight-readable, also it is All/Free/Full/Wide viewing angle/IPS type. The 7inch module is wide temperature -30~+85C for operating temperature. For the touch part, Kingtech can custom the touch according to the customer's requirements.

Features of 7-PV07032LSB30H

  • All/Free/Full/Wide viewing angle/IPS

  • 800x480/WVGA

  • LVDS interface

  • Wide temperature/-30℃~+85℃

  • High brightness/Sunlight readable/outdoor/800nits

  • Can custom capacitive touch screen

Specification of 7-PV07032LSB30H

Item7inch 800x480 IPS wide temperature display
Model NoPV07032LSB30H

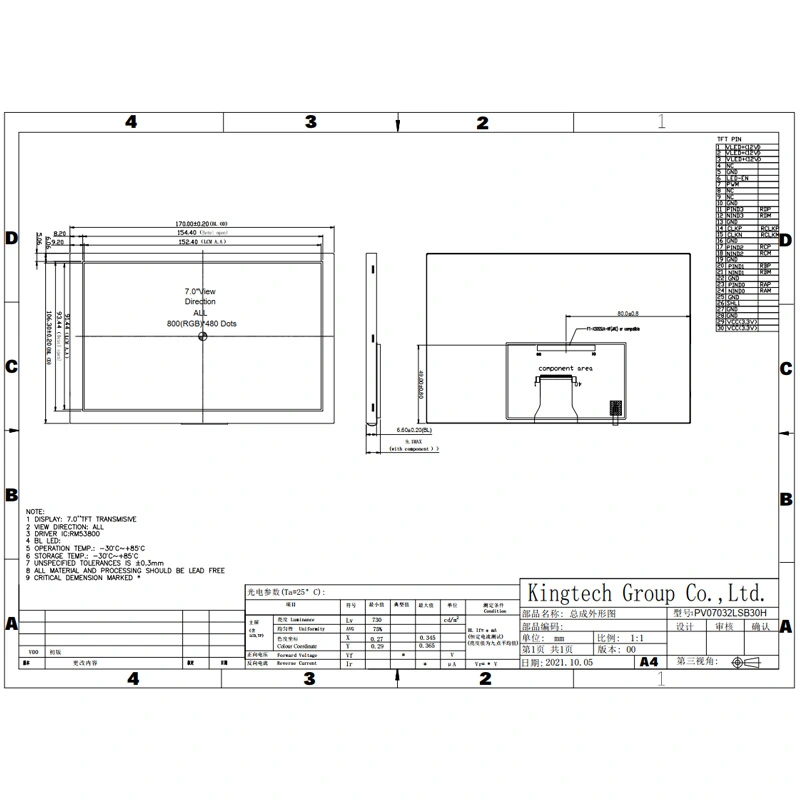

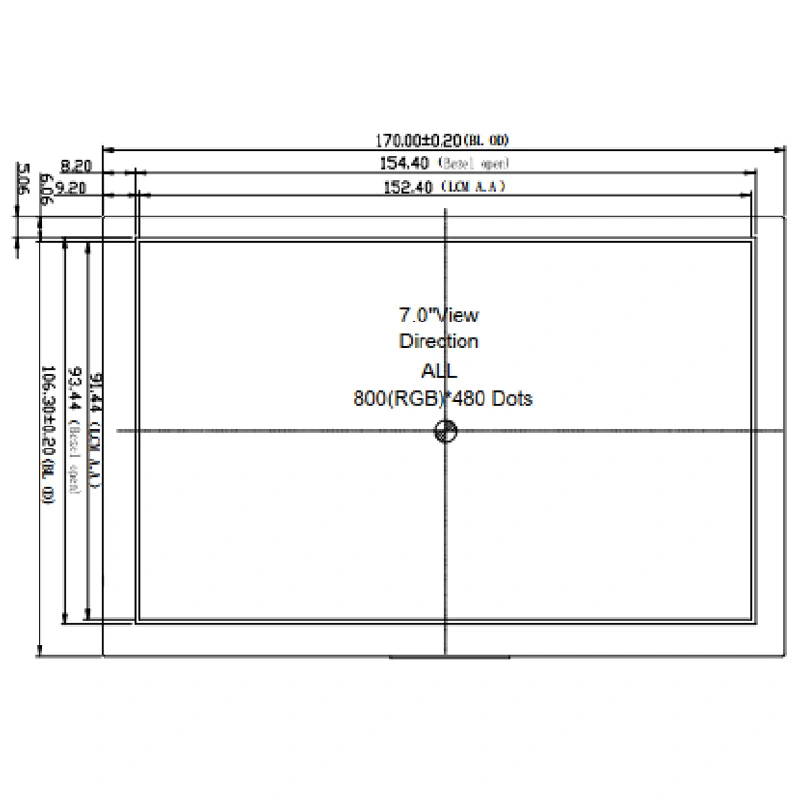

Outline Dimension166.37*105.39*6.60 mm
Active Area(mm)152.40*91.44 mm
Viewing AngleAll
LED life30000h
Display ModeTN / Transmissive / Normally Black
Operating Temperature-30℃~85℃
Storage Temperature-30℃~85℃
TouchscreenCan custom capacitive touchscreen

Application of 7-PV07032LSB30H

  • The 7inch 800x480 IPS LVDS interface wide temperature TFT LCD display can be used for agricultural equipment, medical device, game console and smart home, etc.
