Kingtech 7inch 800x480 50pin long FPC capacitive touch screen supply is very stable. This 7inch WVGA display supports RGB interface and HDMI convert board. It can connect to the raspberry pi directly. The lifetime is 30000h, and the brightness is 400nits. In addition, this 7inch capacitive touch panel is a waterproof type, Kingtech can also custom the touch according to customer's requirements.

Features of 7-PV07017LZR50S-C

  • 800x480/WVGA

  • 50pin

  • Landscape/Horizontal type

  • Stable supply

  • HDMI board/Convert board

  • 400nits brightness

  • Waterproof capacitive touch screen

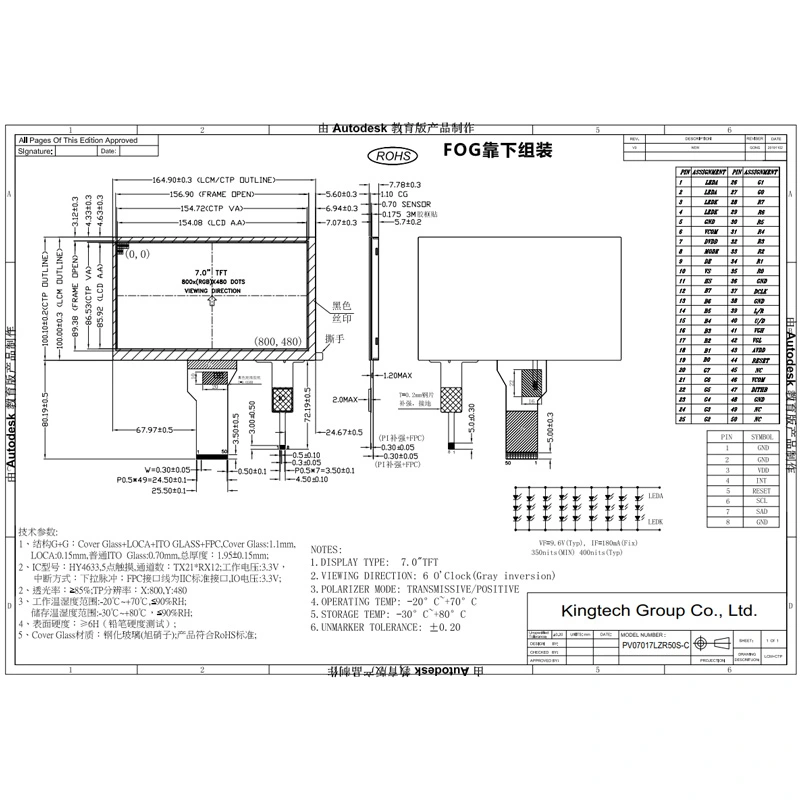

Specification of 7-PV07017LZR50S-C

Item7inch 800x480 50pin waterproof capacitive touch screen
Model NoPV07017LZR50S-C
Outline Dimension165*100.1*7.78 mm
Active Area(mm)154.08*85.92 mm
Touch driver ICHY4633
Viewing Angle12 o'clock
LED life30000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
Touch panelSupport capacitive touch
Touch screenCan custom resistive and capacitive touch

Application of 7-PV07017LZR50S-C

  • The 7inch WVGA 50pin waterproof type capacitive touch display can be used for agricultural equipment, medical device, game console and smart home, etc.
