5.5 Inch 720x1280 LCD Display

Kingtech 5.5 inch 720x1280 LCD display supply is very stable. This 5.5 inch LCD screen is 39 pins and the driver IC is ILI9881D. Moreover, the 5.5inch TFT display module is full/all/wide IPS viewing angle. For the touch part, Kingtech can custom the touch according to the customer's requirements.


  • IPS/All/Wide viewing angle/IPS/Normally black

  • 720x1280 resolution

  • ILI9881D IC

  • Can custom capacitive/resistive touchscreen

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

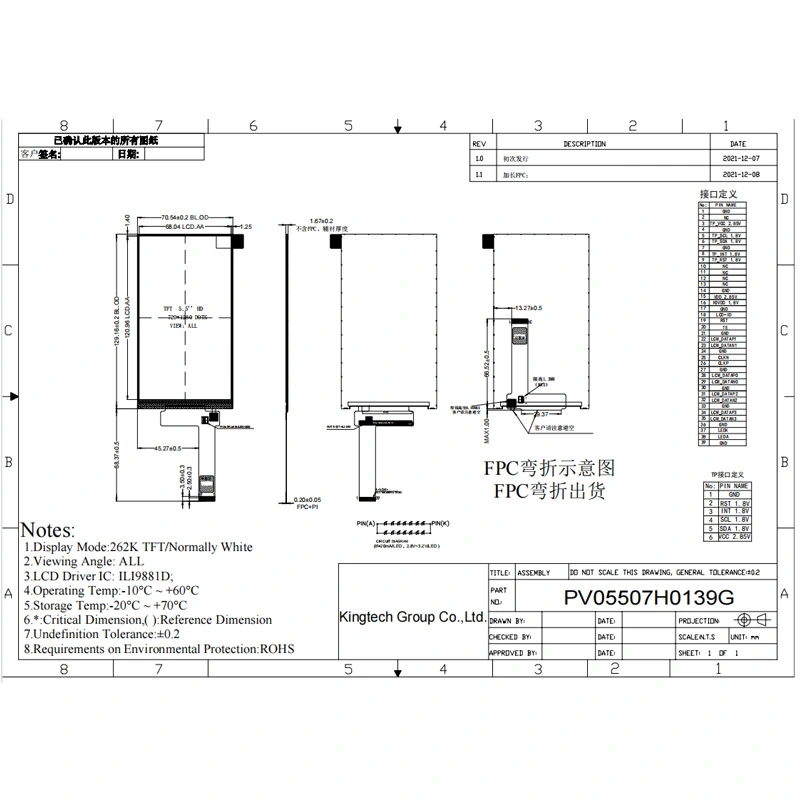

Specification of  5.5 Inch 720x1280 LCD Display

Item5.5 inch 720x1280 LCD module
Model NoPV05507H0139G
Resolution720x1280

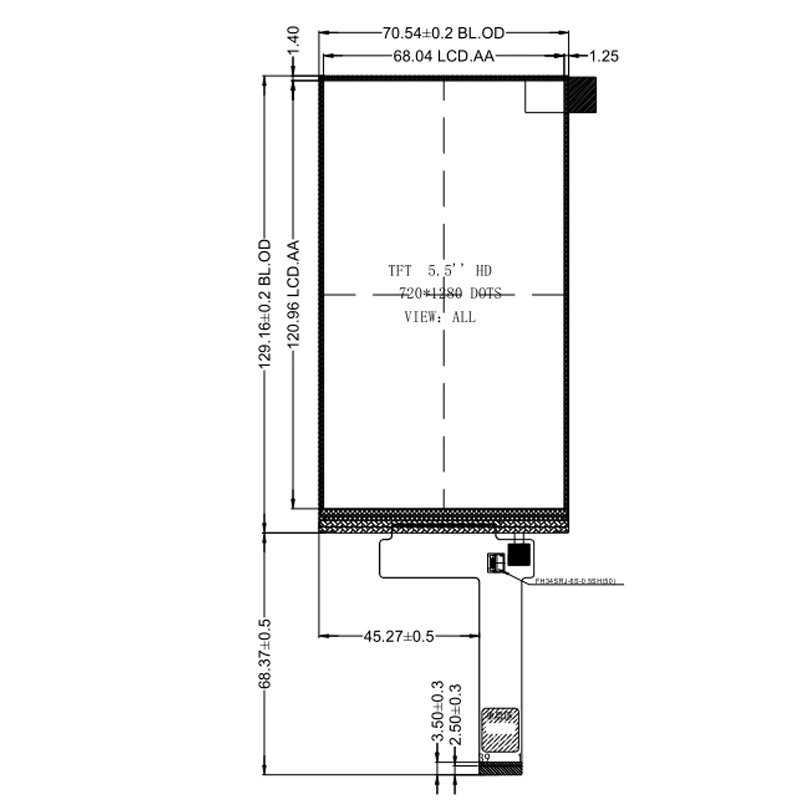

Outline Dimension70.54*129.16*1.67
Active Area(mm)68.04*120.96
InterfaceMIPI interface
Driver ICILI9881D
Viewing AngleAll
LED life30000h
Display ModeTransmissive
PIN39
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
TouchscreenCan custom capacitive/resistive touchscreen


Application of  5.5 Inch 720x1280 LCD Display

  • The 5.5 inch 720x1280 LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
