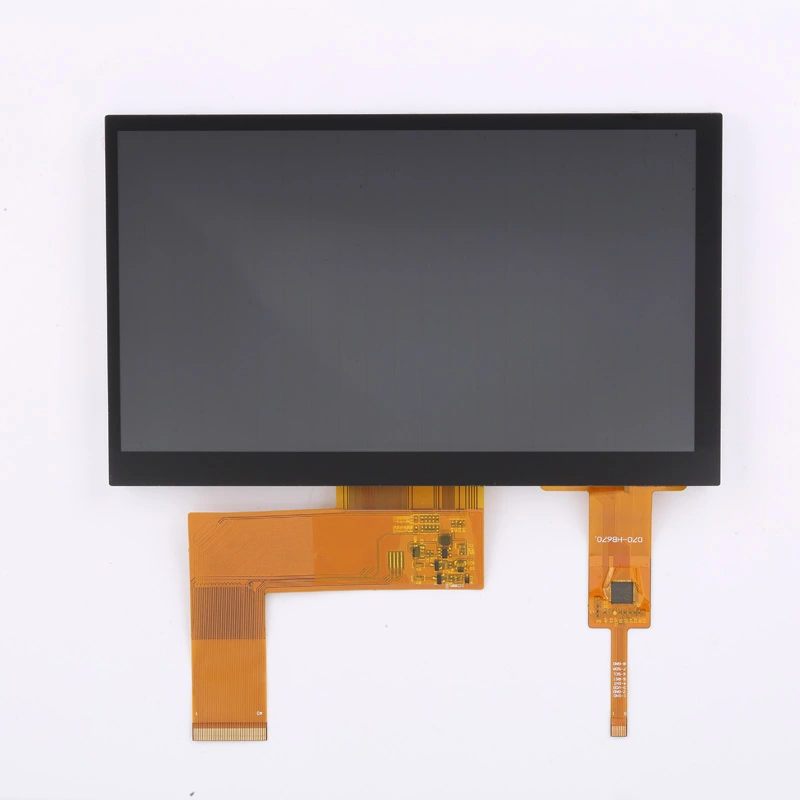

Kingtech 7inch 800x480 TN capacitive touch screen supply is very stable. This display is a very traditional 7inch display. The life-time is 30000h, and the brightness can reach to 1000nits sunlight readable. It has HDMI board and can connect to the raspberry pi. The 7inches screen can support resistive touch and capacitive touch. Kingtech can also custom the 7inch touch according to the customer's requirements.

Features of 7-PV07002LZR40B-CT

  • 40PIN Classic design

  • 800x480/WVGA

  • Stable supply

  • HDMI board/Convert board

  • Support resistive touch and capacitive touch

  • High brightness/Sunlight readable/outdoor/1000nits

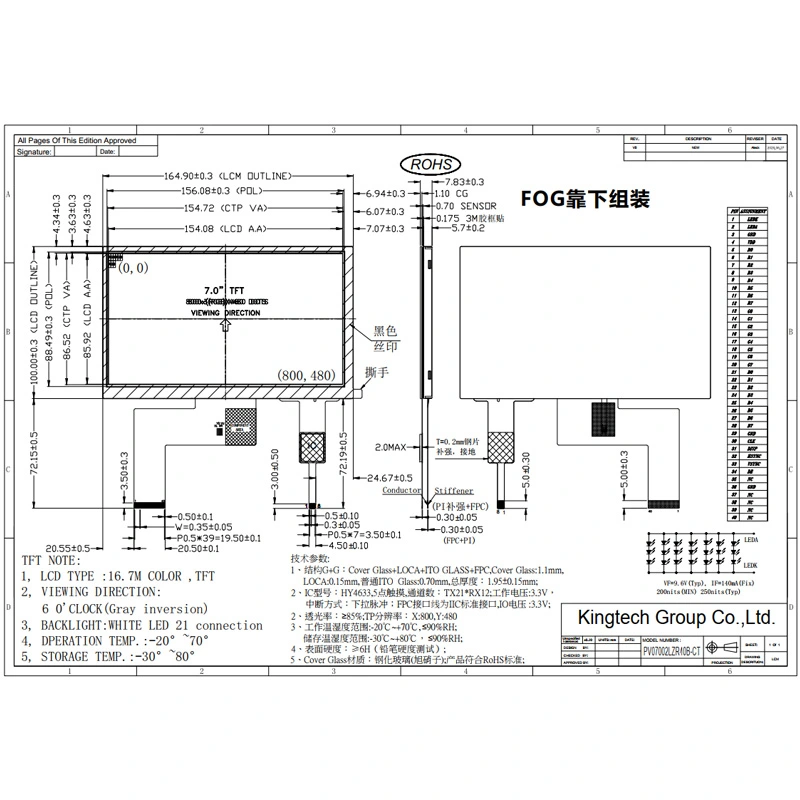

Specification of 7-PV07002LZR40B-CT

Item7inch 800x480 capacitive touch screen
Model NoPV07002LZR40B-CT
Outline Dimension164.9*100*7.83
Active Area(mm)154.08*85.92
Interface24-bit Parallel RGB Interface
Viewing Angle12 O'clock
LED life30000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board/HDMI Board
TouchscreenCapacitive touchscreen

Application of 7-PV07002LZR40B-CT

  • The 7inch 800x480 40pin capacitive touch TFT LCD display can be used for agricultural equipment, medical device, game console and smart home, etc.
