Kingtech 4.0 inch 480*800 TFT display supply very stable. This 4.0 inch supports MIPI-2 Lanes interface. In addition, the 4.0 inch WVGA TFT display module brightness is 400 nits, and this 4.0 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
4.0 inchTFT display
480*800/WVGA
Stable supply
All/Full/Wide/IPS viewing angle
MIPI-2 Lanes interface
400nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
| Item | 4. 0 inch IPS 480*800 TFT display |

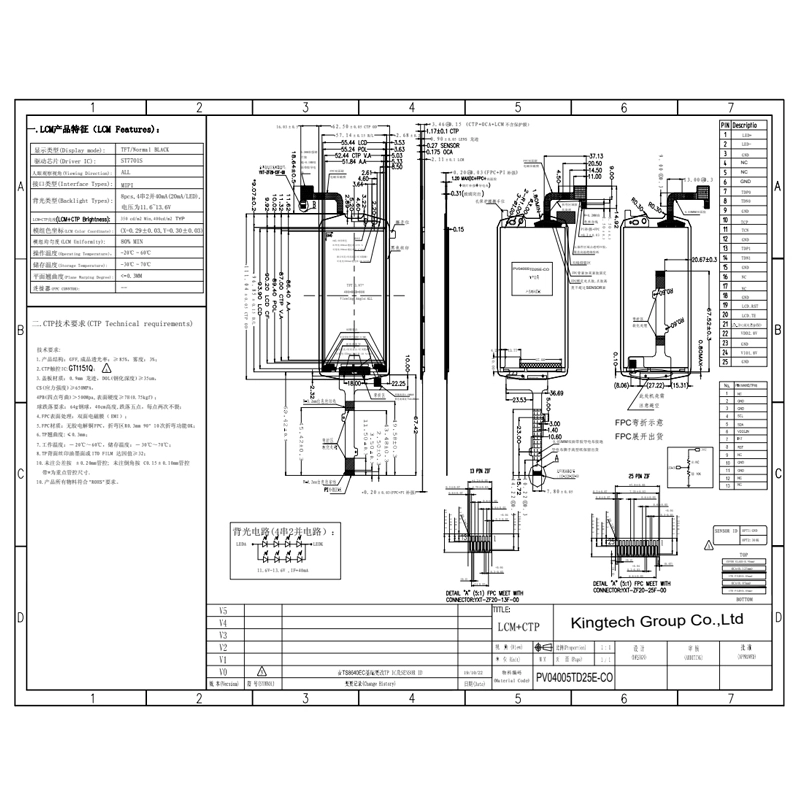

| Model No. | PV04005TD25E-CO |
| Resolution | 480*800/WVGA |
| Outline Dimension (mm) | 62.5*111.04*3.47 |
| Active Area (mm) | 51.84*86.4 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI-2 Lanes |
| Backlight | 4*2LED |
| Driving IC | ST7701S |
| PIN No. | 25 |
| Operating Temperature | -20~60C |
| Storage Temperature | -30~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 4.0 inch 480*800 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
