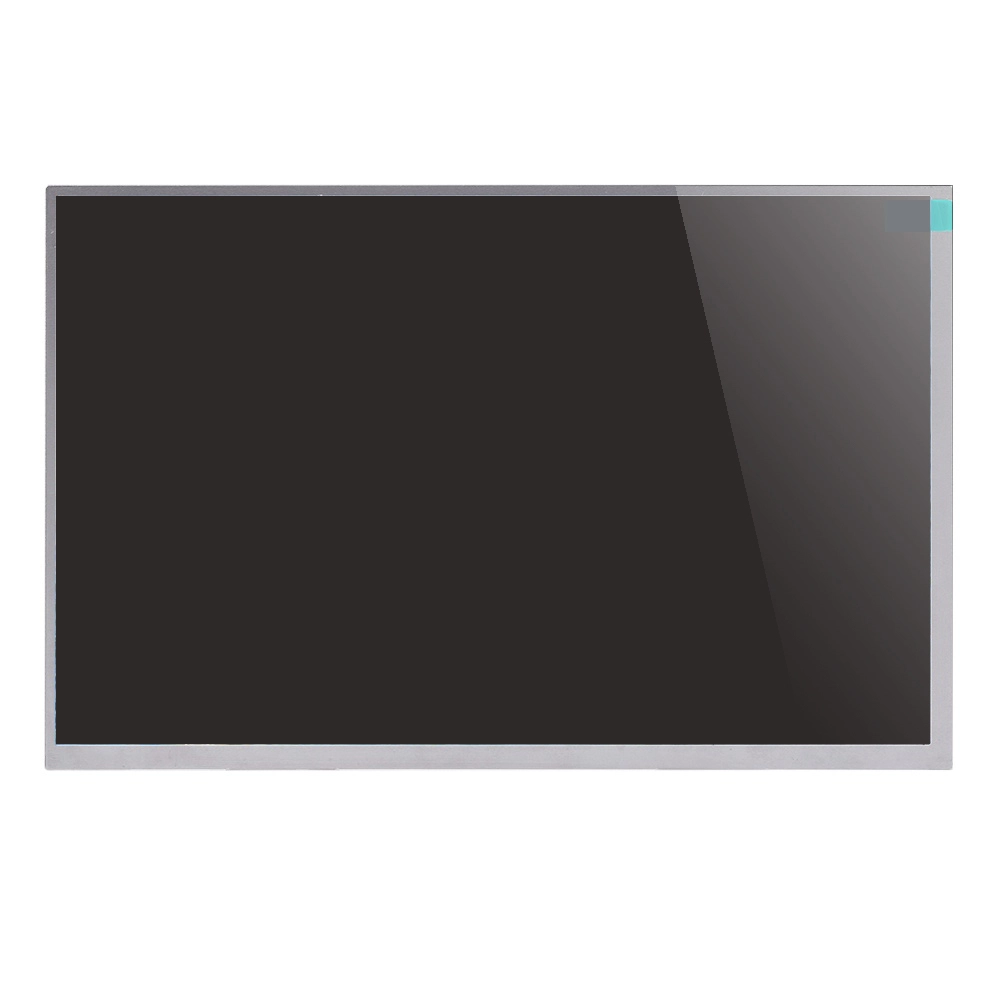

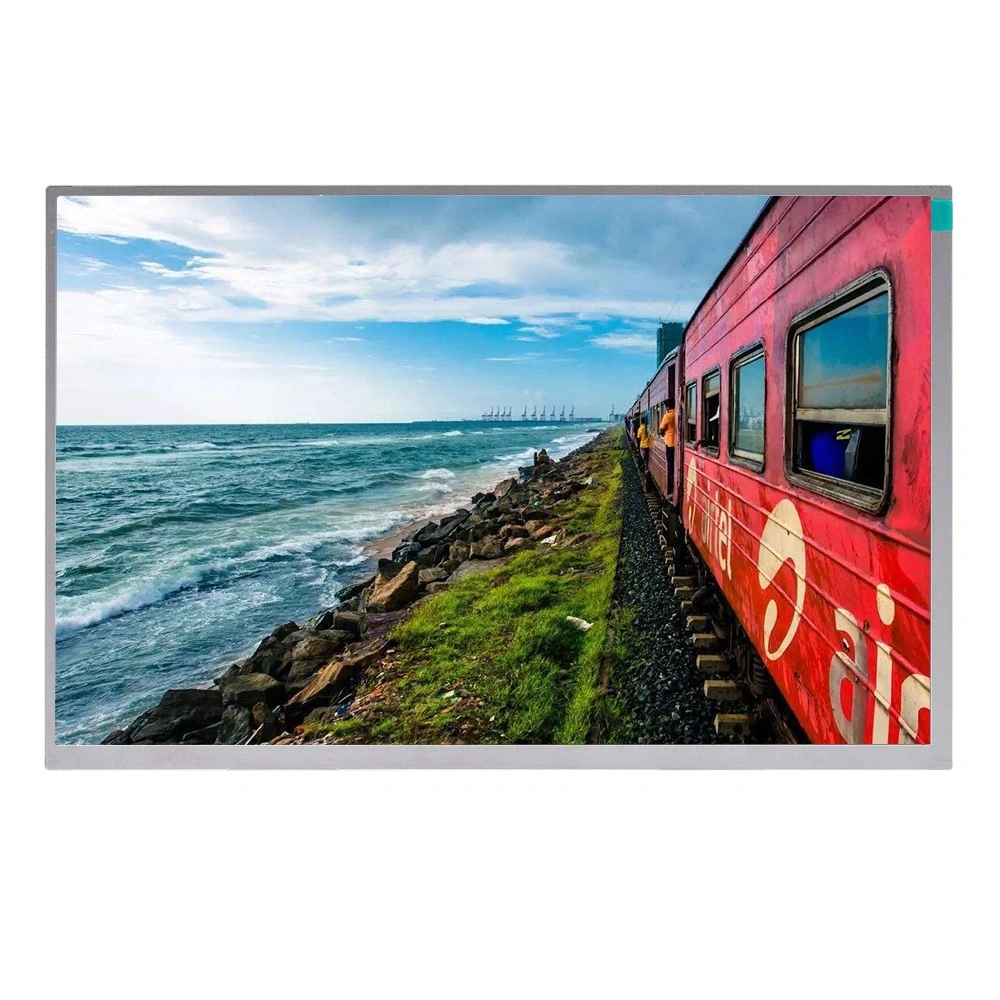

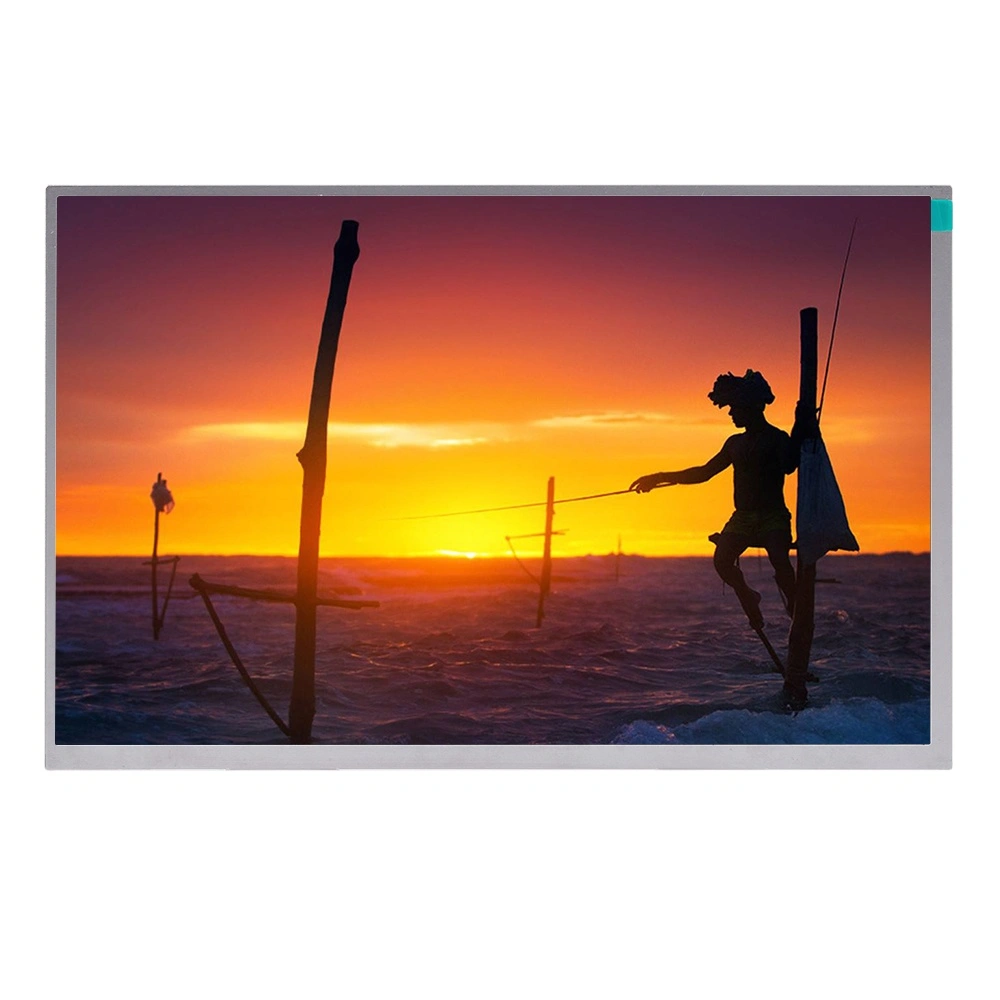

Kingtech 10.1 inch 1024*600 TFT display supply very stable. This 10.1 inch supports LVDS interface. In addition, the 10.1 inch 1024*600 TFT display module brightness is 950 nits, and this 10.1 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
10.1 inch TFT display
1024*600
Stable supply
All
LVDS interface
950nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| PV101020Y0140T | 10.1inch IPS 1024*600 TFT LCD display |
| Model No. | PV101020Y0140T |
| Resolution | 1024*600 |

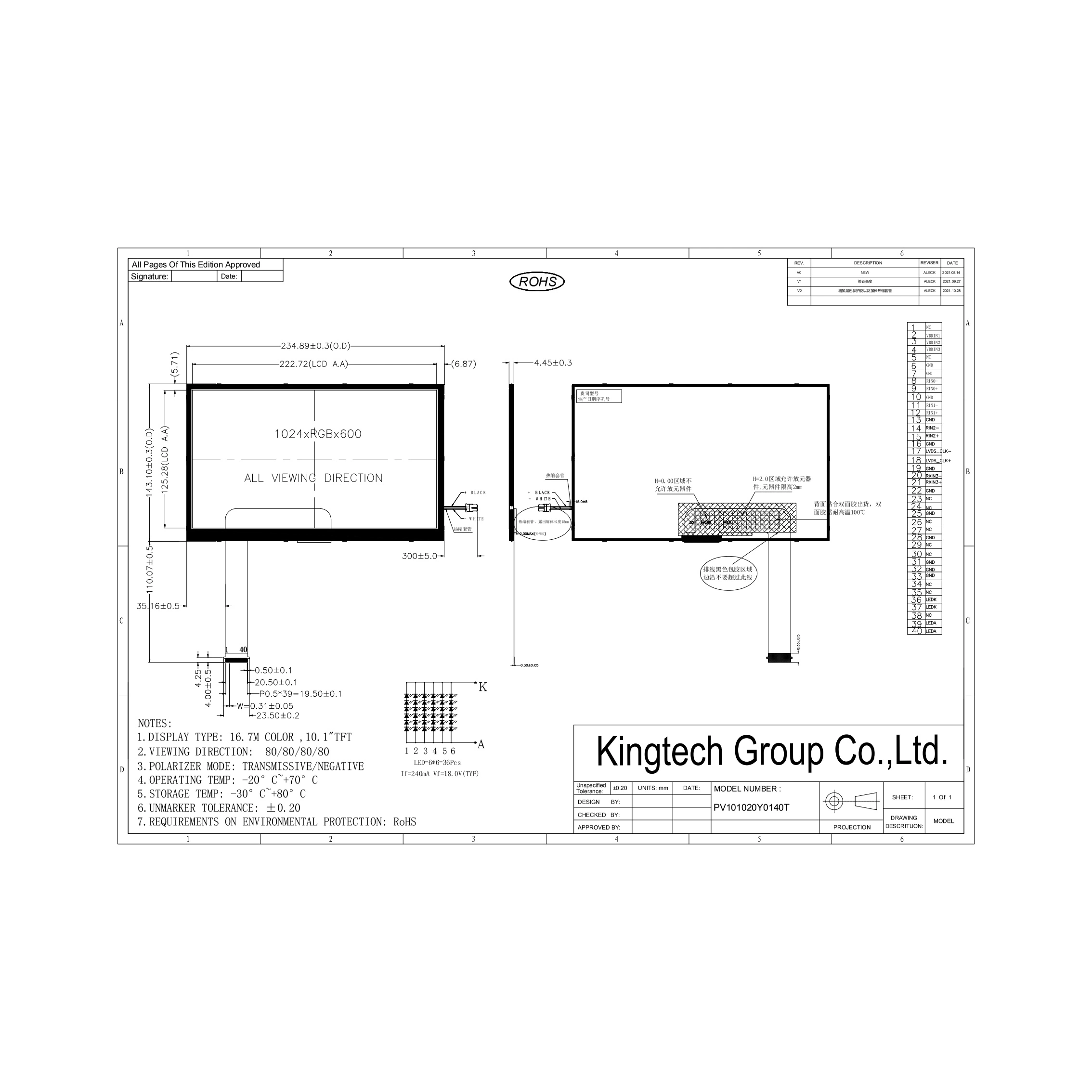

| Outline Dimension (mm) | 235*143*4.5 |
| Active Area (mm) | 222.72*125.28 |
| Viewing Angle | All |
| Brightness | 950nits |
| Interface | LVDS |
| Backlight | 6*6LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial |
The 10.1 inch 1024*600 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
