Kingtech 2.4 inch 240*320 TFT module display with capacitive touch supply very stable. This 2.4 inch supports MCU interface. In addition, the 2.4 inch TFT display module brightness is 640 nits, and this 2.4-inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, this 2.4inch has the existing capacitive touch and Kingtech also can customize capacitive touch according to the customer requirements.
TFT display
240*320 / QVGA
Stable supply
640nits high brightness / Outdoor / Sunlight readable
Free / IPS/ full / wide viewing angle
small/tiny display
MCU interface
Medical / Hand-held/ Industrial /POS machine
Capacitive touch
Get a Quote
| Item | 2.4 inch TFT display with capacitive touch |
| Model No | PV2411HZ40L-CO |
| Resolution | 240*320 |

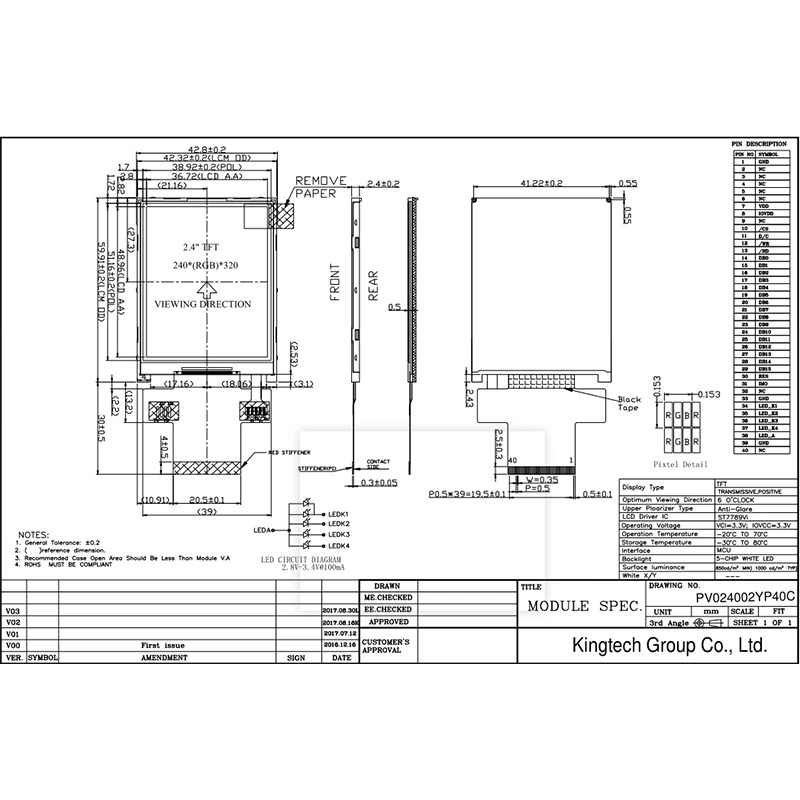

| Outline Dimension | 44.23*76.73*3.33 |
| Active Area(mm) | 36.72*48.96 |
| Brightness | 640 nits |
| Viewing Angle | All |
| Interface | MCU interface |
| Driving IC | ILI9341V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Capacitive touch screen |
The 2.4 inches 240*320 TFT display module can be used for medical, Hand-held, Industrial and POS machines.
