Kingtech 5.0 inch 1080*1920 is AMOLED type. This 5.0 inch LCD screen supports the MIPI interface. In addition, the 5inch module used RM67198 driver IC, it’s very thinner, only 0.66mm. The 5inch display is full/all/wide IPS viewing angle. For the touch part, Kingtech can custom the touch according to the customer's requirements.
IPS / Full/ All/ Wide viewing angle
1080*1920 resolution
AMOLED type
Supper thinner 0.66mm
RM67198 IC

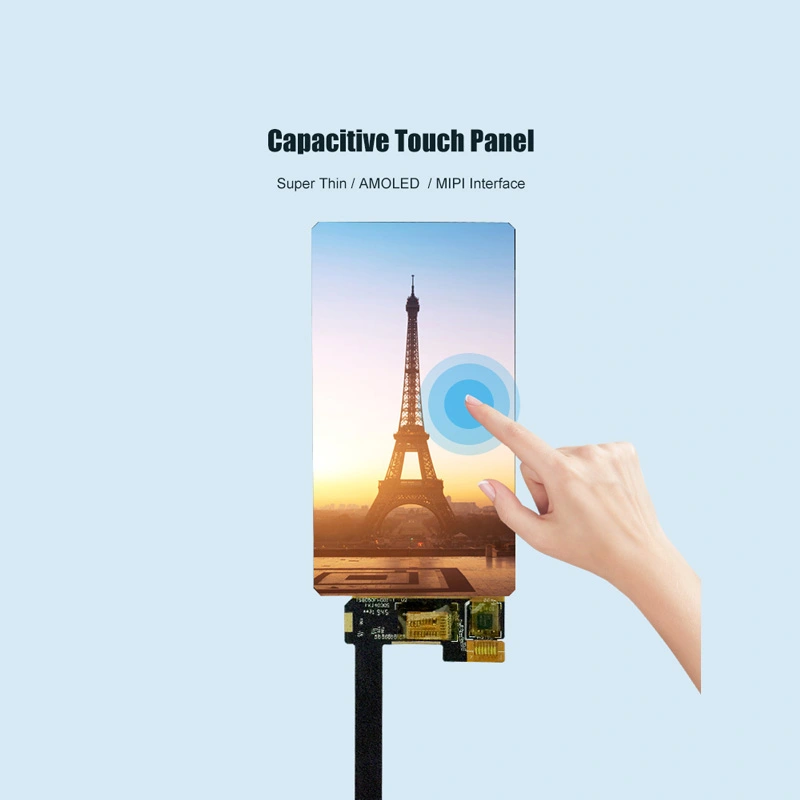

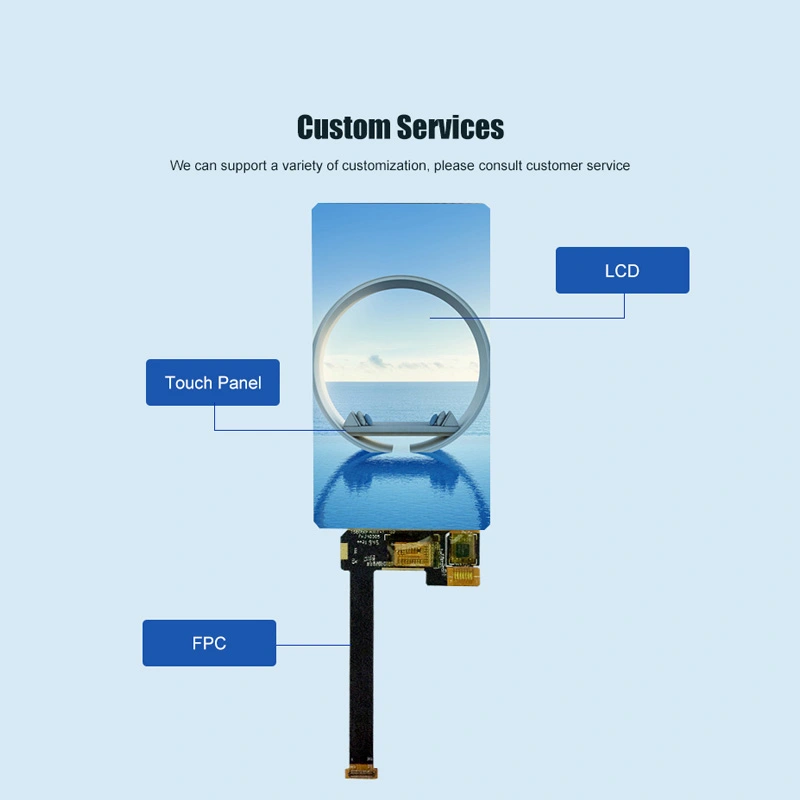

Can custom capacitive touchscreen
Mipi interface

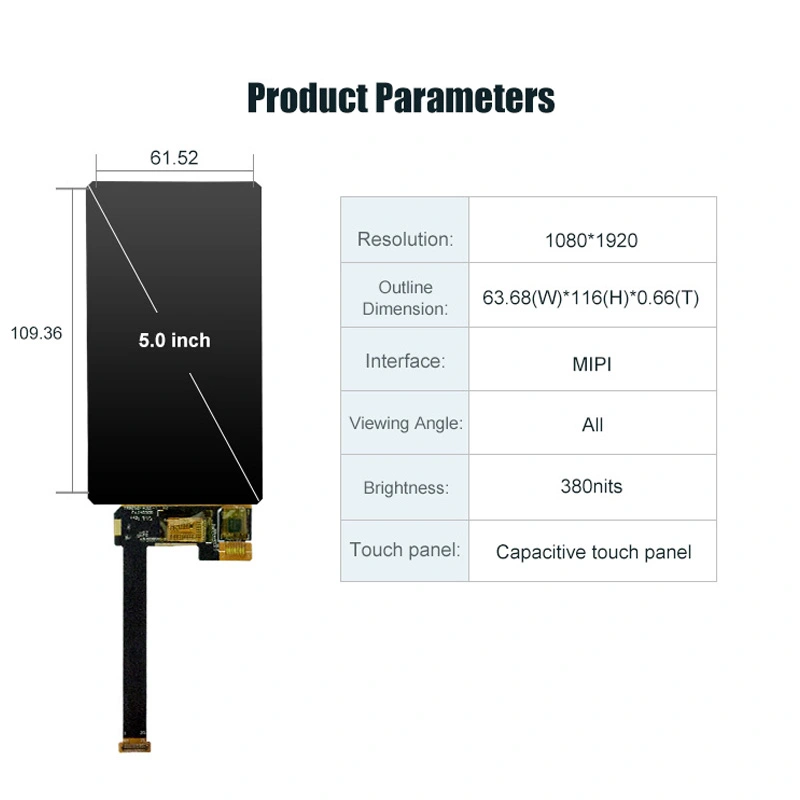

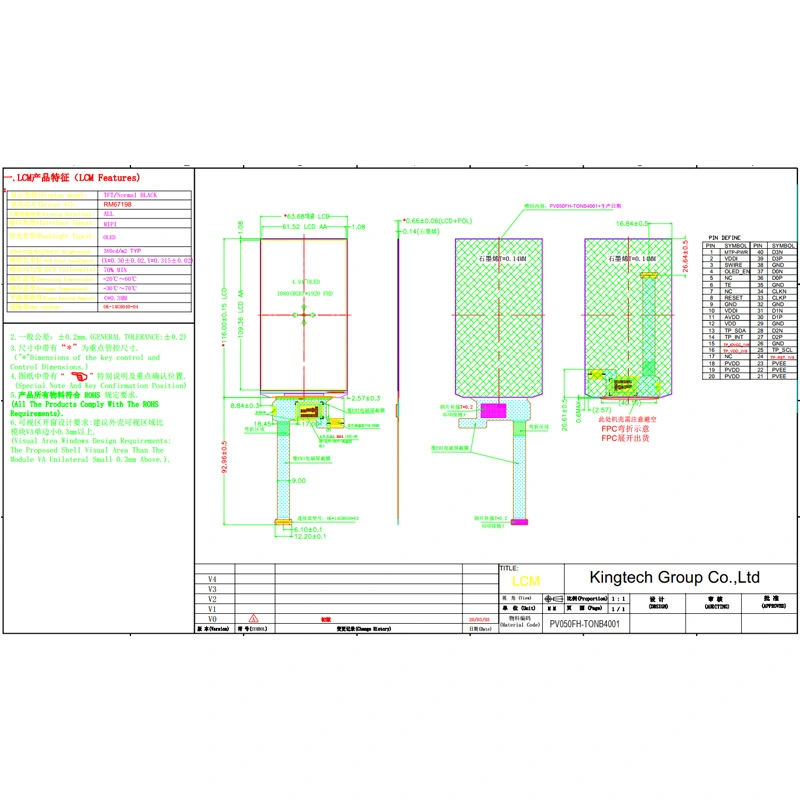

| Item | 5.0 inch 1080*1920 AMOLED display |
| Model No | PV050FH-TONB4001 |
| Resolution | 1080*1920 |
| Outline Dimension | 65.5*120*0.66 |
| Active Area(mm) | 61.52*109.36 |
| Interface | MIPI |
| Brightness | 430nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive |
| PIN | 40 |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.0 inch 1080*1920 OLED LCD module can be used for agricultural equipment, medical device, game console and smart home, etc.
