Kingtech 4.3 inch 480x272 TN LCD display supply is very stable. This 4.3-inch module supports a 24bit RGB interface. In addition, the 4.3inch tft screen used ST7283 driver IC. For the touch part, the 4.3inch LCD has an existing resistive and capacitive touch panel. Kingtech can customize the touch panel according to the customer's requirements.
6 O'clock /Normally white/TN
480x272 / WQVGA resolution
ST7283 IC
Existing resistive touch panel
RGB interface
Get a Quote

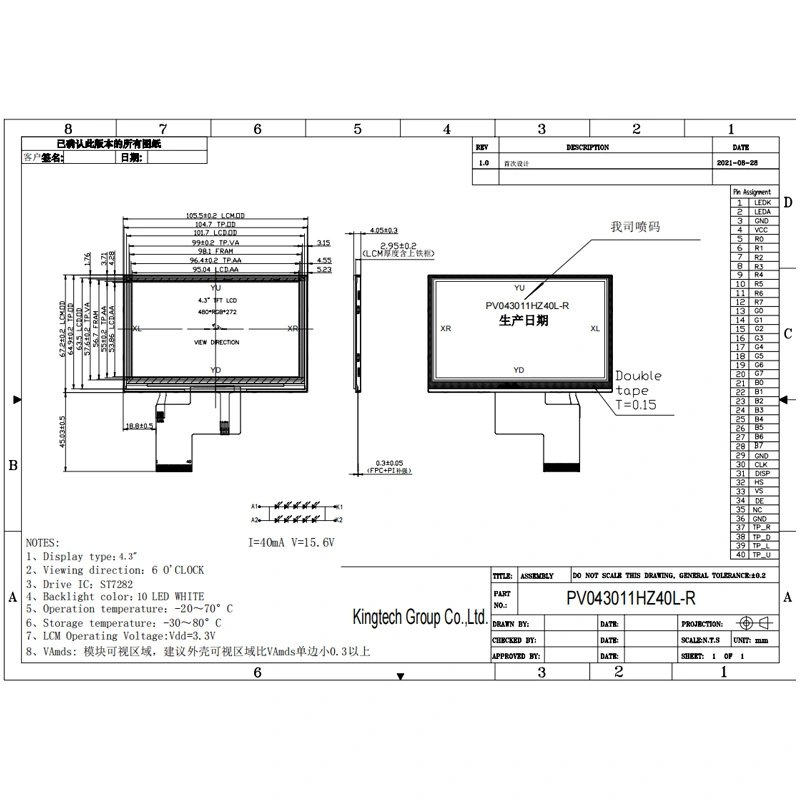

| Item | 4.3-inch 480X272 RGB interface LCD module |
| Model No | PV043011HZ40L-R |
| Resolution | 480x272 / WQVGA |
| Outline Dimension | 105.5*67.2*4.05 |
| Active Area(mm) | 95.04*53.86 |
| Interface | RGB |
| Viewing Angle | 6 O'clock |
| LED life | 30000h |
| Display Mode | Transmissive |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.3 inch 480x272 6 o'clock LCD module can be used for agricultural equipment, medical device, game console and smart home, etc.
