10.1-PV101037Y0130A

Kingtech 10.1 inch 1024*600 TFT display supply very stable. This 10.1 inch WSVGA LCD module supports MIPI interface. In addition, the 10.1 inch 1024*600 TFT display module brightness is 450 nits, and this 10.1 inch display is 6 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.


  • 10.1 inchTFT display

  • 1024*600/WSVGA

  • Stable supply

  • 6 O'clock

  • MIPI interface

  • 450nits brightness/Sunlight readable/High brightness

  • Can custom resistive touch and capacitive touch

  • Medical, hand-held device, industrial

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

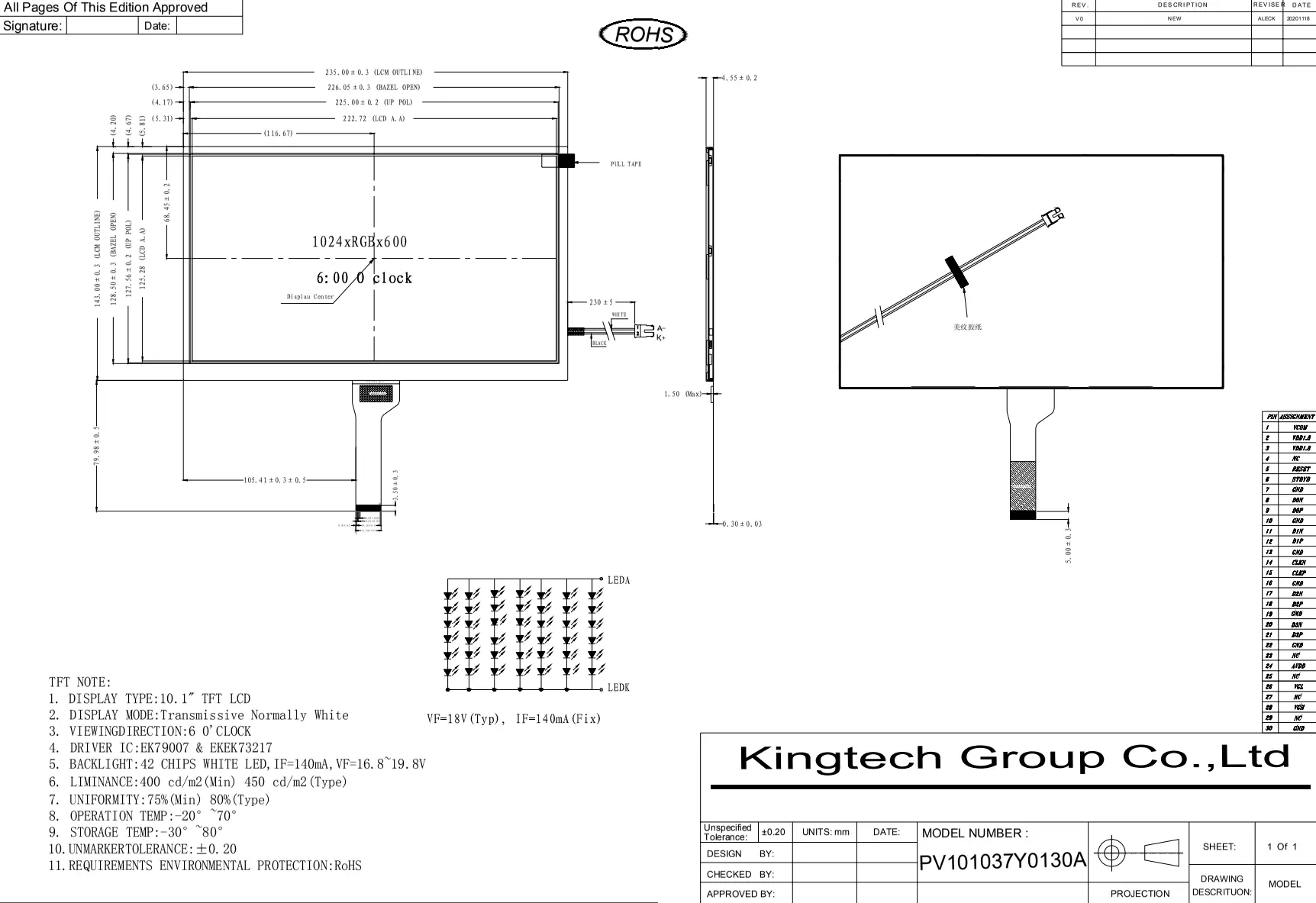

Specification of 10.1-PV101037Y0130A

Item10.1 inch TN 1024*600 TFT display
Model No.PV101037Y0130A
Resolution1024*600
Outline Dimension (mm)235*143*4.55
Active Area (mm)222.72*125.28
Viewing Angle6 O'clock
Brightness450nits
InterfaceMIPI
Backlight6*7LED
Driving IC/
PIN No.30
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial, others


Application of 10.1-PV101037Y0130A

  • The 10.1 inch 1024*600 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
