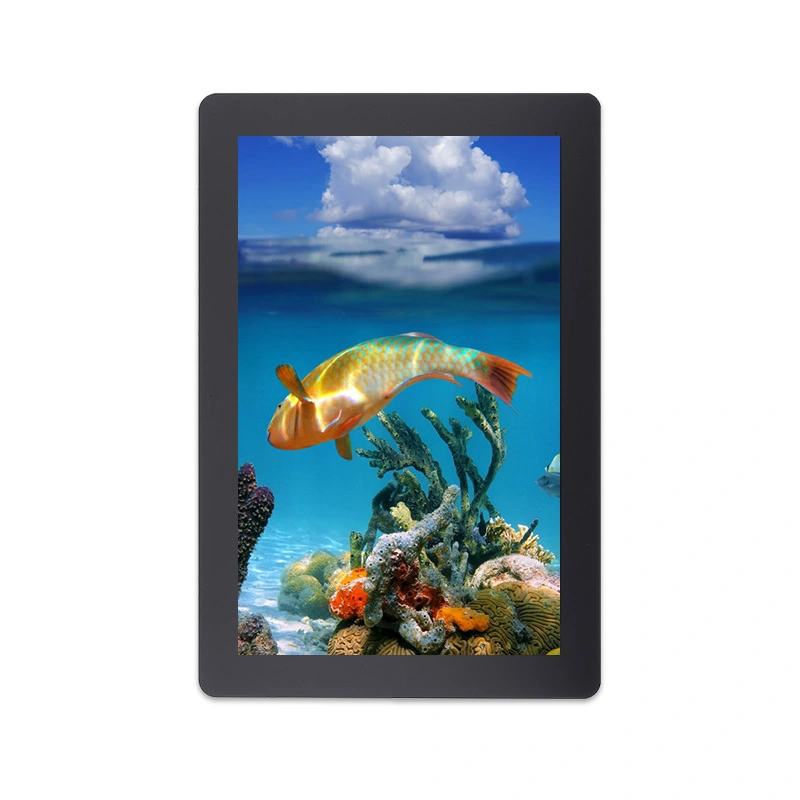

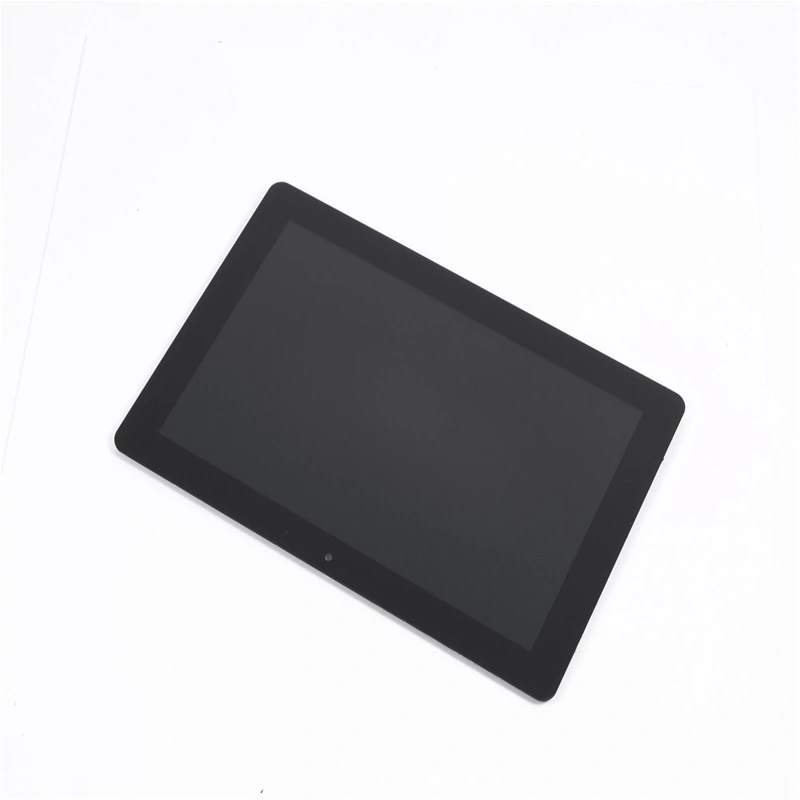

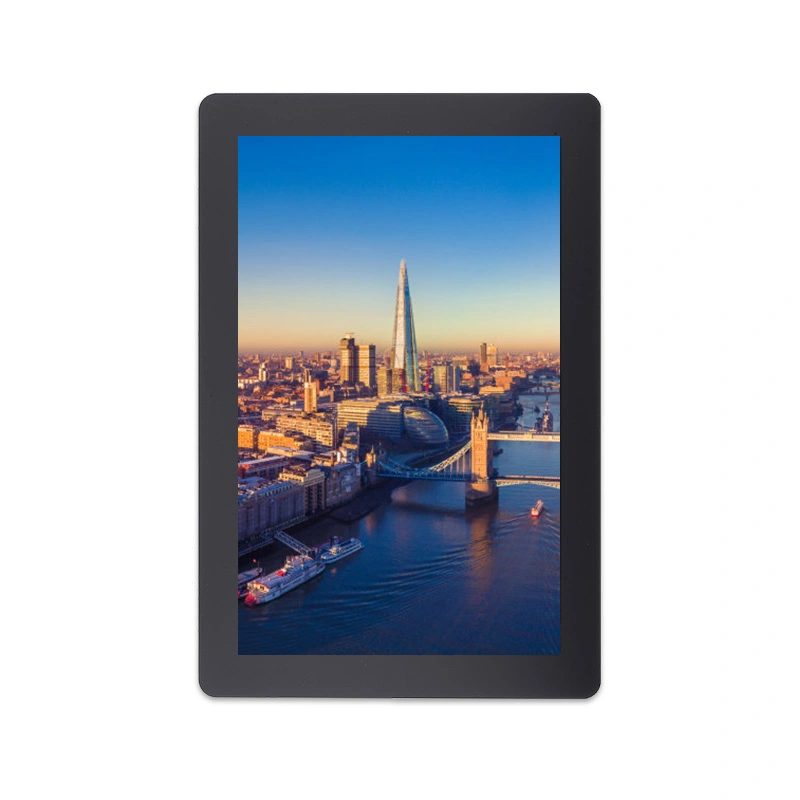

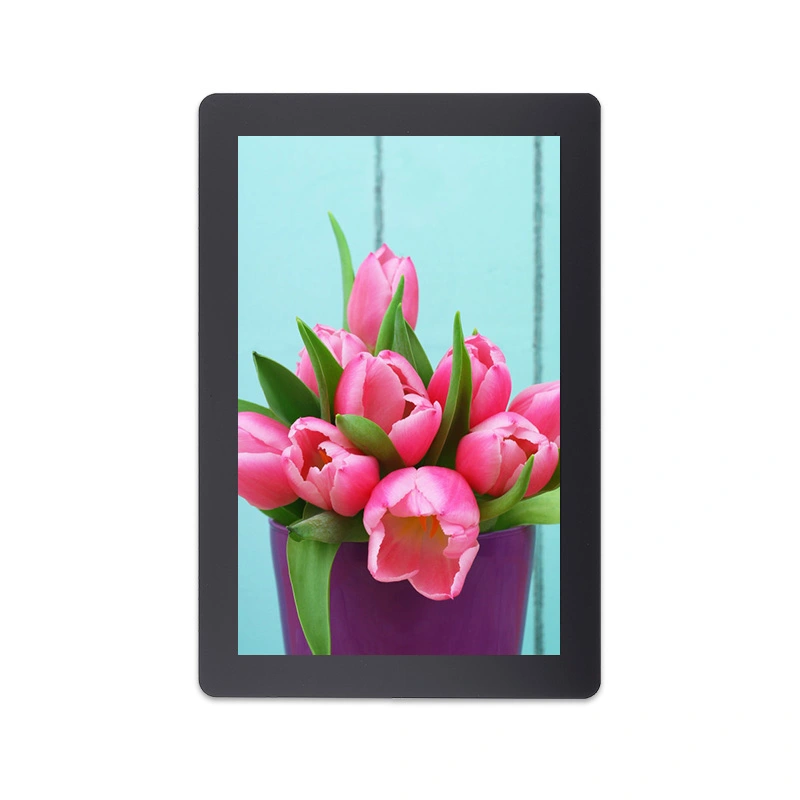

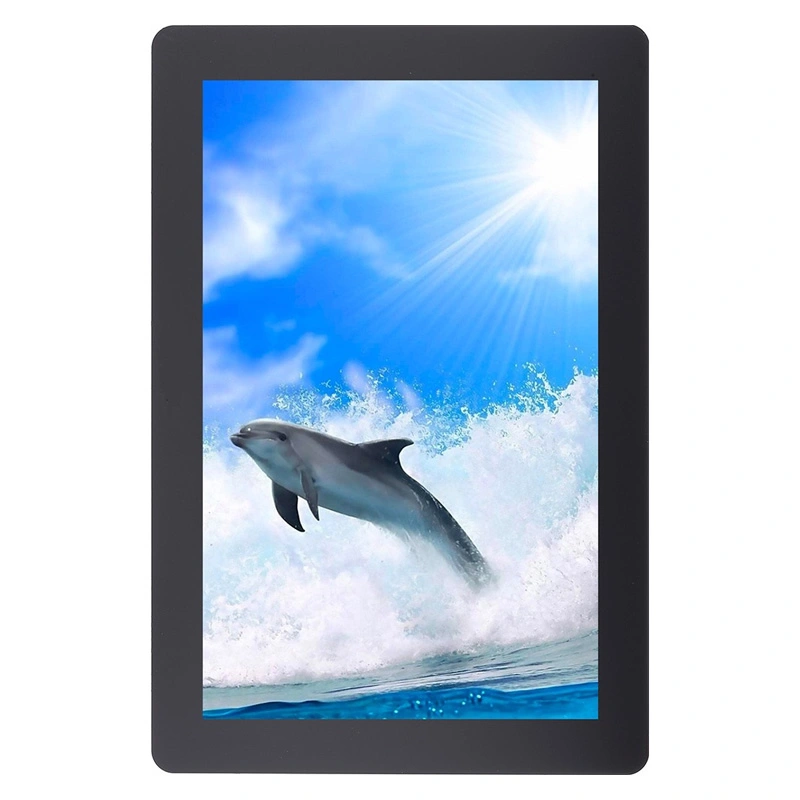

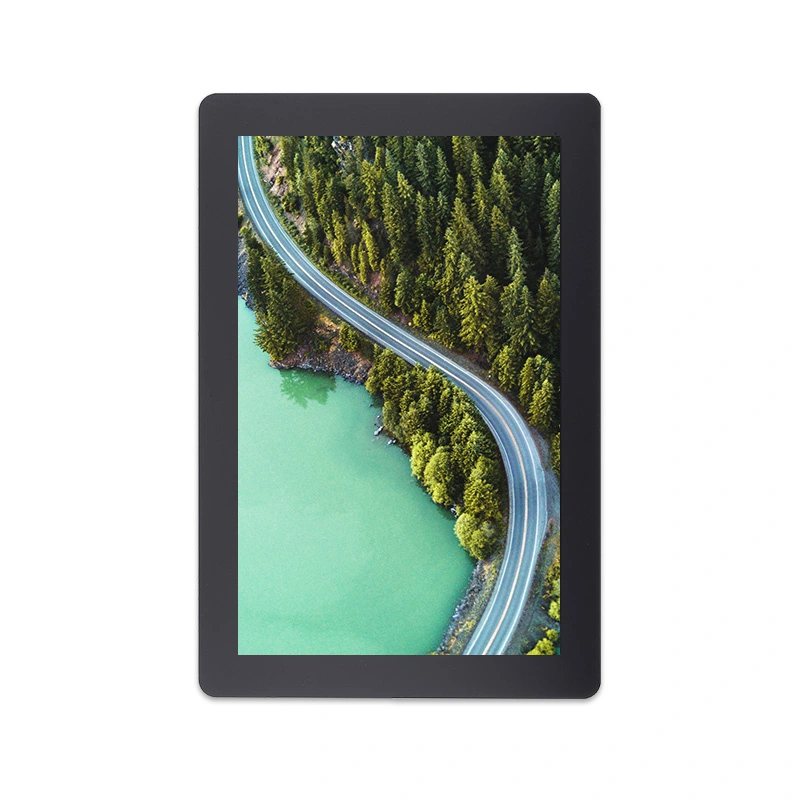

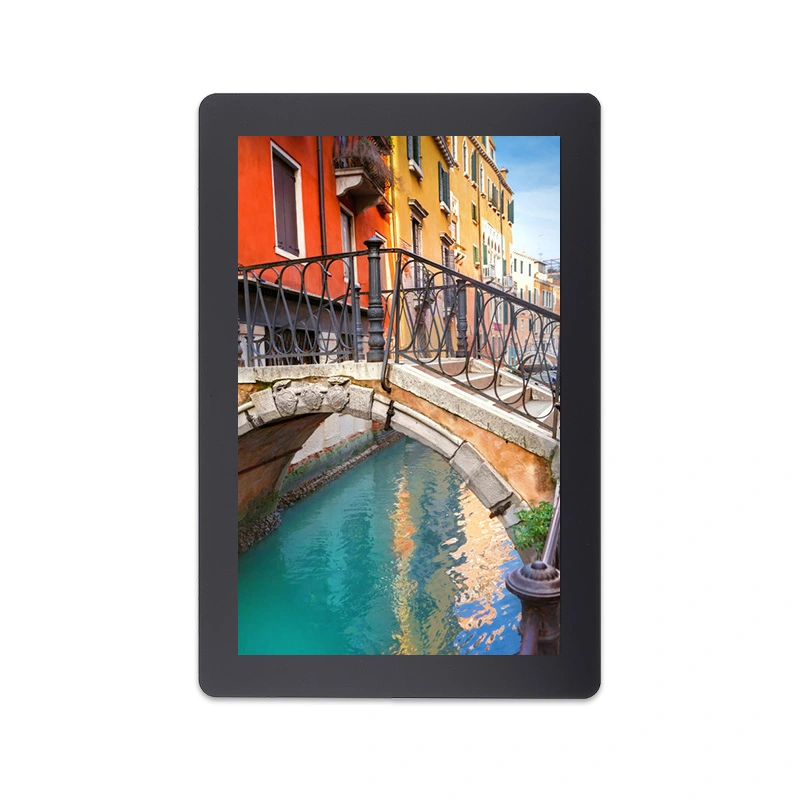

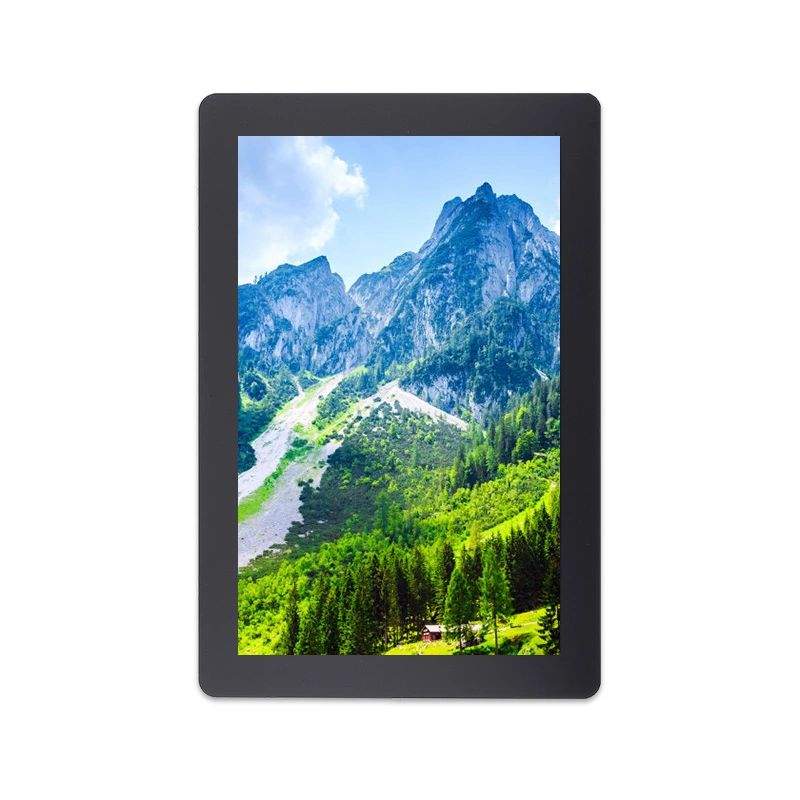

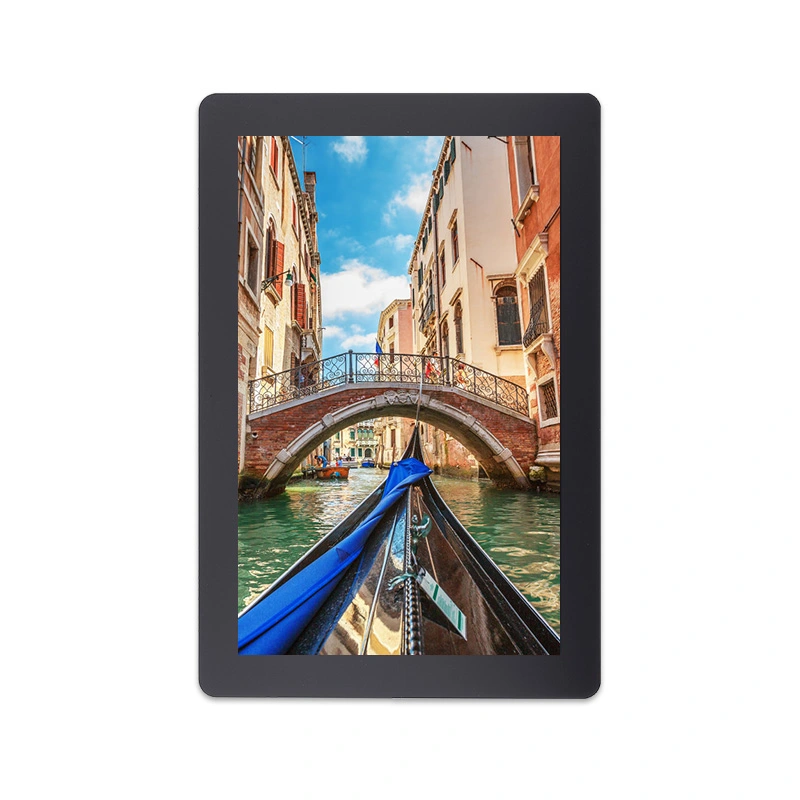

Kingtech 10.1inch 800x1280 IPS All/free/wide viewing angle TFT LCD display is one of our main products. The 10.1inch TFT LCD module has a special resolution of 800x1280, most customers use it for logistics device.
The 10.1inch driver IC is OTM1287A and the 10.1inch IPS LCD screen has a capacitive touch and also can custom according to customer requirements.
Kingtech Diaplay, which is a LCD display company, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
800x1280 resolution /High definition resolution
All / Free / Wide viewing angle
IPS type
MIPI interface
Portrait / vertical display
Support capacitive touch
Get a Quote
Documentation
| Item | 10.1 inch 800x1280 portrait display |
| Model No | PV10108TD31F-C1 |
| Resolution | 800x1280 |
| Outline Dimension | 146.16(W)*226.46(H)*2.54(T) |
| Active Area(mm) | 135.36(H) *216.58(V) |
| Interface | MIPI VIDEO MODE |
| Viewing Angle | All |
| Driving IC | OTM1287A |
| Display Mode | Transmission / Normally Black |
| Operating Temperature | -0 °C ~ 50°C |
| Storage Temperature | -10°C ~ 60°C |
| Brightness | 330nits |
| Touch screen | Capacitive touch screen |
The 10.1inch 800x1280 IPS TFT LCD display ca
