Kingtech 3 inch 360*640 portrait TFT display supply very stable. This 3 inch supports MIPI interface. In addition, the 3 inch 360*640 TFT display module brightness is 300 nits, and this 3 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
3 inch TFT display
360*640
Stable supply
All/Full/Wide/IPS viewing angle
MIPI interface
300nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote

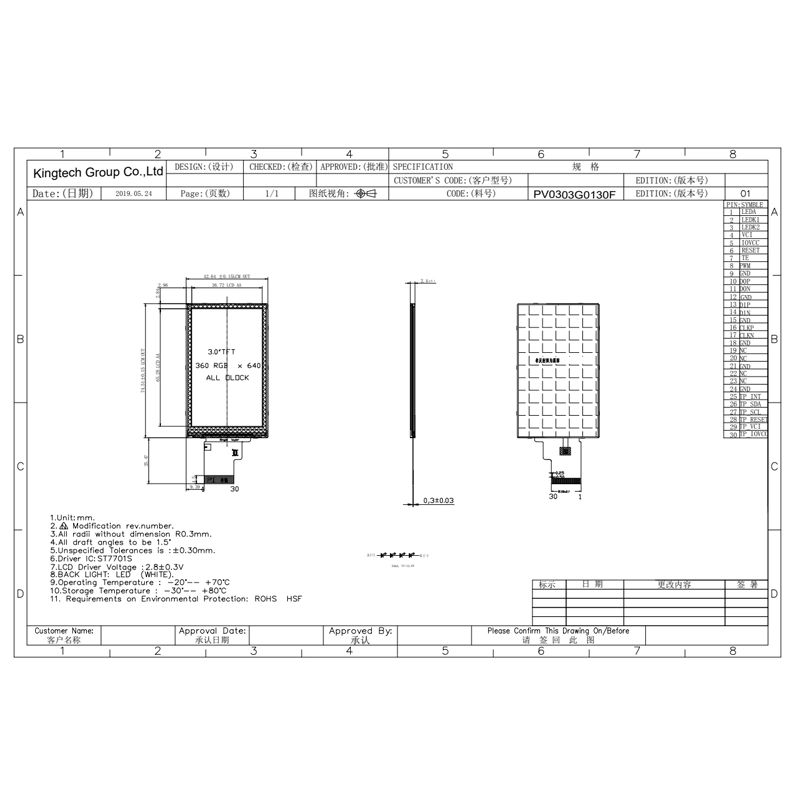

Documentation
| Item | 3 inch IPS 360*640 TFT display |
| Model No. | PV0303G0130F |
| Resolution | 360*640 |
| Outline Dimension (mm) | 42.64*74.51*2.4 |
| Active Area (mm) | 36.72*65.28 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | MIPI |
| Backlight | 4*1LED |
| Driving IC | ST7701S |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Hand-held device, industrial, smart home |
The 3 inch 360*640 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
