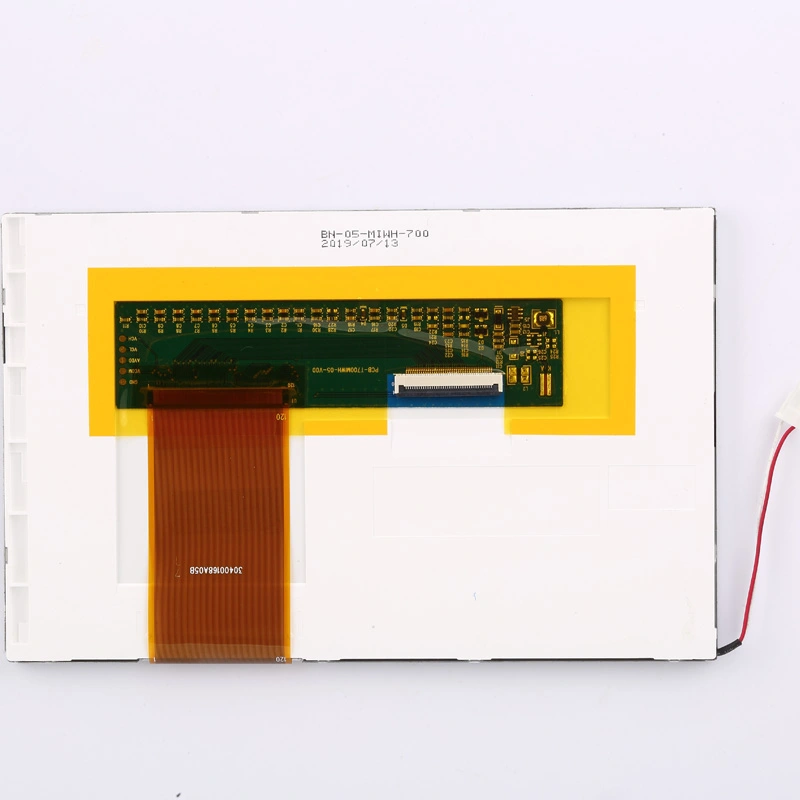

Kingtech 7inch 800x480 40pin 18bit RGB interface LCD display supply very stable. It is an alternative solution for Empire. The 7inch TFT module driver IC is HX8262+HX8678. The 7inch WVGA lifetime is 50000h. For the touch part, Kingtech can custom the 7inch touch panel according to the customer's requirements.

Features of 7-PV07005YP40F

  • Classic 40 pin FPC

  • 800X480 /WVGA resolution

  • Stable supply

  • 18bit RGB

  • The alternative solution of Empire

  • Can custom capacitive touch screen

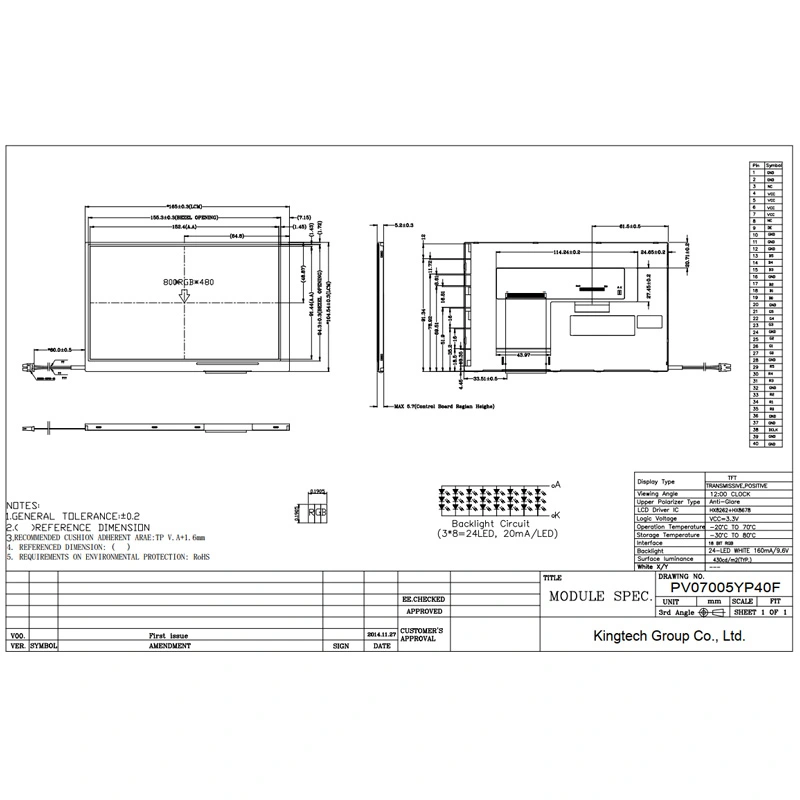

Specification of 7-PV07005YP40F

Item7inch 800x480 40pin 18bit RGB display
Model NoPV07005YP40F
Outline Dimension165.00*104.54*5.20
Active Area(mm)152.40*91.44
Interface18bit RGB
Driver ICHX8262+HX8678
Viewing Angle12 o'clock
LED life50000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
TouchscreenCan custom resistive and capacitive touchscreen

Application of 7-PV07005YP40F

  • The 7inch 800x480 LCD display can be used for agricultural equipment, medical device, game console, and smart home, etc.
