Kingtech 3.5 inch 480*800 TFT display supply very stable. This 3.5 inch supports RGB interface. In addition, the 3.5 inch 480*800 TFT display module is All/full/wide/IPS viewing type and the driver IC is ST7701SN. For 3.5inch WVGA LCD module display touch part, we can also customize capacitive and resistive touch according to the customer requirements.
3.5 inchTFT display
480*800/WVGA
Stable supply
All/full/wide/IPS viewing type
RGB interface
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 3.5 inch IPS 480*800 TFT display |

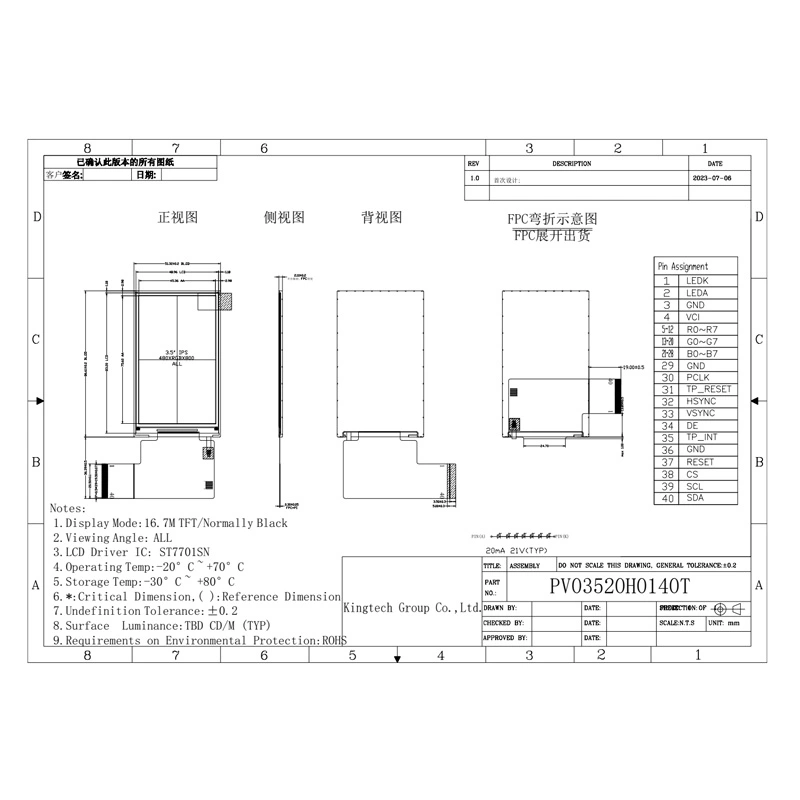

| Model No. | PV03520H0140T |
| Resolution | 480*800/WVGA |
| Outline Dimension (mm) | 51.32*86.61*2.1 |
| Active Area (mm) | 45.36*75.60 |
| Viewing Angle | All |
| Brightness | / |
| Interface | RGB |
| Backlight | 7*1LED |
| Driving IC | ST7701SN |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 3.5 inch 480*800/WVGA TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
