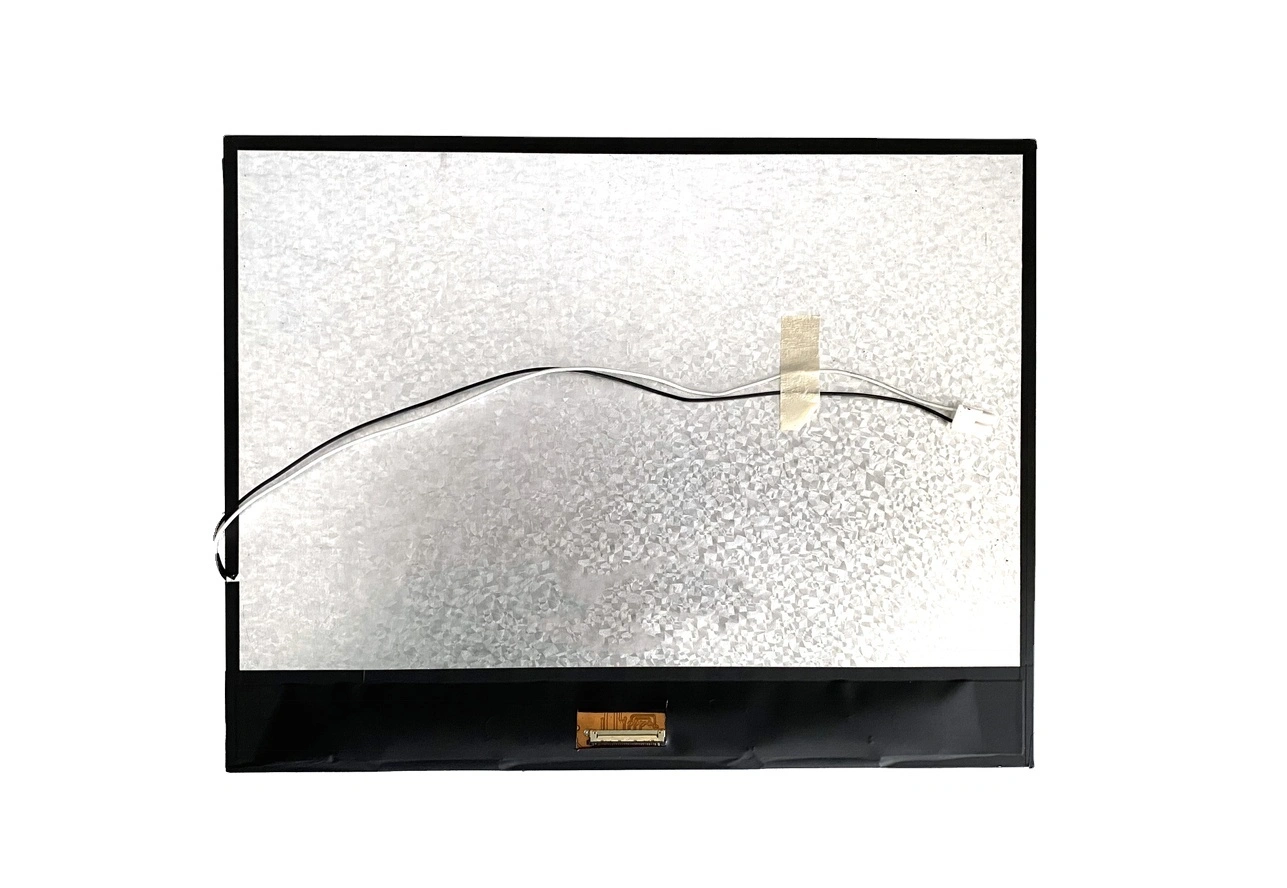

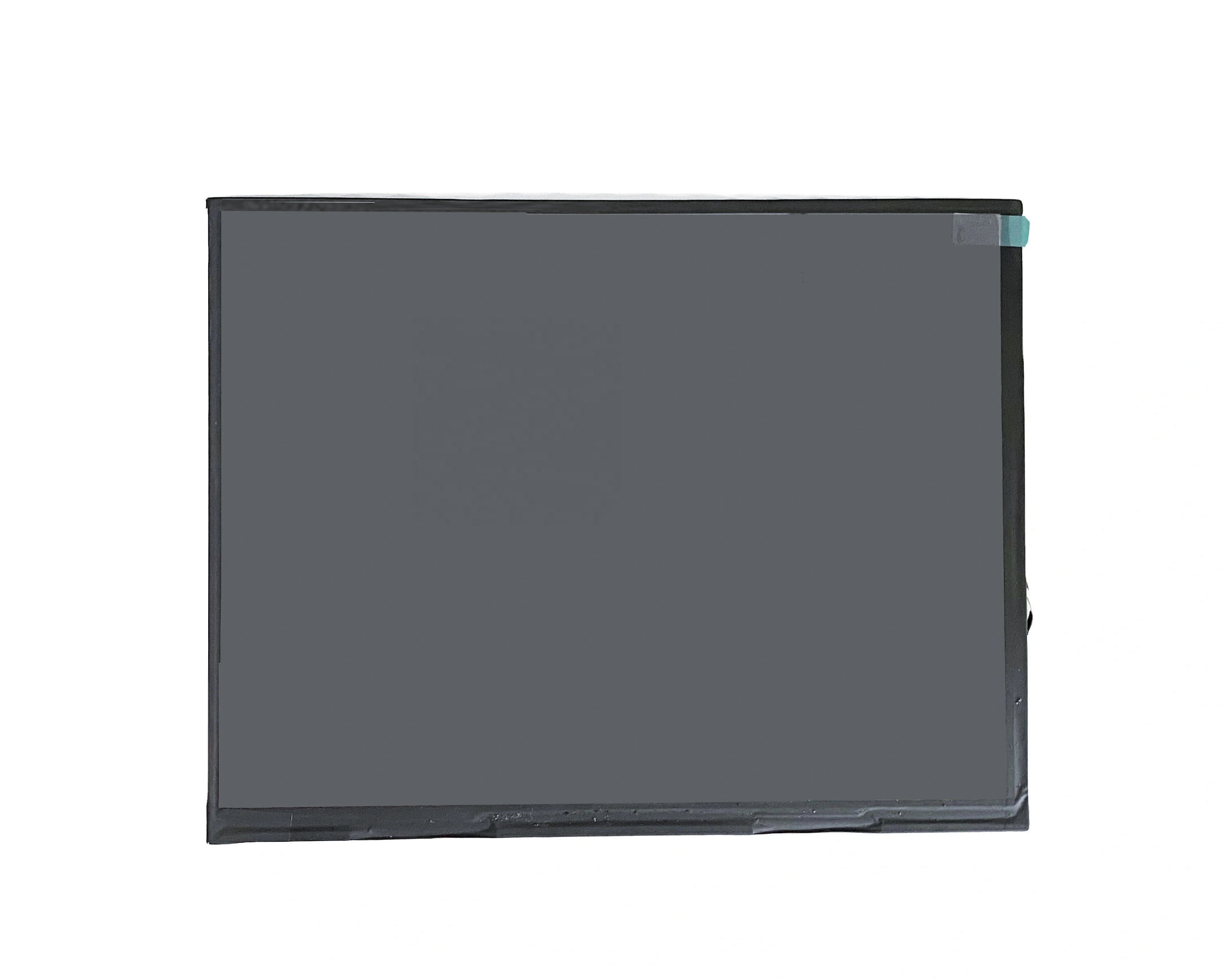

Kingtech 9.7 inch 1024*768 TFT display supply very stable. This 9.7 inch XGA TFT LCD module supports LVDS interface. In addition, the 9.7 inch 1024*768 TFT display module brightness is 350 nits, and this 9.7 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
9.7 inch TFT display
1024*768/XGA
Stable supply
All/Full/Wide/IPS viewing angle
LVDS interface
350nits brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 9.7inch IPS 1024*768 TFT LCD display |
| Model No. | PV09705W0230E |
| Resolution | 1024*768 |

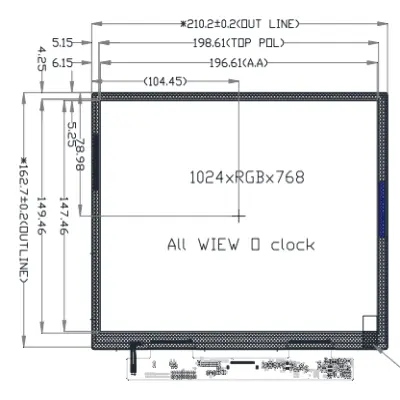

| Outline Dimension (mm) | 210.2*162.7*2.8 |
| Active Area (mm) | 196.608*147.456 |
| Viewing Angle | All |
| Brightness | 350nits |
| Interface | LVDS |
| Backlight | 6*6LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 9.7 inch 1024*768 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
