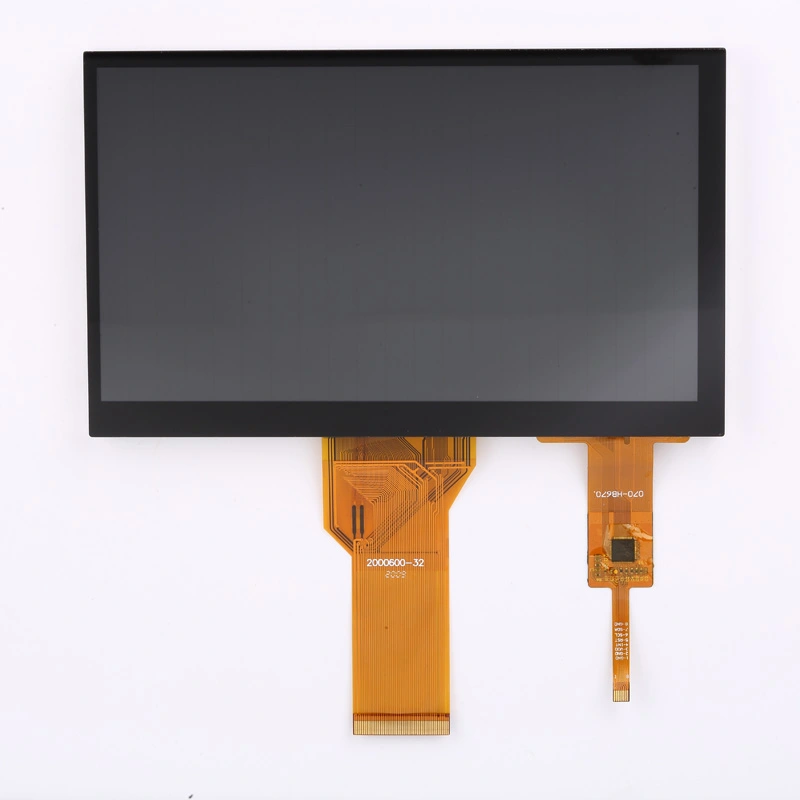

Kingtech 7inch 800x480 50pin long FPC capacitive touch screen supply is very stable. This 7inch WVGA display supports RGB interface and HDMI convert board. It has HDMI board and can connect to the raspberry pi. The lifetime is 30000h, and the brightness is 500nits, it can be used under the sun and outdoor. For the touch part, Kingtech can custom the touch according to the customer's requirements.

Features of 7-PV0705YX50E-CT

  • 800x480/WVGA

  • 50pin

  • Stable supply

  • HDMI board/Convert board

  • High brightness/Sunlight readable/outdoor/500nits/1000nits

  • Support resistive touch and capacitive touch screen

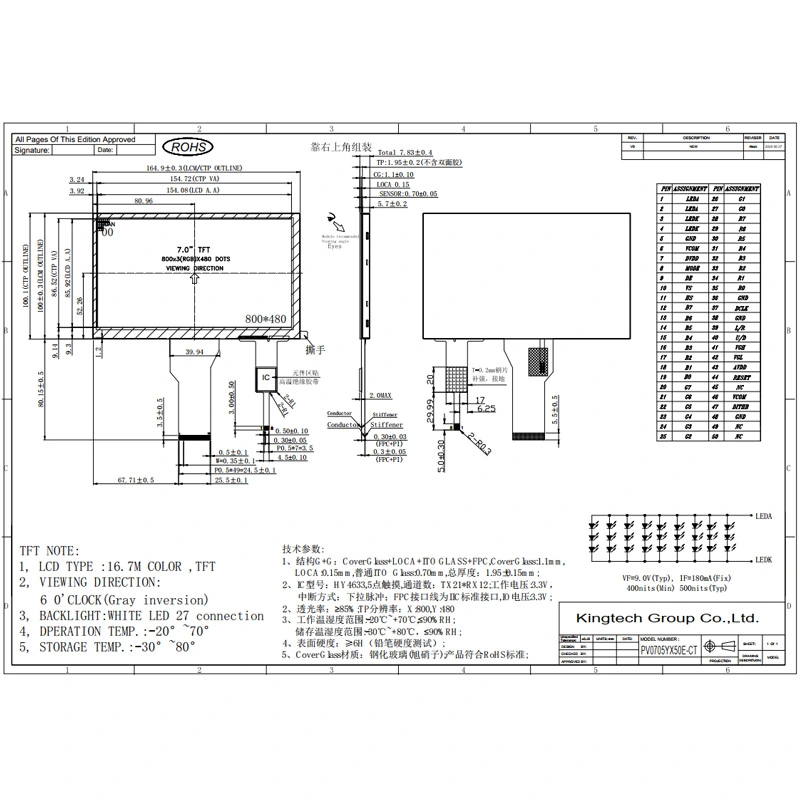

Specification of 7-PV0705YX50E-CT

Item7inch 800x480 50pin capacitive touch screen
Model NoPV0705YX50E-CT
Outline Dimension165*100.1*7.83 mm
Active Area(mm)154.08*85.92 mm
Viewing AngleAll
LED life30000h
Display ModeTN / Transmissive / Normally Black
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
TouchscreenCan custom capacitive touchscreen

Application of 7-PV0705YX50E-CT

  • The 7inch 800x480 50pin capacitive touch display can be used for agricultural equipment, medical device, game console, outdoor device, and smart homes, etc.
