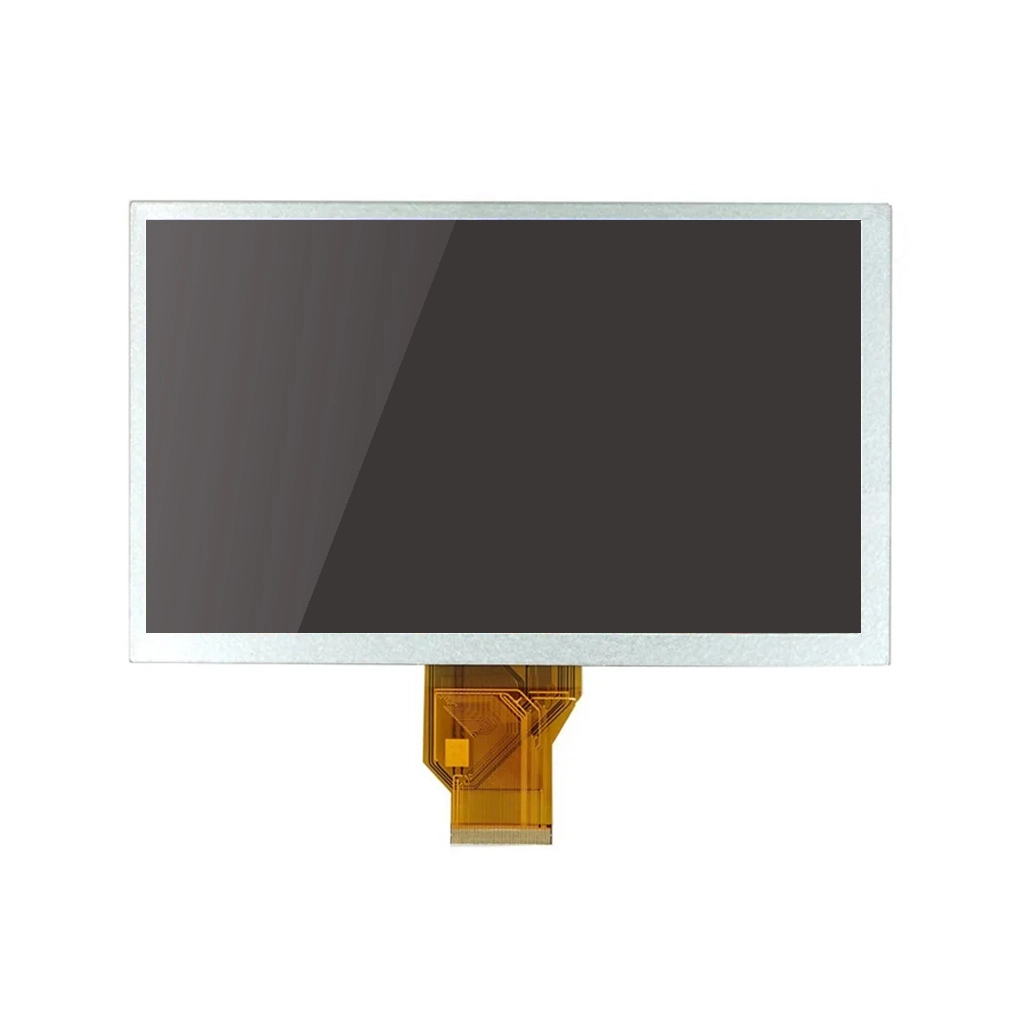

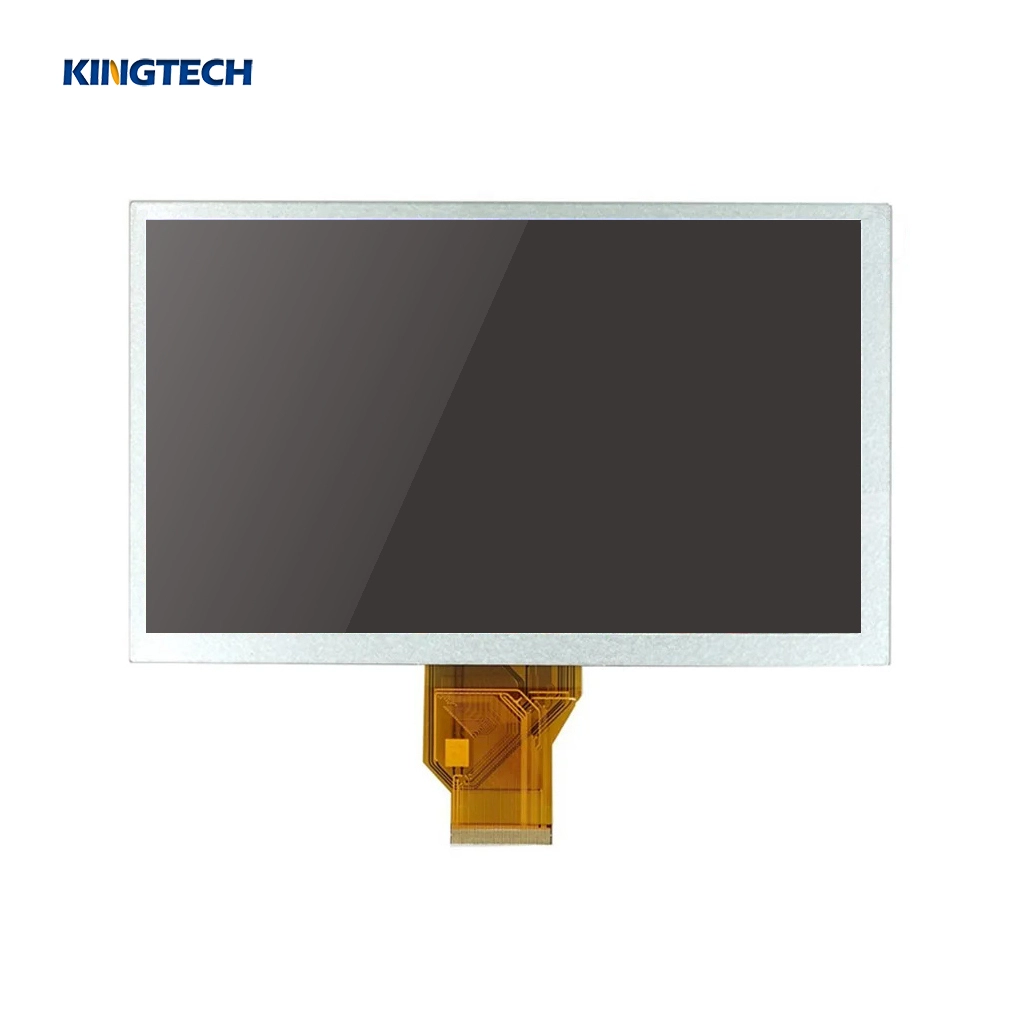

Kingtech 9 inch 1024*600 TFT display supply very stable. This 9 inch supports LVDS interface. In addition, the 9 inch 1024*600 TFT display module brightness is 450 nits, and this 9 inch WSVGA display is 6 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.

Features of 9.7-PV09705W0230E


  • 9 inchTFT display

  • 1024*600/WSVGA

  • Stable supply

  • 6 O'clock

  • LVDS interface

  • 450nits brightness/Sunlight readable/High brightness

  • Can custom resistive touch and capacitive touch

  • Medical, hand-held device, industrial


Specification of 9.7-PV09705W0230E

Item9 inch TN 1024*600 TFT LCD display
Model No.PV09004Y0140E
Resolution1024*600

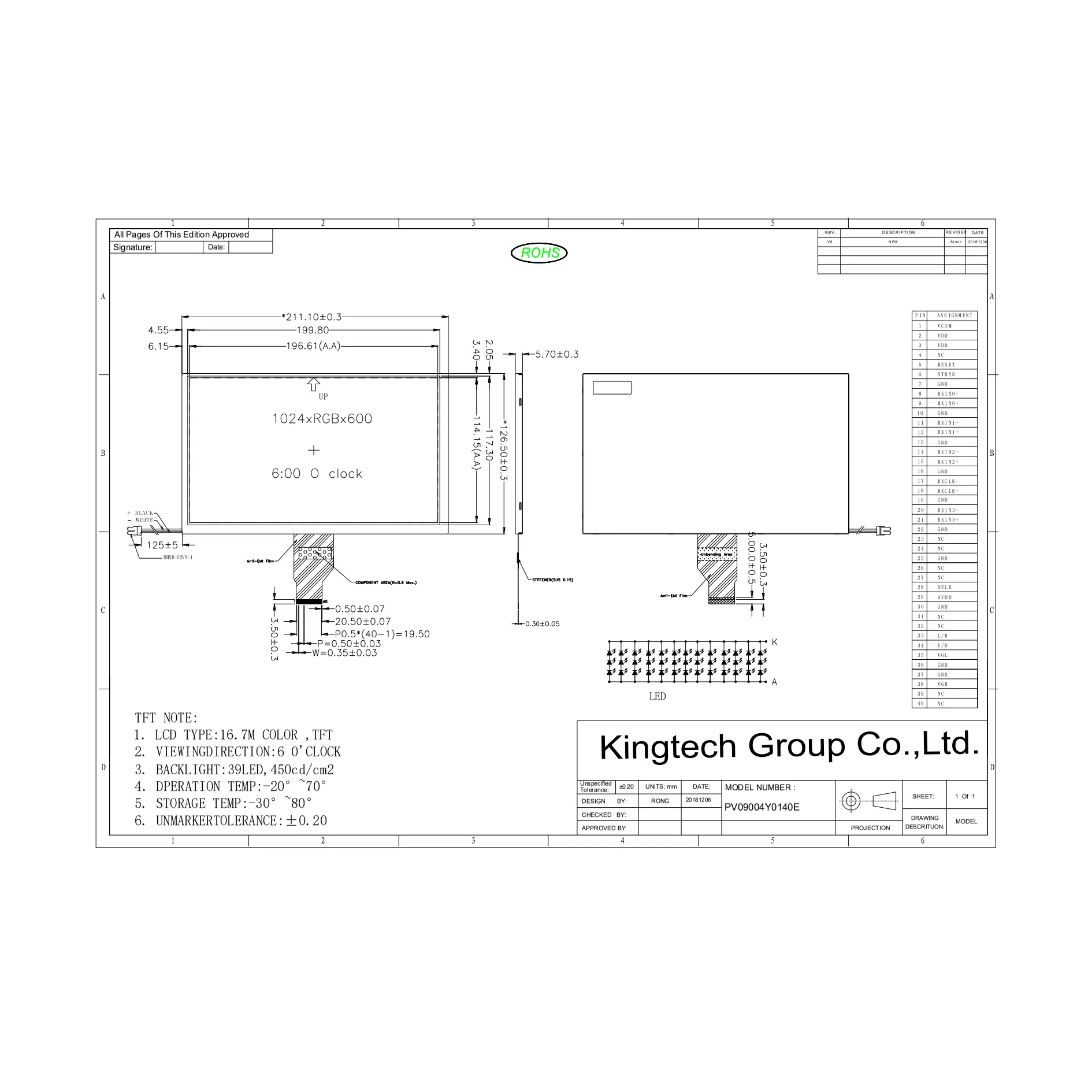

Outline Dimension (mm)211.1*126.50*5.7
Active Area (mm)196.61*114.15
Viewing Angle6 O'clock
Brightness450nits
InterfaceLVDS
Backlight3*13LED
Driving IC/
PIN No.40
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial,


Application of 9.7-PV09705W0230E


  • The 9 inch 1024*600 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
