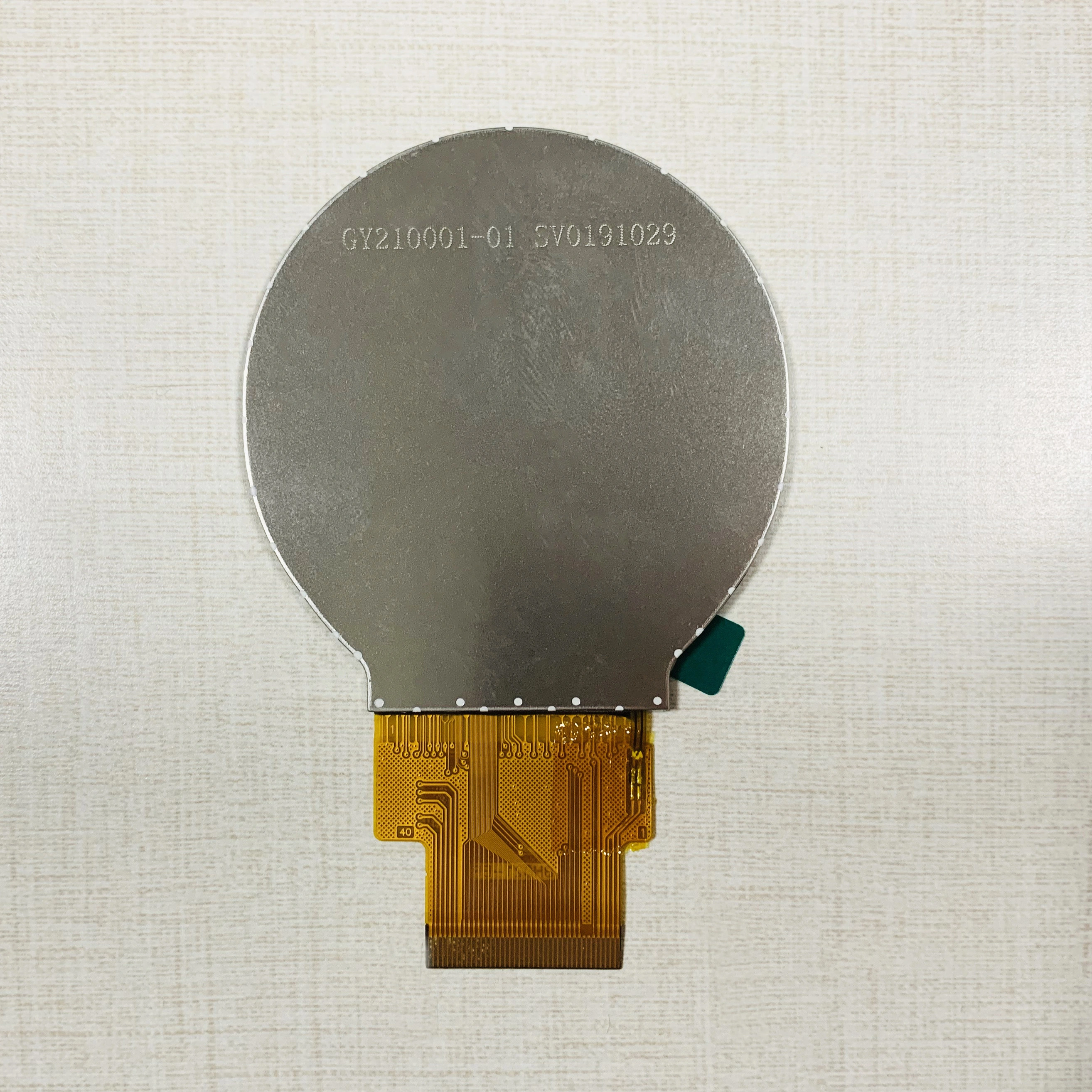

2.1Inch 480x480 Eesolution IPS MIPI GC9503V Round Display

Kingtech 2.1inch 480x480 resolution IPS MIPI GC9503V round display supply very stable. This 2.1 inch round screen supports MIPI interface. In addition, the backlight is 4 LED, driver IC is GC9503V, and this 2.1 inch circular module is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can be customized according to the customer’s requirements.


  • All/Free/Wide viewing angle/IPS

  • 480x480 resolution

  • Stable supply

  • Small/tiny display

  • MIPI interface

  • Round / Circular shape

  • Can custom capacitive touch

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

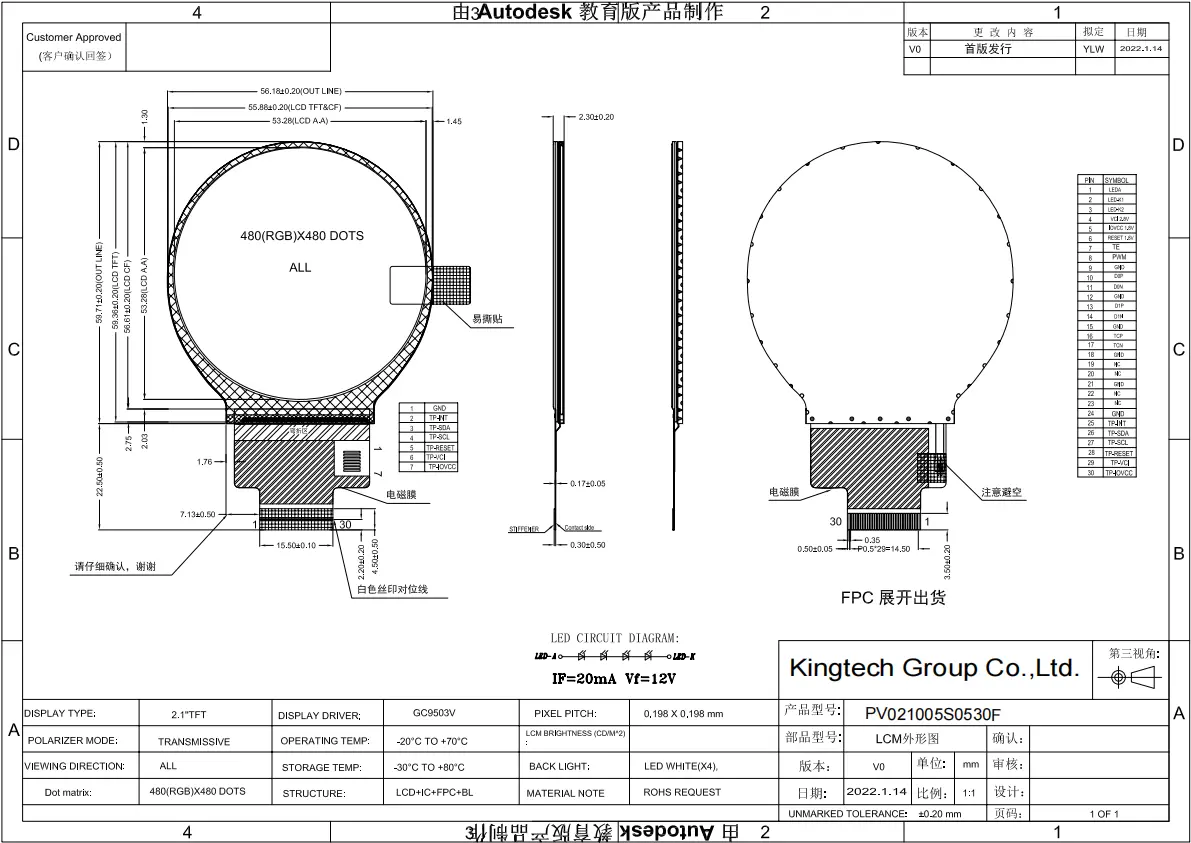

Specification of 2.1Inch 480x480 Eesolution IPS MIPI GC9503V Round Display

Item2.1 inch 480x480 round LCD display
Model NoPV021005S0530F
Resolution480x480
Outline Dimension56.18*59.71*2.3
Active Area(mm)53.28*53.28
Viewing AngleAll
InterfaceMIPI
Driving ICGC9503V
PIN30
Backlight1*4LED
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenCan custom capacitive touch


Application of 2.1Inch 480x480 Eesolution IPS MIPI GC9503V Round Display

  • The 2.1 inch 480X480 IPS round TFT LCD display can be used for Smart watch and wearable.
