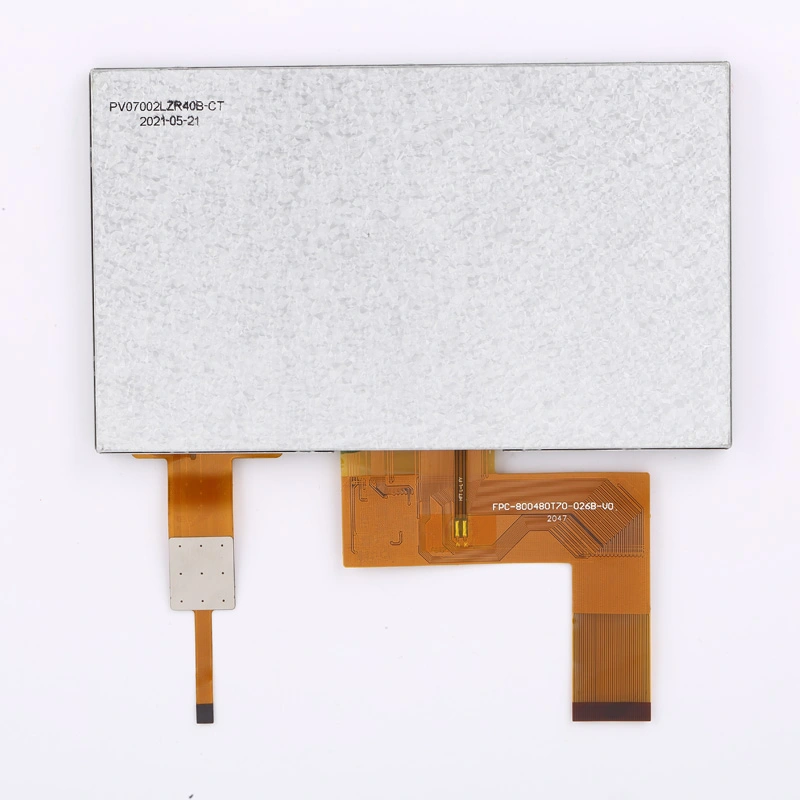

Kingtech 7inch 800x480 resistive touch LCD display supply very stable. This 7inch display is a very classic one with standard 40pin FPC. The lifetime is 30000h, brightness flexible from 500nit to 1000nits sunlight readable. It has an HDMI board and can connect to the raspberry pi. For the touch part, Kingtech can custom the touch according to the customer's requirements.

Features of 7-PV07002LZR40B-R1

  • Classic 40 pin FPC

  • 800X480

  • Stable supply

  • Support resistive and capacitive touch panel

  • Convert board

  • High brightness/Sunlight readable/outdoor/1000nits

  • Can custom capacitive touch screen

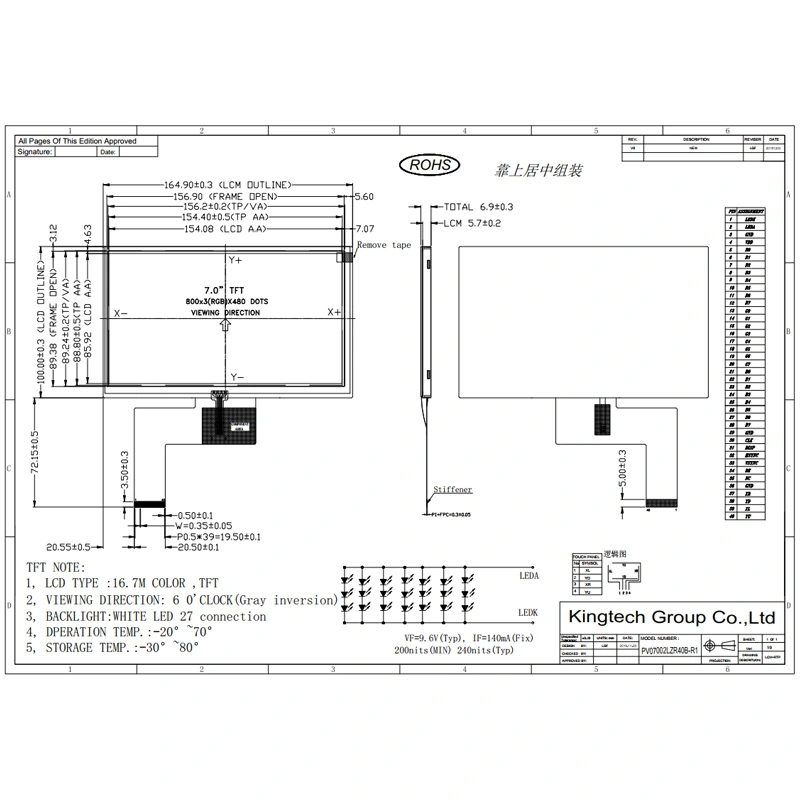

Specification of 7-PV07002LZR40B-R1

Item7inch 800x480 Resitive Touch display
Model NoPV07002LZR40B-R1
Outline Dimension164.9*100*7.0 mm
Active Area(mm)154.08*85.92 mm
Viewing Angle12 o'clock
LED life50000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
TouchscreenCan custom resistive and capacitive touchscreen

Application of 7-PV07002LZR40B-R1

  • The 7inch 800x480 Resistive touch TFT LCD display can be used for agricultural equipment, medical device, game console, and smart home, etc.
