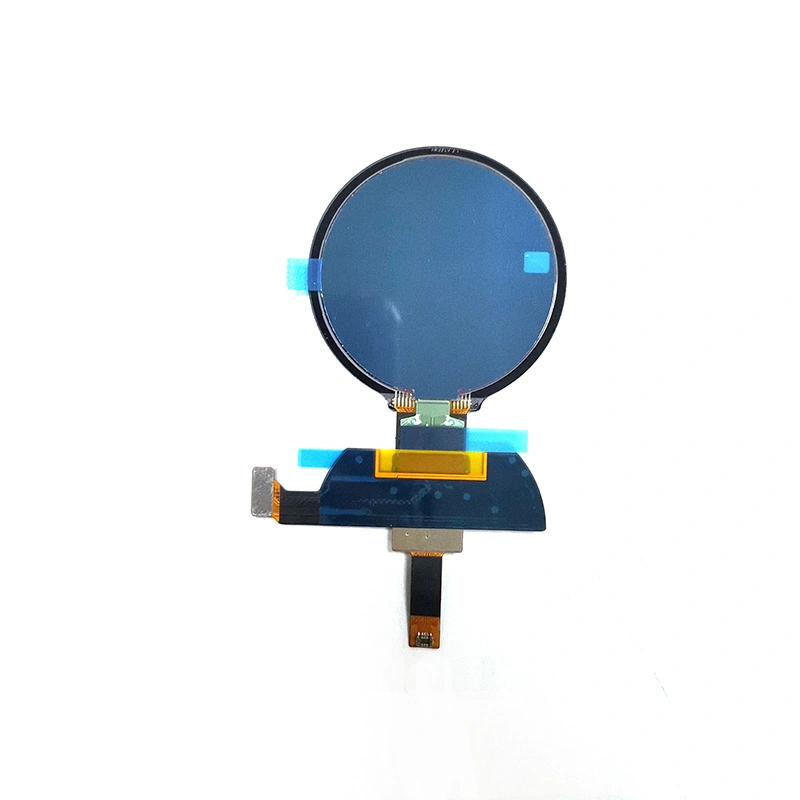

1.39 inch 454*454 Round AMOLED Display Module

Kingtech 1.39 inch 454*454 round AMOLED display module supply very stable. This 1.39 inch supports MIPI / SPI interface. In addition, the 1.39 inch AMOLED display module brightness is 350nits, Driver IC is RM69330, and this 1.39 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, this is capacitive touch and the touch driver IC is TMA525B.


  • All/Free/Wide viewing angle/IPS

  • AMOLED display

  • 454*454

  • Stable supply

  • small / tiny display

  • SPI/MIPI interface

  • Smart watch/wearable

  • Capacitive touch panel

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

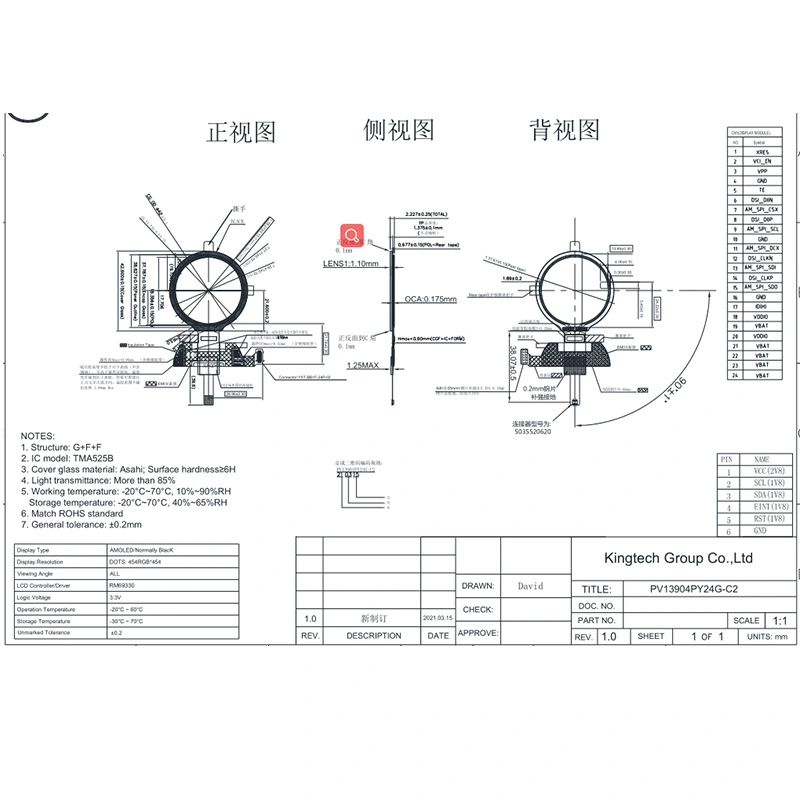

Specification of 1.39 inch 454*454 round AMOLED Display Module


Item1.39 inch round AMOLED display
Model NoPV13904PY24G-C2
Resolution454*454
Outline Dimension42.6*42.6*2.227
Active Area(mm)φ35.41
Brightness350nits
Viewing AngleFree/IPS
InterfaceMIPI / SPI
Driving ICRM69330
CTP Controller/DriverTMA525B
PIN18
Operating Temperature-20 to +60℃
Storage Temperature-30 to +70℃
Touch screenCapacitive touch
BoardCan custom HDMI board



Application of 1.39 inch 454*454 round AMOLED Display Module

  • The 1.39 inch 454*454 IPS AMOLED display module can be used for Smart watch and wearable.
