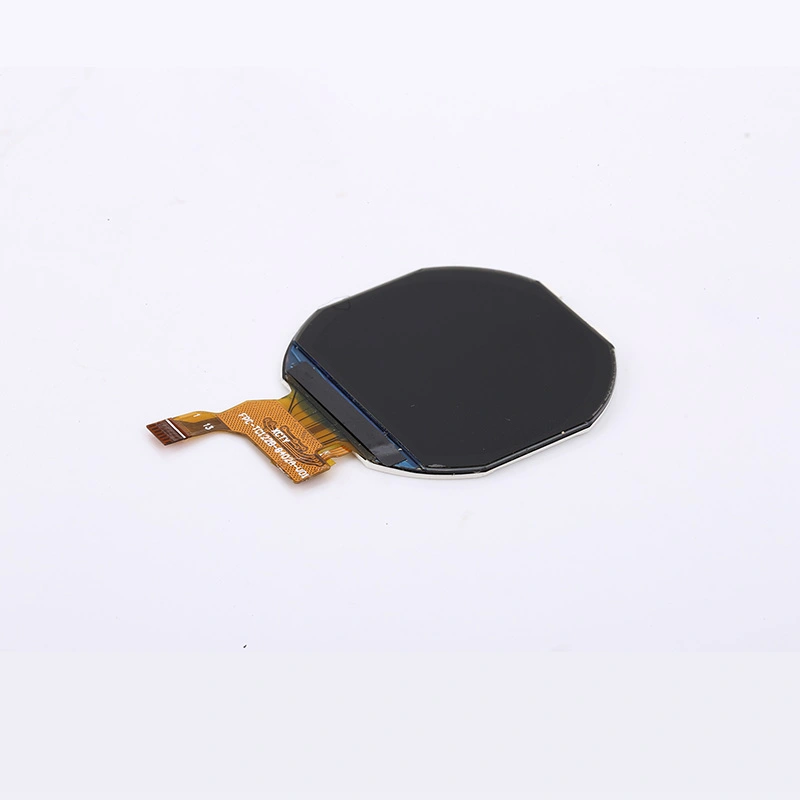

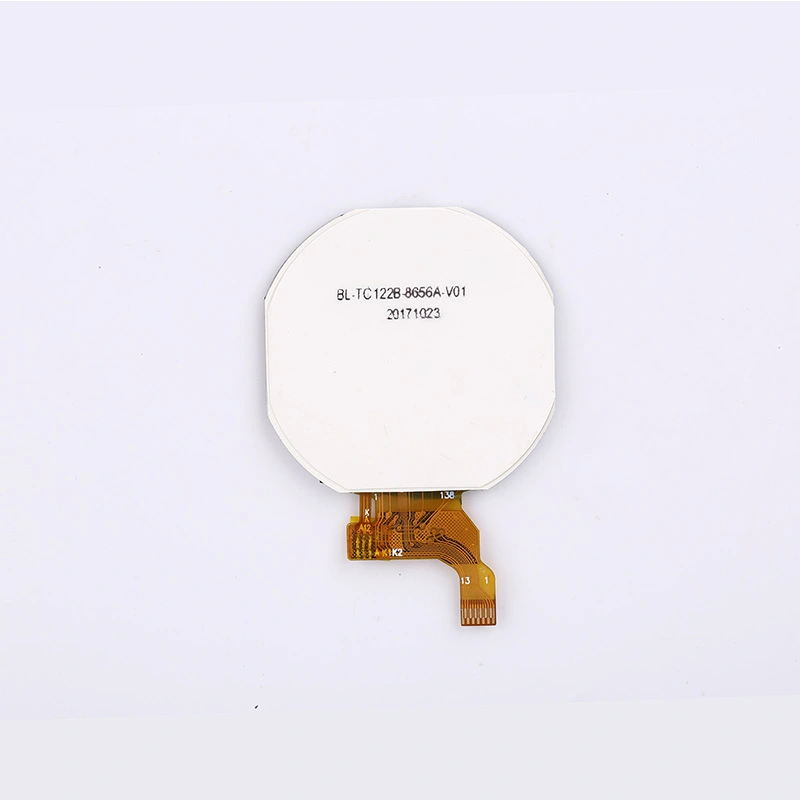

1.22 Inch 240*204 TFT Round Module Display

Kingtech 1.22 inch 240*204 TFT round module display supply is very stable. This 1.22 inch supports 3-line SPI Interface. In addition, the 1.22 inch TFT display module brightness is 150 nits, and this 1.22 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, we can also customize capacitive touch according to the customer's requirements.


  • TFT display

  • 240*204

  • Stable supply

  • All/Free/Wide viewing angle/IPS

  • small/tiny display

  • 3-line SPI interface

  • Smartwatch/wearable

  • Can custom capacitive touch

Get a Quote Get a Quote Get a Quote

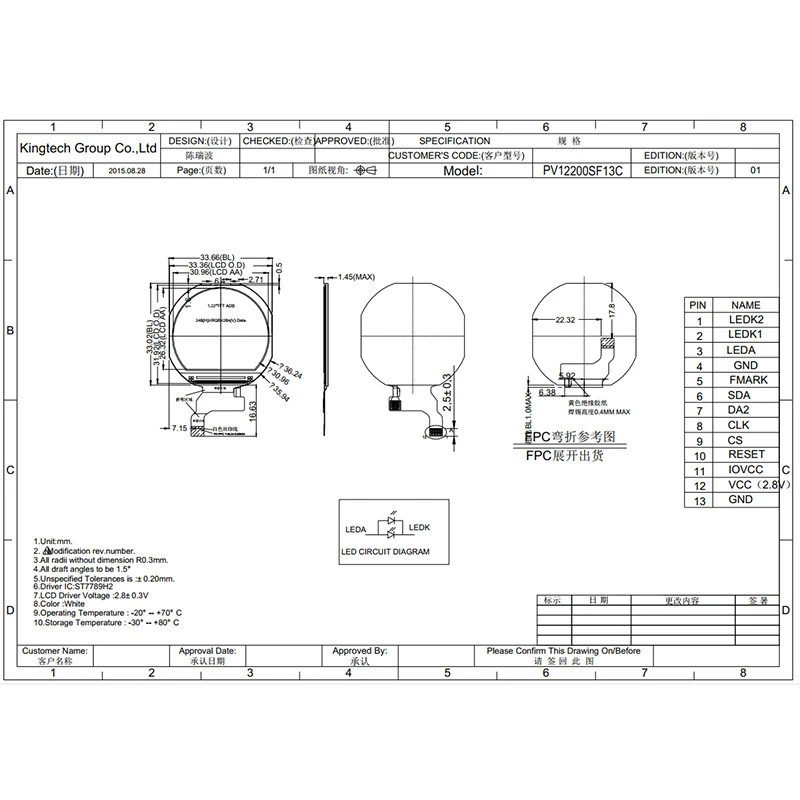

Specification of 1.22 Inch 240*204 TFT Round Module Display

ItemKingtech 1.22inch round lcd display
Model NoPV12200SF13C
Resolution240x204
Outline Dimension33.66(H)x33.02(W)x1.45(T)
Active Area(mm)26.32(H)*30.96(W)
Interface3-line SPI
Brightness150nits
Viewing AngleAll
Driving ICST7789H2
Display ModeTransmissive/Normally white
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch panelCan custom capacitive touch panel


Application of 1.22 Inch 240*204 TFT Round Module Display

  • The 1.22 inch 240*204 TFT display module can be used for Smartwatch and wearables.
