Kingtech 8inch 800x600 RGB interface supply is very stable. This 8inch SVGA LCD display supports a 24bit RGB interface. The 8inch TFT module is 500nits brightness, it can be sunlight readable and outdoor. The life-time is 50000h. For the touch part, Kingtech can custom the touch panel according to the customer's requirements.

Features of 8-PV08005YP50E

  • 800x600/SVGA

  • 12 o'clock

  • Landscape/Horizontal type

  • RGB interface

  • Stable supply

  • Capacitive touch screen to be customized

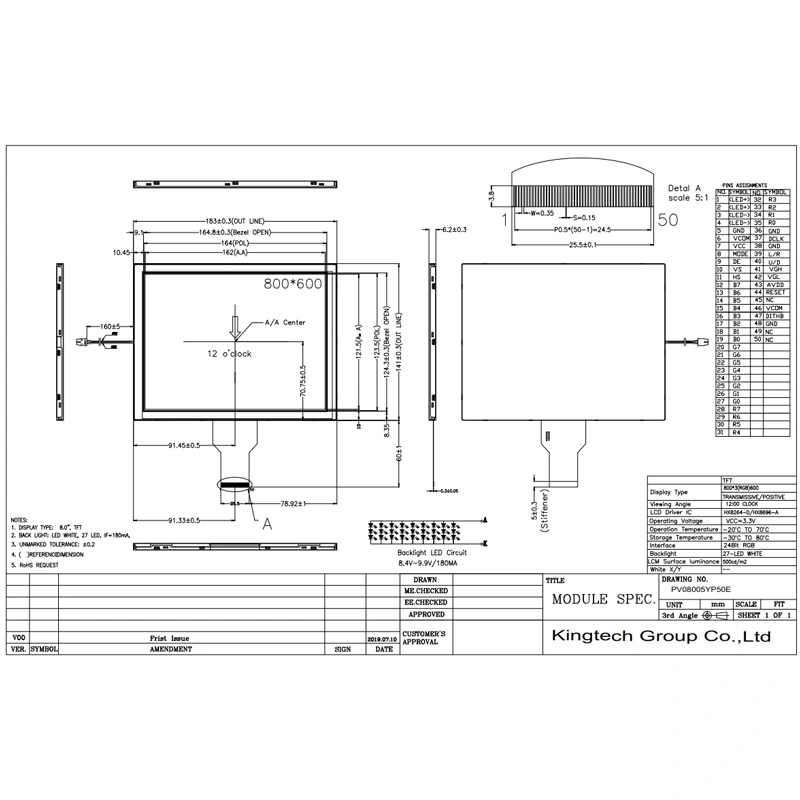

Specification of 8-PV08005YP50E

Item8inch 800x600 Landscape RGB interface display
Model NoPV08005YP50E

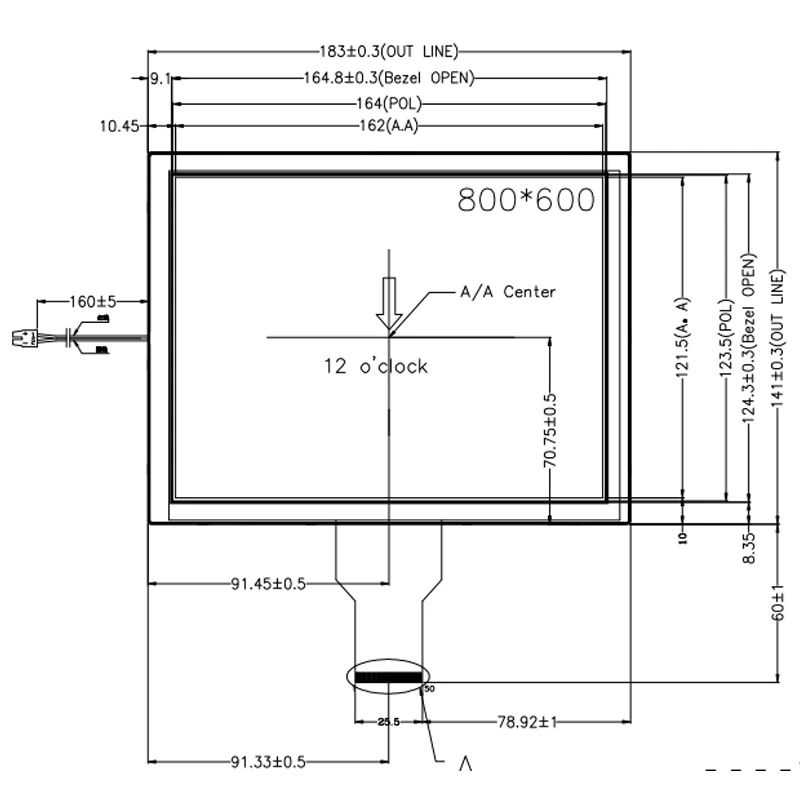

Outline Dimension183.00*141.00*6.20
Active Area(mm)162*121.5
Interface24bit RGB
Driver ICHX8264-D/HX8696-A
Viewing Angle12 O'clock
LED life50000h
Display ModeTN / Transmissive / Normally white
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
TouchscreenCustom resistive and capacitive touchscreen

Application of 8-PV08005YP50E

  • The 8inch 800x600 RGB interface TN display module can be used for agricultural equipment, medical devices, handheld device, game console, smart homes, etc.
