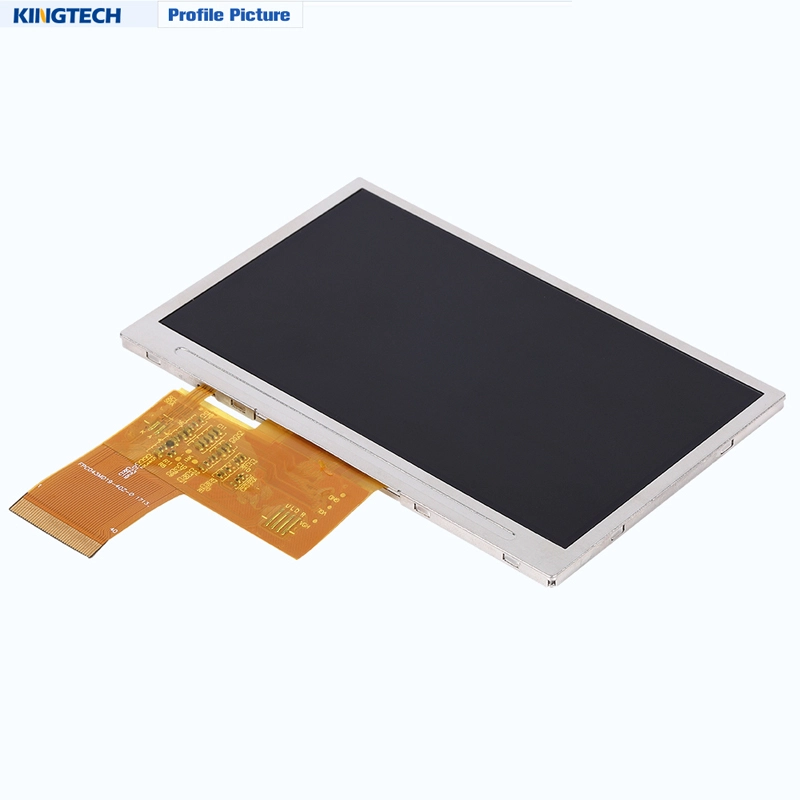

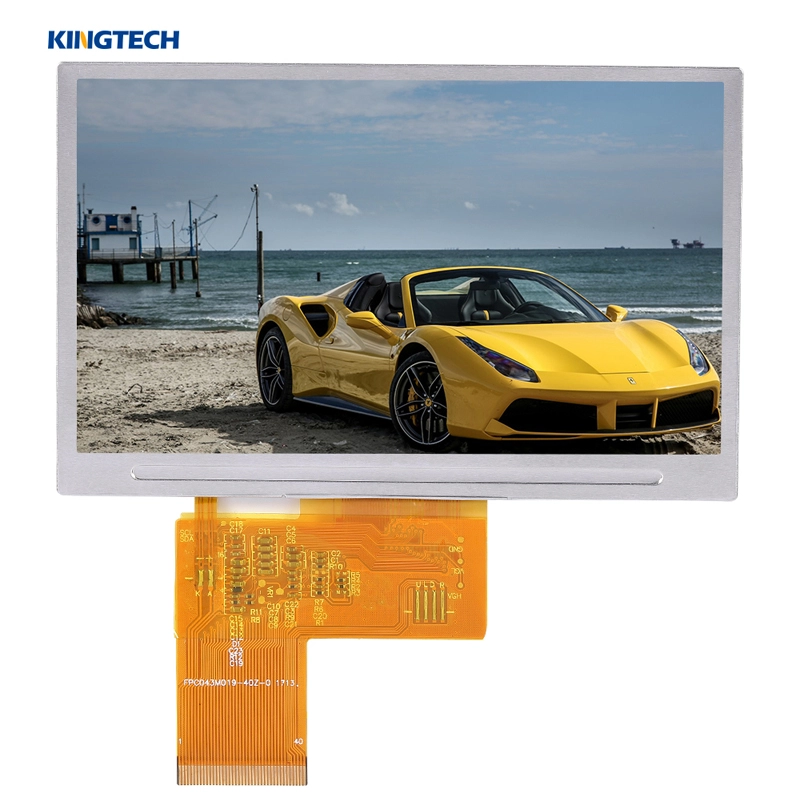

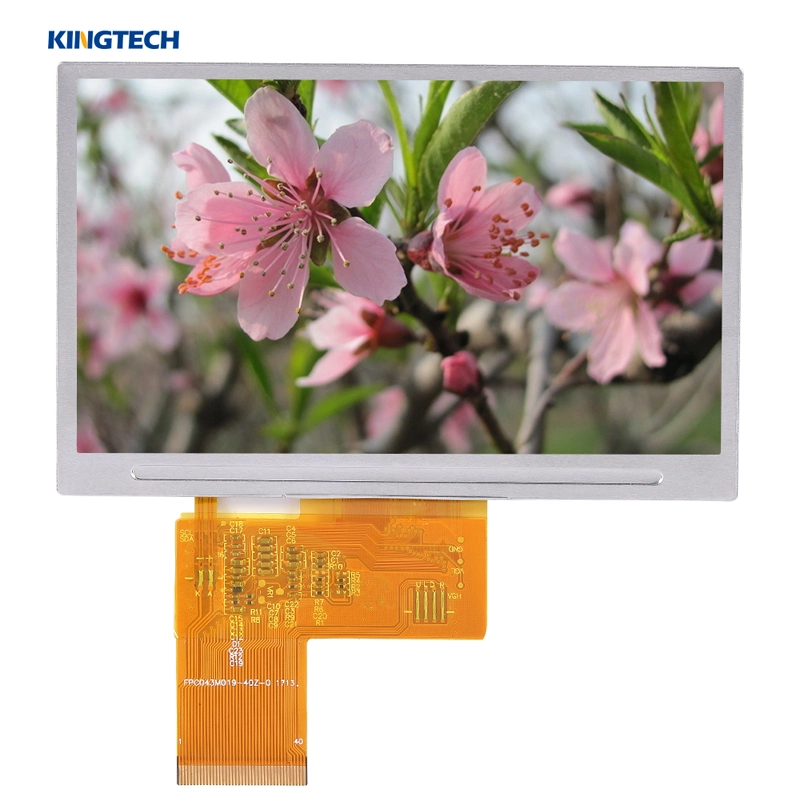

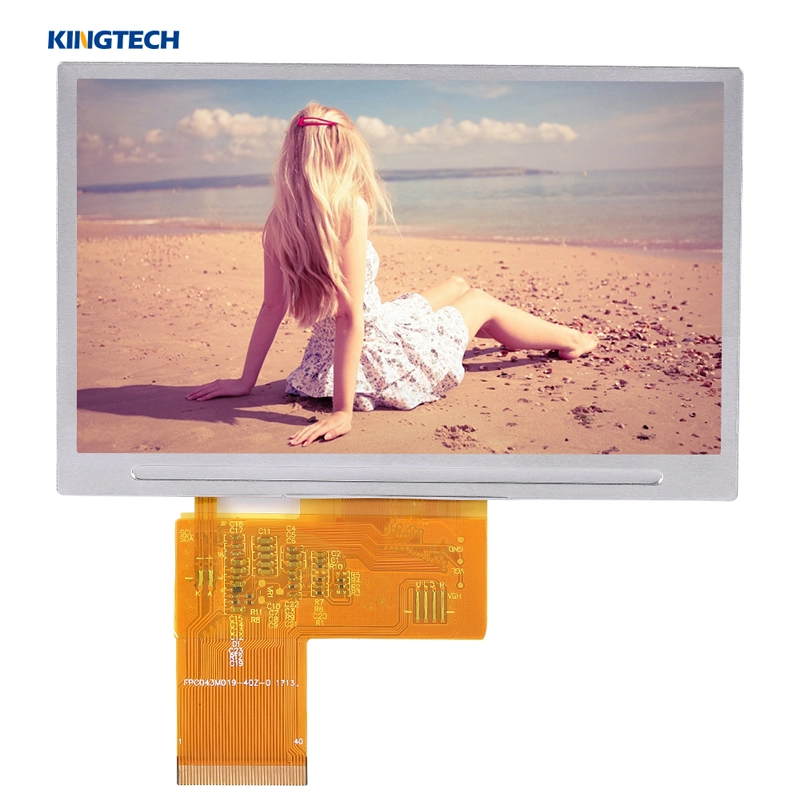

Kingtech High brightness 4.3 inch 800*480 TFT module display supply very stable. It is applicable for outdoor. This 4.3 inch supports 3-wire SPI、4-wire SPI、QSPI interface. In addition, the 4.3 inch WQVGA TFT display module brightness is 800-1000 nits, and this 4.3 inch screen is All viewing type. It is with capacitive touch screen. This module is IPS type with full View Angle 80/80/80/80.
TFT display
800*480 /WVGA
Stable supply
All
3-wire SPI、4-wire SPI、QSPI interface
800-1000nits brightness/Sunlight readable/High brightness
Capacitive touch
Medical, industrial,Smart Home Appliance,Security device
Get a Quote
Documentation
| Item | 4.3 inch TFT 800x480module display |
| Model No. | PV043023Y0120T |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.0*86.2*3.0 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | IPS |
| Brightness | 800-1000nits |
| Interface | 3-wire SPI、4-wire SPI、QSPI interface |
| Backlight | 8*2LED |
| Driving IC | / |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Capacitive touch screen |
| Application | Medical, hand-held device, industrial, Smart home Appliance |
The 4.3 inch 800*480 WVGA TFT display module can be used for Medical, smart home appliance industrial or others.
