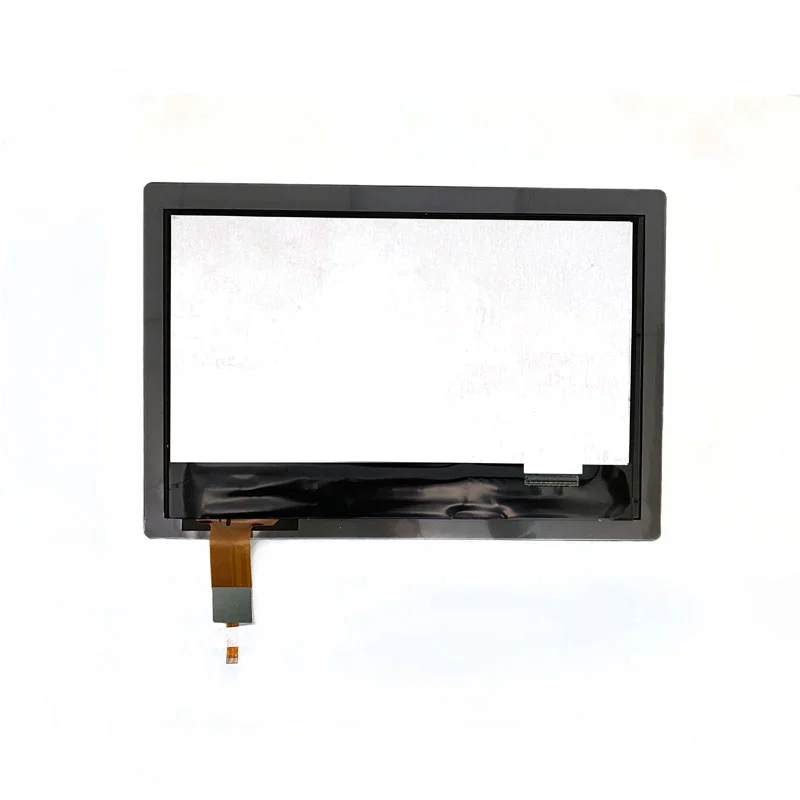

10.1 inch 1200*1920 Vertical TFT LCD display

Kingtech 10.1 inch 1200*1920 Vertical TFT LCD display supply very stable. This 10.1 inch supports MIPI interface. In addition, the 10.1 inch TFT module brightness is 260nits, and this 10.1 inch screen is IPS / Free / Full / Wide viewing angle type. For the touch part, Kingtech can custom the touch according to customer's requirements.


  • Vertical screen

  • 1200*1920

  • Stable supply

  • MIPI interface

  • IPS / Free / Full / Wide viewing angle

  • Can custom capacitive touch and resistive touch

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 10.1 inch 1200*1920 Vertical TFT LCD display

ItemTFT LCD module 10.1 inch
Model NoPV101018TX40R
Resolution1200*1920

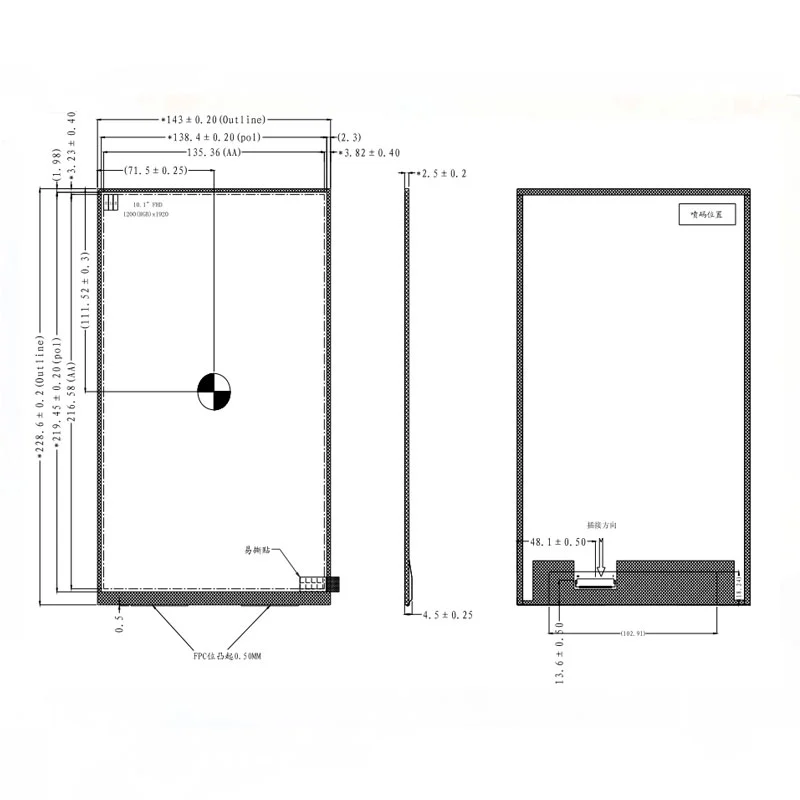

Outline Dimension143X228.6X2.5
Active Area(mm)135.36*216.58
InterfaceMIPI
Brightness260 cd/m2
Viewing AngleALL
Display ModeNormally BLACK
PIN40
Operating   Temperature0~50
Storage Temperature-10~60
Contrast Ratio800
Number of color16.7M
Touch panelCan custom capacitive touch


Application of 10.1 inch 1200*1920 Vertical TFT LCD display

  • The 10.1inch 1200*1920 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
