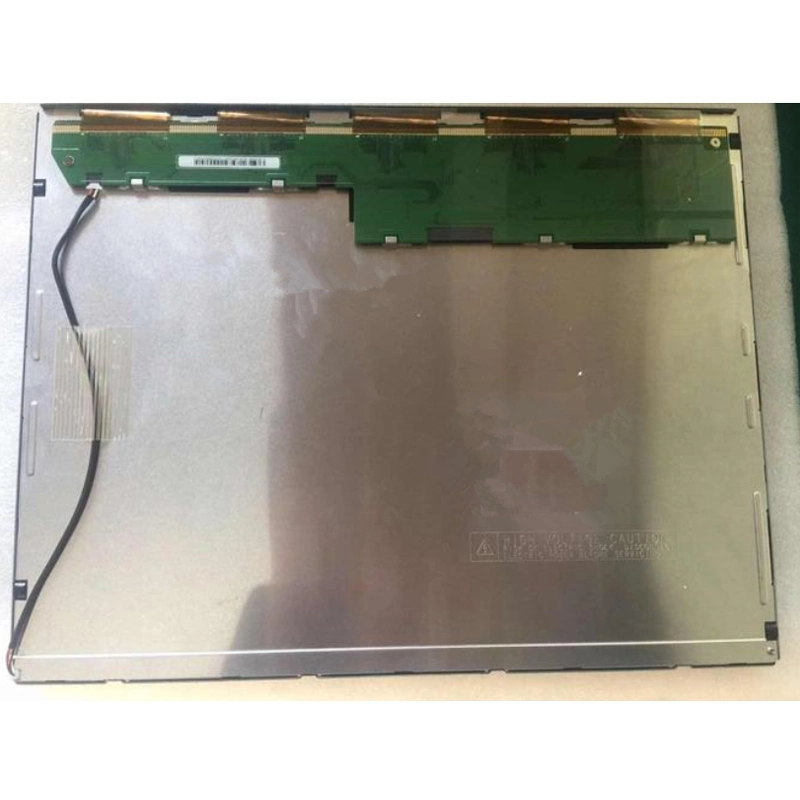

Kingtech 15inch 1024x768 landscape TN LCD screen is one of our main product.
The 15inch LVDS 1 port interface TFT LCD module does have capacitive touch, but we can custom LCD module according to the customer requirements. The 15inch TFT LCD display is 450nits and the life-time can reach 50000 hours.
1024x768 resolution /High definition resolution
TN type
LVDS interface
Landscape / Horizontal display
Life-time is 50000 hours
Kingtech Diaplay is an expert of LCD production, and provides the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.
| Item | 15 inch TN LCD display |
| Model No | PV15001AR20B |
| Resolution | 1024x768 |
| Outline Dimension | 326.5(H)×253.5(V)×11.8(D) |
| Active Area(mm) | 304.128(W)x228.096 (V) |
| Brightness | 450nits |
| Interface | LVDS 1 port |
| Viewing Angle | 12 O'clock |
| Life Time | 50000h |
| Display Mode | TM with Normally White |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
The 15inch1024x768 TN TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, monitoring, oscilloscope, logistics device, and E-Bike.
