Item	12.1inch 1280x800 LCD display
Model No	PV012103YH30D
Resolution	1280x800 / WXGA

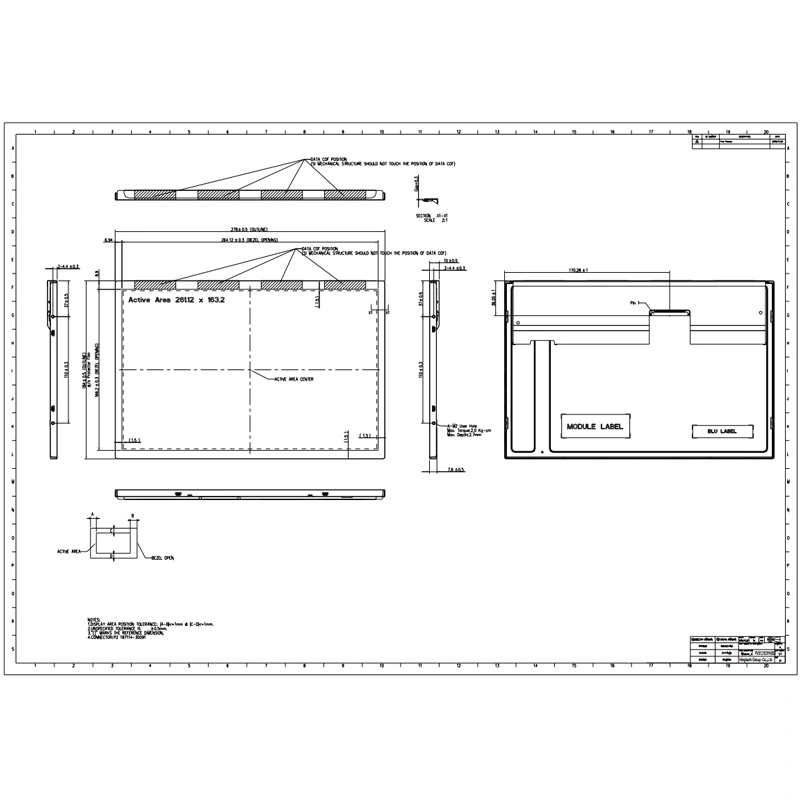

Outline Dimension	278 (W)×184(H)× 10(T)
Active Area(mm)	261.12 (W)× 163.2(H)
Interface	LVDS
Brightness	400nits
Viewing Angle	All
LED life	50000h
Display Mode	TN / Transmissive / Normally Black
PIN	30
Operating Temperature	-20℃~70℃
Storage Temperature	-20℃~70℃
Touchscreen	Can custom capacitive touchscreen

12.1-PV012103YH30D

Specification of 12.1-PV012103YH30D

Application of 12.1-PV012103YH30D
