Kingtech 2.8 inch 240*320 TFT module display supply very stable. This 2.8 inch supports SPI interface. In addition, this 2.8 inch QVGA LCD screen is 12 O'clock viewing type, the driver IC is ST7789T3. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
QVGA resolution
Can custom resistive touch and capacitive touch
Get a Quote
Documentation

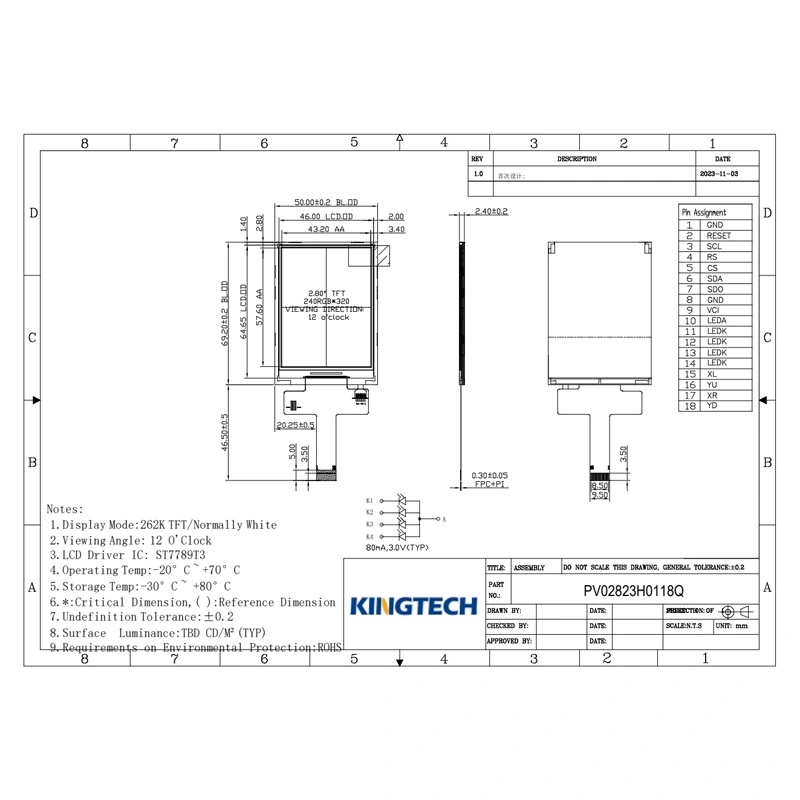

| Item | 2.8inch TN 240*320 TFT display |
| Model No. | PV02823H0118Q |
| Resolution | 240*320 |
| Outline Dimension (mm) | 50*69.2*2.4 |
| Active Area (mm) | 43.2*57.6 |
| Viewing Angle | 12 O'clock |
| Brightness | / |
| Interface | SPI |
| Backlight | 1*4LED |
| Driving IC | ST7789T3 |
| PIN No. | 18 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, smart-home |
The 2.8 inch 240*320 TFT display module can be used for E-bike, Medical, hand-held device, industrial or others.
