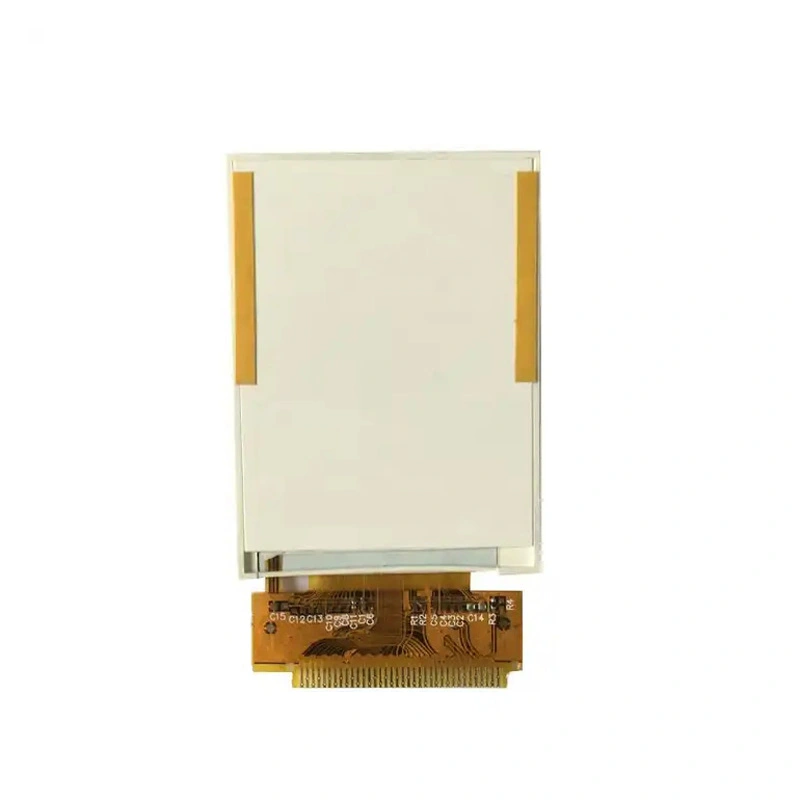

Kingtech 2.0 inch 176*220 resolution TFT LCD display. It with stable production. This 2.0 inch TFT LCD display supports 8BIT MCU interface, ST7775R driver IC. It with 6 O'clock viewing angle. Mainly application for Smart home, medical, industrial. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD DISPLAY
176*220
Stable supply
All/Full/Wide/IPS viewing angle
8BIT MCU interface
300nits/High brightness/Sunlight readable/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation

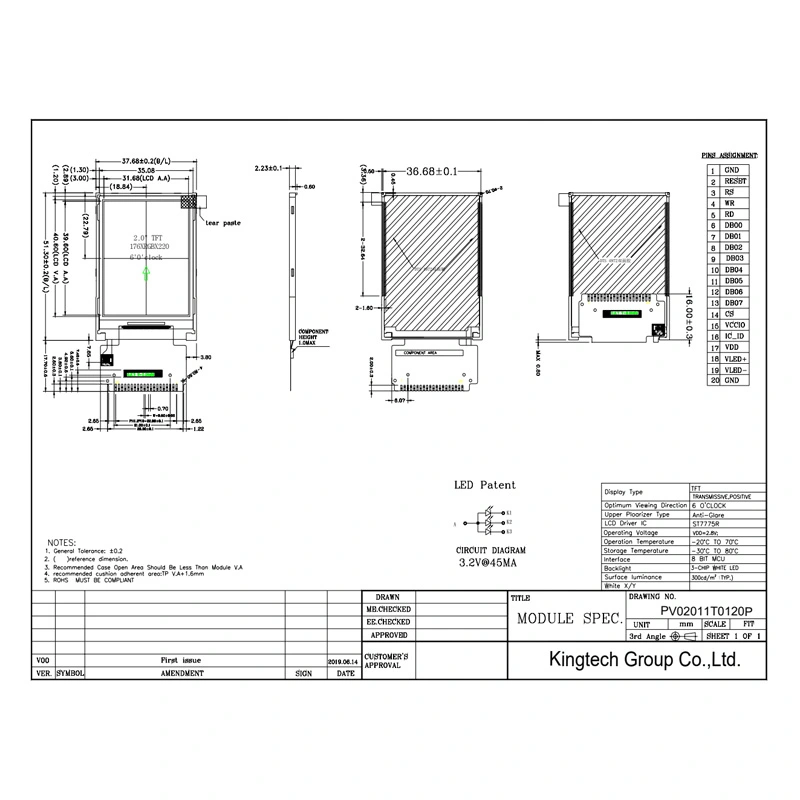

| Item | 2inch 176x220 TFT LCD module display |
| Model No. | PV02011T0120P |
| Resolution | 176*220 |
| Outline Dimension (mm) | 37.68*51.3*2.23 |
| Active Area (mm) | 31.68*39.60 |
| Viewing Angle | 6 O'clock |
| Brightness | 300nits |
| Interface | 8BIT MCU |
| Backlight | 1*3 LED |
| Driving IC | ST7775R |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2inch 176x220 LCD TFT module can be used for Smart home, Medical, hand-held device, industrial or others.
