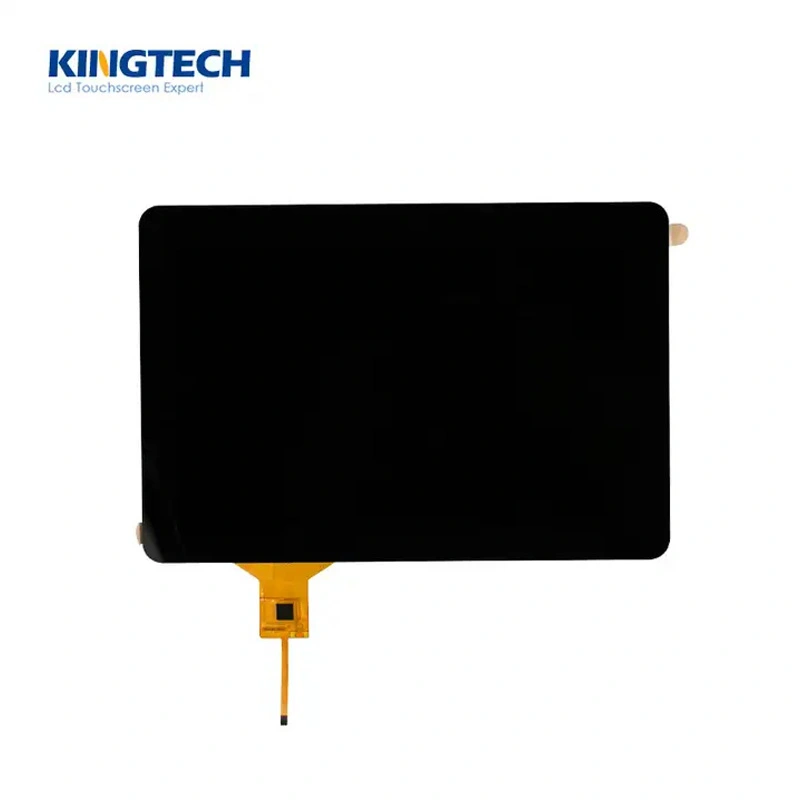

Kingtech 10.1 inch 1280*720 TFT display supply very stable. This 10.1 inch supports LVDS interface. In addition, the 10.1 inch 1280*720 LCD TFT display module brightness is 750 nits, and this 10.1 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
10.1 inch TFT display
1280*720
Stable supply
All/Full/IPS/Wide viewing angle
LVDS interface
Wide operating temperature/-30~85C
750nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote

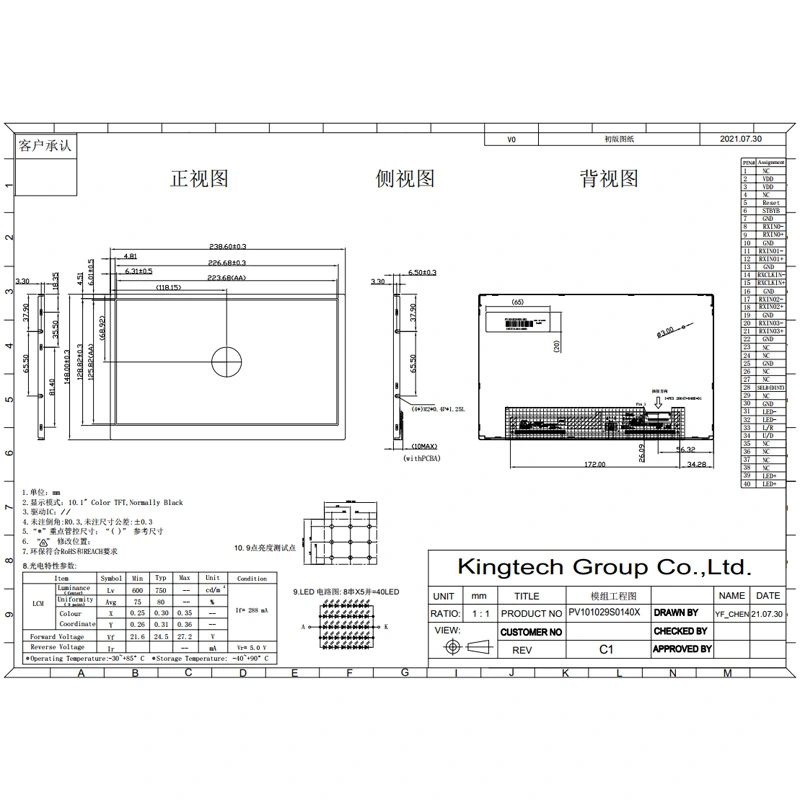

Documentation
| Item | 10.1inch IPS 1280*720 TFT display |
| Model No. | PV101029S0140X |
| Resolution | 1280*720 |

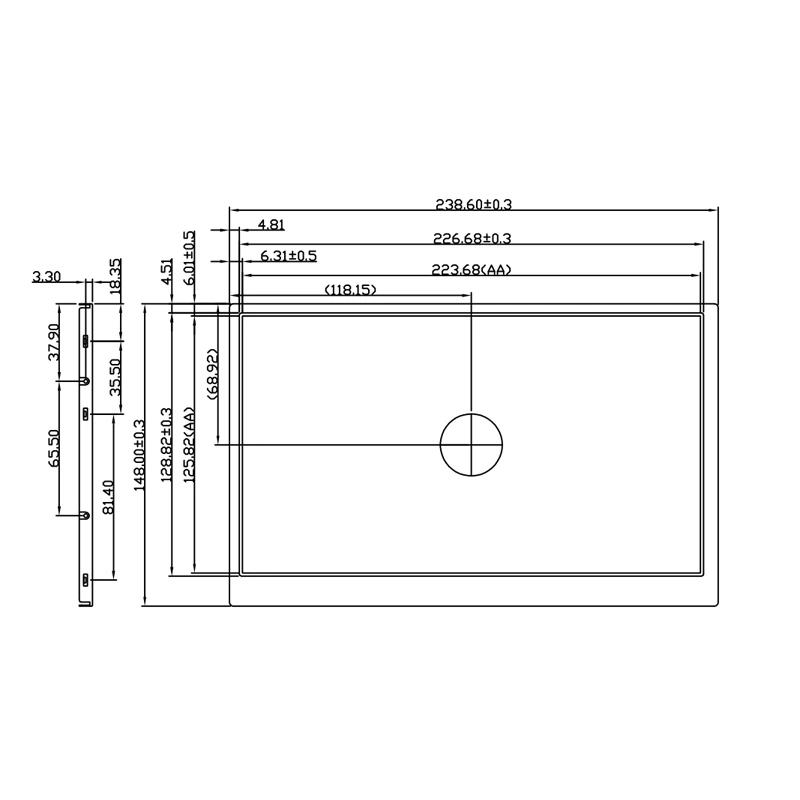

| Outline Dimension (mm) | 238.60*158.00*6.5 |
| Active Area (mm) | 223.68*125.82 |
| Viewing Angle | All |
| Brightness | 750nits |
| Interface | LVDS |
| Backlight | 8*5LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~90C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 10.1 inch 1280*720 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
