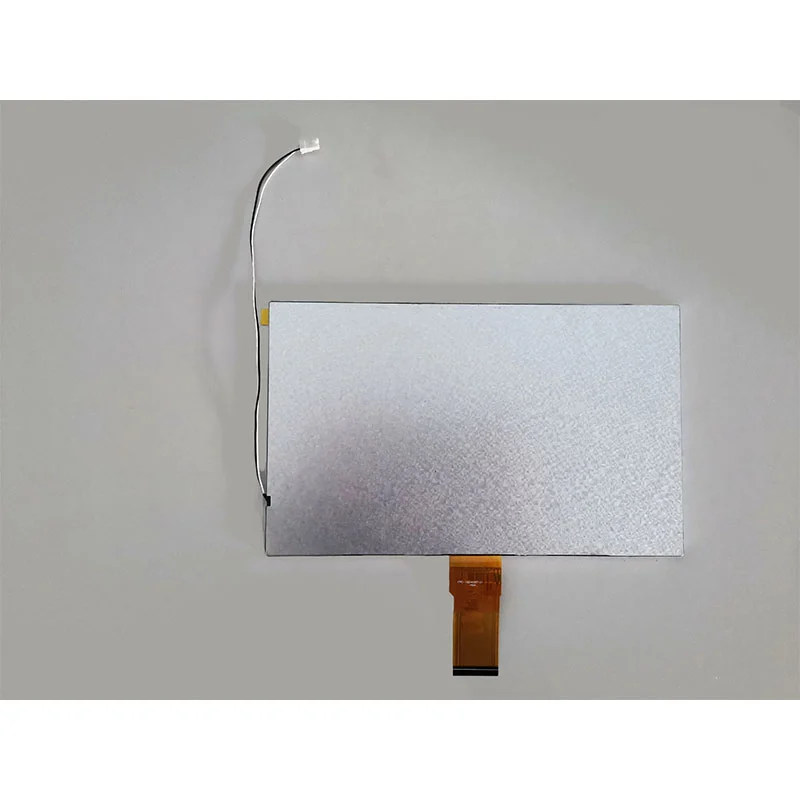

10.1 Inch 1024x600 IPS LCD Display

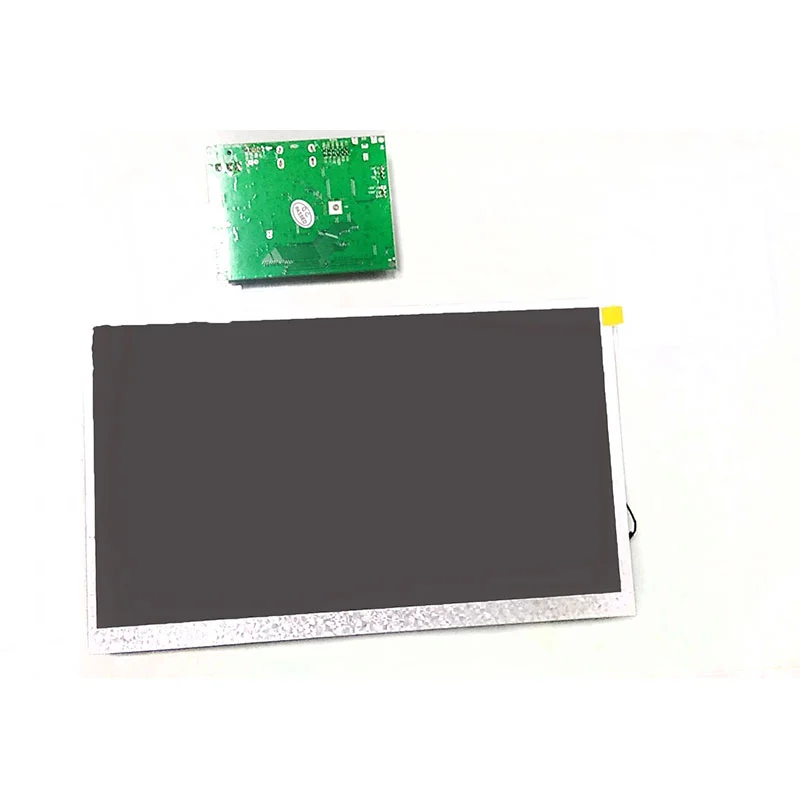

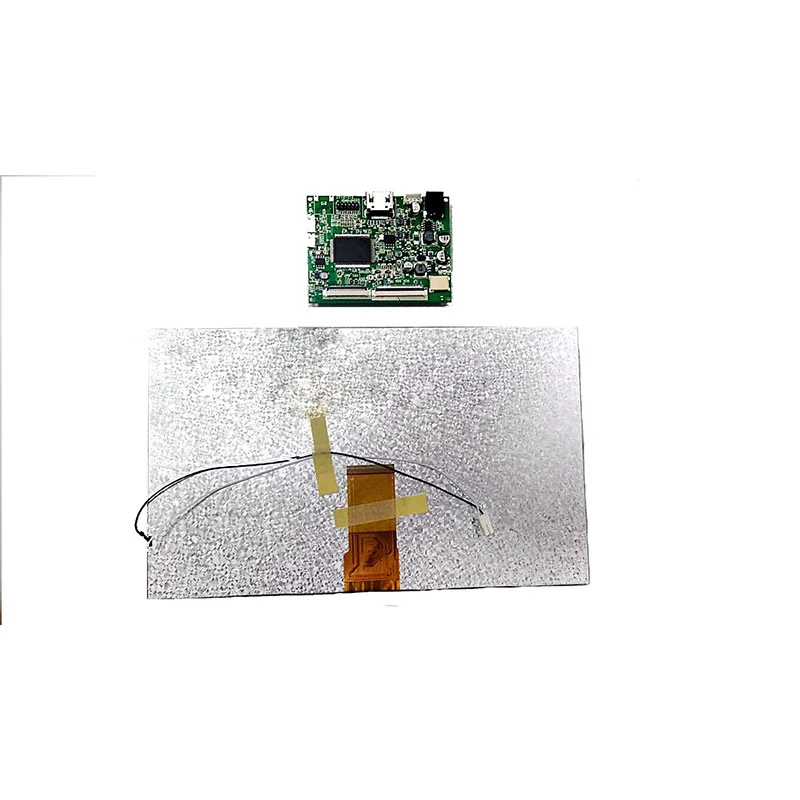

Kingtech 10.1inch 1024x600 IPS LCD display supply very stable. This 10.1inch supports TTL interface. In addition, the 10.1inch TFT module has exsiting HDMI Board. The life-time is 30000h, and this 10.1inch screen is All/Free/Wide viewing angle/Normally Black/IPS type. For the touch part, Kingtech can custom the touch according to customer’s requirements.


  • All/Free/Wide viewing angle/Normally Black/IPS

  • 1024x600

  • Stable supply

  • HDMI board / Convert board

  • Application is for Agricultural equipment, game console

  • Can custom capacitive touch screen

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 10.1 Inch 1024x600 IPS LCD Display


ItemTFT LCD module 10.1 inch
Model NoPV101017LZR50Q
Resolution1024×3 (RGB)×600
Outline Dimension235(W)×143(H)×4.5(T
Active Area(mm)222.72(W)×125.28(H)
InterfaceTTL
Brightness350 cd/m2
Viewing AngleALL
Display ModeNormally BLACK
Operating   Temperature-20~70
Storage Temperature-30~80
BoardHDMI board
Touch panelCapacitive touch



Application of 10.1 Inch 1024x600 IPS LCD Display

  • The 10.1inch 1024x600 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
