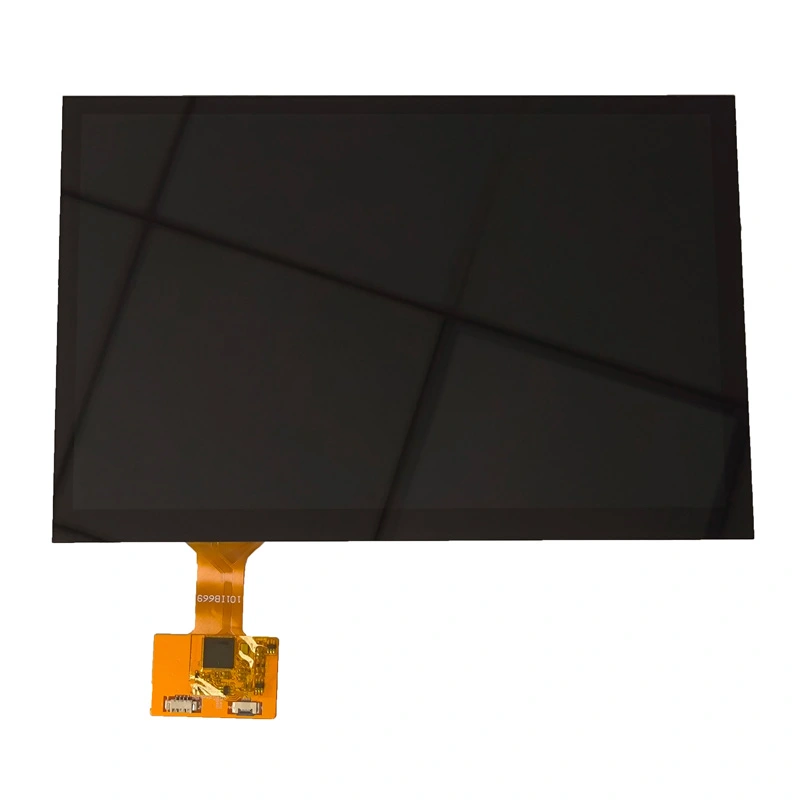

Kingtech 10.1 inch 1280*800 TFT display supply very stable. This 10.1 inch supports LVDS interface. In addition, the 10.1 inch 1280*800/WXGA TFT display module brightness is 1000 nits, and this 10.1 inch display is All/Full/Wide/IPS viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
10.1 inch TFT display
1280*800/WXGA
Stable supply
All/Wide/IPS/Full viewing angle
LVDS interface
1000nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 10.1inch IPS 1280*800 TFT display |
| Model No. | PV101037Y0140B |
| Resolution | 1280*800 |

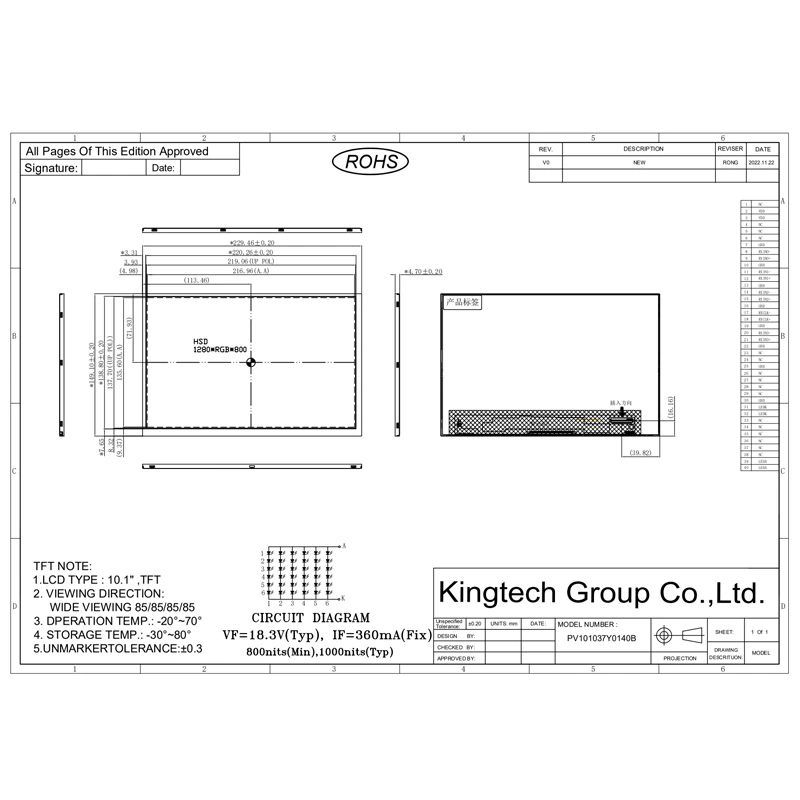

| Outline Dimension (mm) | 229.46*149.1*4.70 |
| Active Area (mm) | 216.96*135.6 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 6*6LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 10.1 inch 1280*800/WXGA TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
