Kingtech 3.99 inch 400*960 TFT display supply very stable. This 3.99 inch supports 3SPI+18RGB interface. In addition, the 3.99 inch 400*960 TFT display module brightness is 420 nits, and this 3.99 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
3.99 inchTFT display
400*960
Stable supply
All/Full/Wide/IPS viewing angle
3SPI+18RGB interface
420nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote

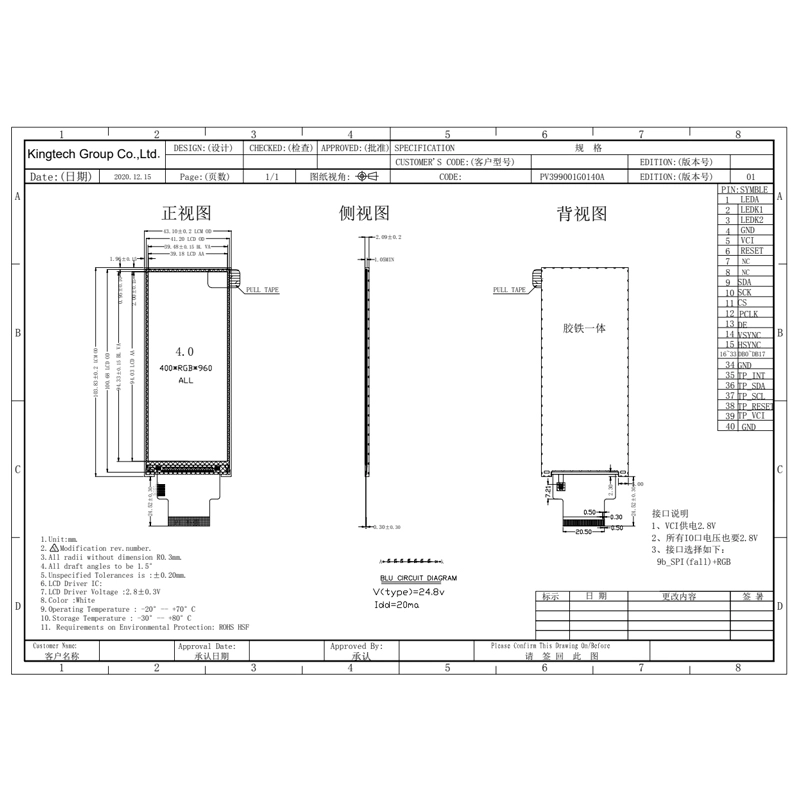

Documentation
| Item | 3.99 inch IPS 400*960 TFT display |
| Model No. | PV399001G0140A |
| Resolution | 400*960 |
| Outline Dimension (mm) | 43.10*103.83*2.09 |
| Active Area (mm) | 39.18*94.03 |
| Viewing Angle | All |
| Brightness | 420nits |
| Interface | 3SPI+18RGB |
| Backlight | 7*1LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
The 3.99 inch 400*960 TFT display module can be used for Medical, hand-held device, industrial or others.
