Kingtech 7inch 1024x600 50pin IPS RGB interface supply is very stable. This display supports RGB/TTL interface and HDMI convert board. The 7inch HDMI board can connect to the raspberry pi directly. The 7inch WSVGA module's lifetime is 50000h, and the brightness is 450nits. For the touch part, Kingtech can custom the touch according to the customer's requirements.

Features of 7-PV07026LZR50B

  • 1024x600/WSVGA

  • IPS/free/Wide/All/Full viewing angle

  • 50pin

  • RGB/TTL interface

  • Stable supply

  • HDMI board/Convert board

  • Can custom capacitive touch screen

Specification of 7-PV07026LZR50B

Item7inch 1024x600 50pin IPS RGB interface
Model NoPV07026LZR50B

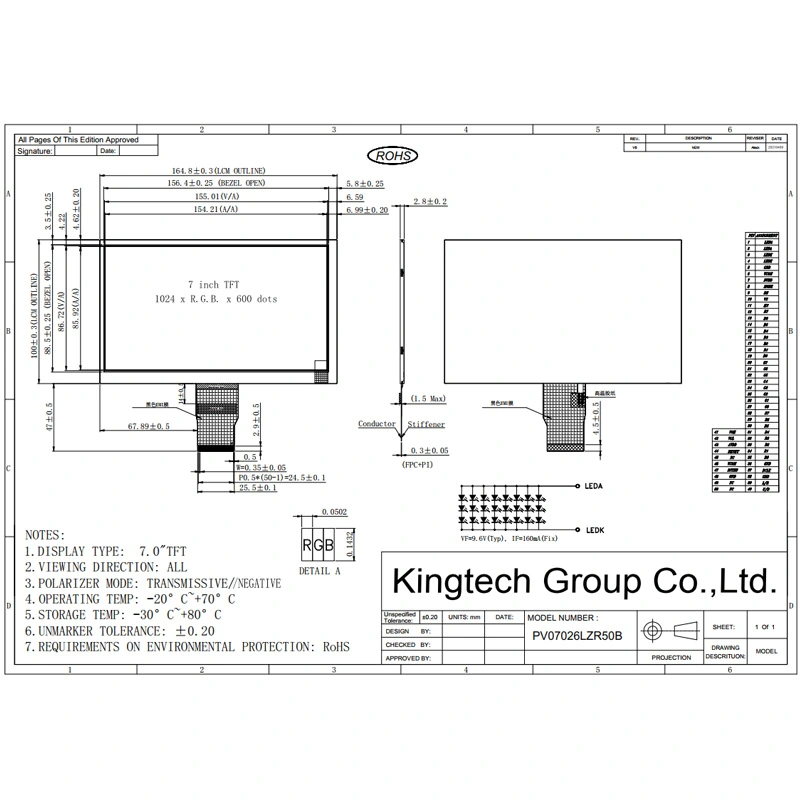

Outline Dimension164.90*100.10*2.8
Active Area(mm)154.21*85.92
Viewing AngleAll
LED life50000h
Display ModeTN / Transmissive / Normally Black
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
BoardConvert Board
TouchscreenCan custom capacitive touchscreen

Application of 7-PV07026LZR50B

  • The 7inch 1024x600 IPS 50pin RGB interface can be used for agricultural equipment, medical device, game console, and smart home, etc.
